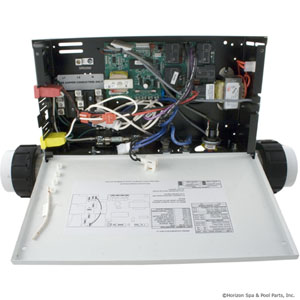

HS-V6500 - 1 Pump, Ozonator, Light, 5.5kW Heater, 120/240v, Eco-5 Top Side

Description

All units are shipped with control panel, retrofit panel adapter plate, Heater (if Available) 48” colored/molded mini plug equipment cords, 12v light harness with bulb, plastic drywell assembly, voltage conversion jumper wire, a detailed set of installation and operation documents, and our exclusive Three Year Limited Warranty.

THIS Horizon Series Control System Configuration:
Pump(s)
One
Blower Circuit
No
Circ Pump Capable
No
Versi-Heat
No
Heater Wattage
2" - 5.5 kW (@240v) Bottom Mount Flo-Thru Heater
HCGFCI
None
Top Side
Eco-5 (Sm. Rect.)

All Horizon Series Control Systems have an Ozone Circuit and a Light Circuit.

Features
All component circuits are 120/240v and are easily convertible in the field.
Detailed documentation provided with every unit - also available online!
Serialized Identification allows for fully transferable warranty!
Retrofit cord adapter kit available for easy install to 4-pin AMP applications!

Click here for Installation/Owners manual
