Gecko Spa Control System, S-Class
This S-Class spa control system controls an installation requiring 2 Pumps, an Air Blower, an Ozonator, a Circulation Pump, a Light and a Heater
|
This S-Class spa control system provides all the accessories needed for an installation requiring 2 Pumps, an Air Blower, an Ozonator, a Circulation Pump, a Light and a Heater
Product Description
Dimensions of control system:
Heater: 2” x 15”
Box Height 11-1/2”
Box length 14-1/4”
Box Width 3-3/8”

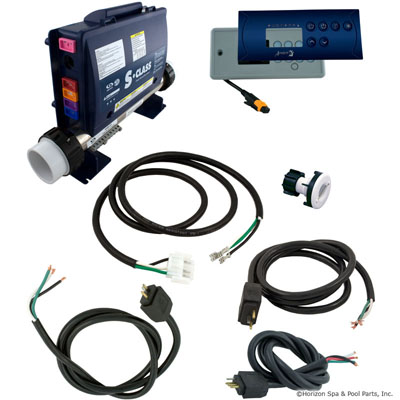

This S-Class spa control system provides all the accessories
needed for an installation requiring 2 pumps, an air
blower, an ozonator, a Circulation Pump, a light and a Heater
TSC-35/K-35 Control Panel, Large Rectangle, 6-Button, LED, with 10ft cord
TSC-35/K-35 Control Panel dimensions 3-1/4”x 7”
Control Panel Adapter Plate, Large
2- spd pump cord,120/240v, 48”, JJ –Mini, 14/4 AWG
1-spd pump cord, 120/240v, 48”, JJ-Mini, 14/3 AWG
Blower cord, 120/240v, 48”, JJ-Mini, 18/3 AWG
Ozone Cord,120/240v, 48”, JJ-Mini, 18/3 AWG
2”x 15” Flow Thru heater, 1.0/4.0kW 120/240v
Temperature Sensor thermowell, 3/8”
Operation and installation manual
Two-Year manufacturer’s limited return and repair warranty
Other features of this S-Class spa control include:
Circulation Pump capable
(Cord NOT Included)
Automatic time-out on all outputs
Sensor failure detection
Ozone management
Programmable filter cycles
High-limit protection
Pressure switch failure detection
Current limiting option
Smart Winter Mode
Temp. accuracy within ± 1°F
Filter cycle overtemp protection
This is a "Control System". Pumps, Lights, Blowers and Ozonators are Sold Separately.
