Pentair Clean & Clear Plus Cartridge Filter - Inground Pools

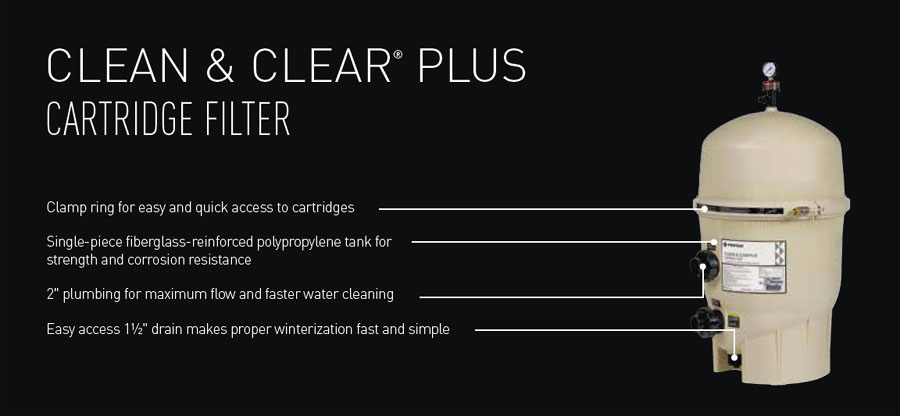

Pentair Clean & Clear Plus Cartridge Filter
|Fiberglass Reinforced Polypropylene Tank
Clean & Clear® Plus Cartridge Filters have a corrosion resistant injection molded filter tank featuring superior strength and reliability. The cartridge assembly uses four easy to clean, non-woven, polyester cartridges. Each filter is supplied with a bulkhead union set for easy installation.
•Large filter area for increased dirt capacity
•1-1/2 in., 100% drain clean-out port
•Continuous High Flow™ internal air relief*
•Base and plumbing kits now available
•Injection molded tank
•Balanced hydraulic flow
•Tension Control™ clamp
•100% factory tested
•Black bulkhead unions
•High Flow manual air relief valve
Note: Actual system flow will depend on plumbing size and other system components.
Note: Pentair Pool Products does not recommend flow rates above 150 GPM.
*Integrated Continuous High Flow internal air relief is operational only when there is unobstructed flow in the circulating system.
Operating Limits - maximum continual operating pressure of 50 PSI. Pool.spa (bather) applications, maximum operating water temperature (internal filter) 104 degrees F (40 degrees C)
