Spa Pump - Jacuzzi J, JCM, K, KM Series Pumps
Item 1 and Item 6A are no longer available for
the K and KM series.
Many of these J-Series parts have been used to replace components in the
Hercules Force One and Black Max pumps

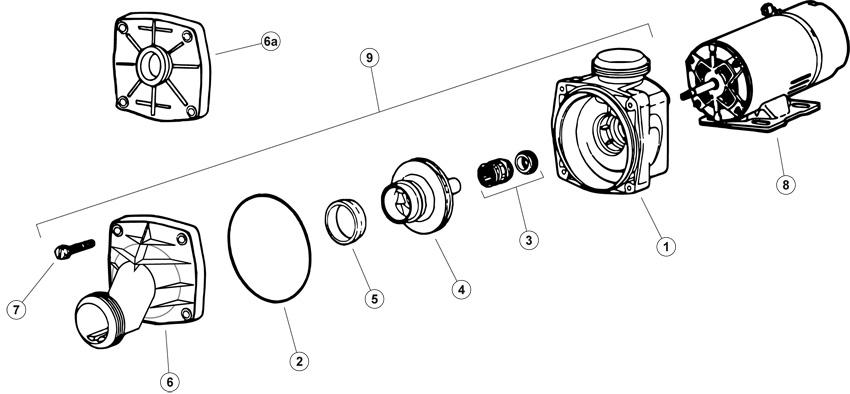

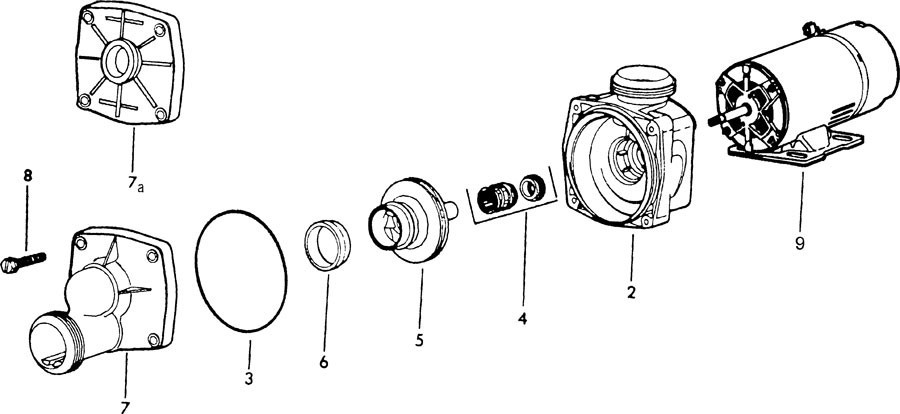

| Item | Key | Retail | Price | Quantity | |
| 35-105-1872 - Bolt, Jacuzzi J, R, RC, 14 x 1-1/4 Inch Hex-Head Machine Screw - 14126635R8 - 35-105-1872 | 7 | $5.70 | $2.85 |
|
|
| 35-105-1875 - Screw, Jacuzzi K, 1/4-20 x 7/8in - 14-1267-34-R - 35-105-1875 | 7 | $5.74 | $2.87 |
|
|
| 90-423-5357 - O-Ring, Buna-N, 5-1/2 Inch ID, 3/16 Inch Cross Section, Generic - 90-423-5357 | 2 | $6.56 | $3.28 |
|
|
| 35-423-1020 - Shaft Seal PS-200, 5/8 Inch Shaft Size - PS-200 - UPC - 852661157087 - 35-423-1020 | 3 | $18.99 | $9.99 |
|
|
| 35-105-1080 - Wear Ring, Jacuzzi, Various Pumps, Various HP - 10-1462-07 - 35-105-1080 | 5 | $32.78 | $24.40 |
|
|
| 35-105-1858 - Impeller, Carvin Jacuzzi J-Series, 0.75hp - 05-3862-06 - 35-105-1858 | 4 | $55.48 | $27.74 |
|
|
| 35-105-1860 - Impeller, Carvin Jacuzzi J-Series,1.0hp - 05-3863-05 - 35-105-1860 | 4 | $55.48 | $27.74 |
|
|
| 35-105-1864 - Impeller, Carvin Jacuzzi J-Series, 2.0hp - 05-3865-03 - 35-105-1864 | 4 | $72.08 | $36.04 |
|
|
| 35-105-1862 - Impeller, Carvin Jacuzzi J-Series, 1hp - 05-3864-04 - 35-105-1862 | 4 | $65.48 | $39.40 |
|
|
| 35-105-1851 - Volute, Carvin Jacuzzi J-Series SUB WITH PART 35-105-1853 - Replaced By Part 35-105-1853 - 02-1308-05RKIT - 35-105-1851 | 2 | $106.08 | $53.04 |
|
|
| 35-105-1853 - Volute, Carvin Jacuzzi J-Series - 02-1308-05RKIT - 35-105-1853 | 1 | $106.08 | $53.04 |
|
|
| 35-105-1870 - Faceplate, Jacuzzi JCM, 2-1/2 Inch , w/Suction - 03-0854-04 - 35-105-1870 | 6 | $112.32 | $56.16 |
|
|
| 35-105-1868 - Faceplate, Jacuzzi J, 2 Inch , w/Suction - 03-0651-09 - 35-105-1868 | 6 | $134.32 | $67.16 |
|
|
| 35-360-1100 - Impeller, Jacuzzi J/JCM/K/KM, 3.0hp - B913000 - 35-360-1100 | 4 | $178.64 | $89.32 |
|
|
| 35-105-1852 - Volute, Jacuzzi JCM, w/Face Plate - 02-1613-05 - 35-105-1852 | 1 | $187.78 | $93.89 |
|
|
| 34-105-1053 - Wet End, Jacuzzi J-Series, 1.0hp, Kit - 34-105-1053 | 9 | $266.10 | $133.05 |
|
|
| 34-105-1059 - Wet End, Jacuzzi J-Series, 2.0hp, Kit - 34-105-1059 | 9 | $276.12 | $138.06 |
|
|
| 34-105-1056 - Wet End, Jacuzzi J-Series, 1.5hp, Kit - 34-105-1056 | 9 | $276.12 | $158.06 |
|
|
| 35-126-1005 - AOS Motor 48FR 3/4HP Sgl Spd 115V - BN-24SS - UPC - 786674014351 - 35-126-1005 | 8 | $346.18 | $173.09 |
|
|
| 34-105-1050 - Wet End, Jacuzzi J-Series, .75hp, Kit - 34-105-1050 | 9 | $266.10 | $193.55 |
|
|
| 35-126-1010 - AOS Motor 48FR 1.0HP Sgl Spd 115V - BN-25VI - UPC - 663001362005 - 35-126-1010 | 8 | $389.34 | $194.67 |
|
|
| 35-126-1020 - AOS Motor 48FR 1.5HP Sgl Spd 115/230V - BN-35SS - UPC - 786674014382 - 35-126-1020 | 8 | $429.58 | $214.79 |
|
