Hayward Pro-Grid Vertical Grid DE Filter Permaglass XL

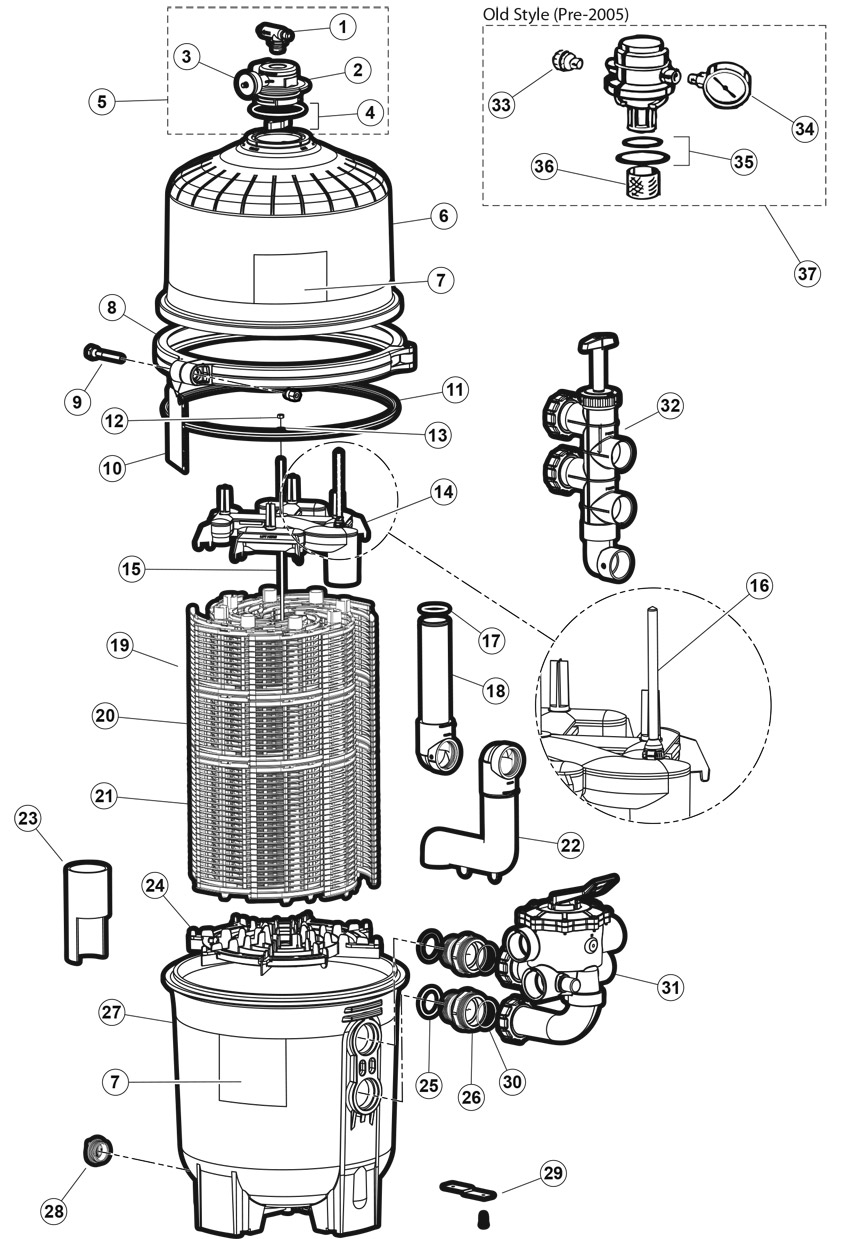

Note: In 2005, Hayward redesigned the air relief assembly. Keys 33, 34 and 35
are still available for replacement. If replacements are needed for keys 36 and
37, the entire air relief will need to be replaced. See key 5.
Note: Key #9 and #11 are compatible only with part #14-150-1358 clamp system for
Hayward Pro-Grid DE and Swim Clear cartridge filters
| Item | Key | Retail | Price | Quantity | |
| 90-423-5139 - O-Ring, Buna-N, 2-3/16 Inch ID, 3/32 Inch Cross Section, Generic - 90-423-5139 | 17 | $9.57 | $5.80 |
|
|
| 90-423-5333 - O-Ring, Buna-N, 2-1/2 Inch ID, 3/16 Inch Cross Section, Generic - 90-423-5333 | 25 | $9.57 | $5.80 |
|
|
| 90-423-5228 - O-Ring, Buna-N, 2-1/4 Inch ID, 1/8 Inch Cross Section, Generic - 90-423-5228 | 30 | $9.74 | $6.02 |
|
|
| 17-150-1352 - Drain Plug, Hayward, w/O-Ring - SP1022C - UPC - 610377045421 - 17-150-1352 | 28 | $10.71 | $6.66 |
|
|
| 14-150-1258 - Washer, Hayward Micro-Clear/Pro-Grid/S140T/S164T/S220 - ECX1109 - UPC - 610377024228 - 14-150-1258 | 13 | $11.06 | $7.16 |
|
|
| 14-150-1256 - Nut, Hayward Micro-Clear/Pro-Grid, 5/16 Inch -18 - ECX176865 - UPC - 610377024938 - 14-150-1256 | 12 | $11.73 | $7.68 |
|
|
| 14-176-1000 - Grid, Full, 12 Inch x 11 Inch , for 24 sqft, Pentair/Hayward - FC-9320 - UPC - 645544093202 - 14-176-1000 | 20 | $30.57 | $18.53 |
|
|
| 14-176-1025 - Grid, Partial, 12 Inch x 9-3/4 Inch , for 24 sqft, Pentair/Hayward - FC-9420 - 14-176-1025 | 21 | $31.47 | $19.07 |
|
|
| 17-150-1300 - Air Relief Valve, Hayward Star-Clear/Perflex/ASL/Easy-Clear (Pre-2005) - ECX1322A - UPC - 610377024808 - 17-150-1300 | 33 | $29.78 | $23.21 |
|
|
| 14-176-1005 - Grid, Full, 18 Inch x 11 Inch , for 36 sqft, Pent/Hayward/Jacuzzi/Zod - FC-9330 - UPC - 645544093301 - 14-176-1005 | 20 | $43.64 | $24.45 |
|
|
| 14-176-1030 - Grid, Partial, 18 Inch x 9-3/4 Inch , for 36 sqft, Pentair/Hayward/WW - FC-9430 - UPC - 645544094308 - 14-176-1030 | 21 | $44.62 | $25.04 |
|
|
| 17-150-1296 - Air Relief, Hayward Swimclear/XStream/Pro-Grid, w/O-Ring - CCX1000V - 17-150-1296 | 1 | $42.01 | $26.27 |
|
|
| 14-176-1010 - Grid, Full, 24 Inch x 11 Inch , for 48 sqft, Pent/Hayward/Jacuzzi/Zod - FC-9340 - UPC - 645544093400 - 14-176-1010 | 20 | $48.43 | $27.35 |
|
|
| 14-176-1035 - Grid, Partial, 24 Inch x 9-3/4 Inch ,for 48 sqft, Pent/Hayward/WW/Zod - FC-9440 - 14-176-1035 | 21 | $49.63 | $28.08 |
|
|
| 14-176-1040 - Grid, Partial, 30 Inch x 9-3/4 Inch ,for 60 sqft, Pent/Hayward/WW/Zod - FC-9450 - UPC - 645544094506 - 14-176-1040 | 21 | $55.11 | $31.40 |
|
|
| 14-176-1015 - Grid, Full, 30 Inch x 11 Inch , for 60 sqft, Pent/Hayward/Jacuzzi/Zod - FC-9350 - UPC - 645544093509 - 14-176-1015 | 20 | $55.24 | $31.48 |
|
|
| 14-176-1020 - Grid, Full, 36 Inch x 11 Inch , for 72 sqft, Pentair/Hayward/Jacuzzi - FC-9360 - 14-176-1020 | 20 | $67.16 | $37.70 |
|
|
| 14-176-1045 - Grid, Partial, 36 Inch x 9-3/4 Inch , for 72 sqft, Pentair/Hayward - FC-9460 - 14-176-1045 | 21 | $69.04 | $38.84 |
|
|
| 14-150-1352 - Pressure Gauge, 1/4 Inch mpt, 0-60psi, Back Mount, Adj Dial - ECX2712B1 - UPC - 610377809702 - 14-150-1352 | 3, 34 | $66.28 | $42.59 |
|
|
| 17-150-1304 - O-Ring, Hayward Swimclear/Pro-Grid, Air Relief, qty 2 - DEX2420Z8A - UPC - 610377619578 - 17-150-1304 | 35 | $74.84 | $52.15 |
|
|
| 17-150-1358 - Bulkhead Fitting, Hayward Swim Clear/Pro-Grid - DEX2420F - UPC - 610377619790 - 17-150-1358 | 26 | $78.72 | $55.13 |
|
|
| 14-150-1359 - Bolt Kit, Hayward Pro-Grid, For Clamp Ring - DEX2421J2 - UPC - 610377105989 - 14-150-1359 | 9 | $91.38 | $58.51 |
|
|
| 14-150-1355 - Label Pack(Warning & operation labels,hang tag, ties,manual) - DEX2420LA6PAK - UPC - 610377106009 - 14-150-1355 | 10 | $92.19 | $59.13 |
|
|
| 14-150-1334 - Grid Support, Hayward Pro-Grid - DEX2420T - UPC - 610377619851 - 14-150-1334 | 23 | $100.53 | $67.02 |
|
|
| 14-150-1666 - Retainer Rod, Hayward Pro-Grid DE7220 - DEX7200R - Hayward Pool Products - 14-150-1666 | 15 | $158.04 | $82.78 |
|
|
| 14-150-1308 - Grid Support, Hayward Micro-Clear/Pro-Clear - DEX2400H - UPC - 610377020961 - 14-150-1308 | 24 | $123.50 | $83.85 |
|
|
| 14-150-1259 - Retainer Rod, Hayward Micro-Clear/Pro-Grid, 16 Inch - DEX2400R - UPC - 610377021074 - 14-150-1259 | 15 | $126.29 | $84.02 |
|
|
| 14-150-1360 - Gasket,Tank Lid,Metal Reinforced,19-13/16 Inch ID, 20-11/16 Inch OD - DEX2422Z2 - UPC - 610377105996 - 14-150-1360 | 11 | $130.37 | $97.14 |
|
|
| 14-150-1260 - Retainer Rod, Hayward Micro-Clear/Pro-Grid, 22 Inch - DEX3600R - UPC - 610377021388 - 14-150-1260 | 15 | $149.90 | $99.47 |
|
|
| 14-150-1262 - Retainer Rod, Hayward Micro-Clear/Pro-Grid, 28 Inch - DEX4800R - UPC - 610377021500 - 14-150-1262 | 15 | $161.44 | $111.34 |
|
|
| 14-150-1320 - Outlet Elbow Assy, Hayward Pro-Grid, w/O-ring - DEX2420EA - UPC - 610377619707 - 14-150-1320 | 18 | $181.30 | $117.48 |
|
|
| 14-150-1322 - Outlet Elbow Assy, Hayward Pro-Grid, w/O-ring - DEX3620EA - UPC - 610377619714 - 14-150-1322 | 18 | $183.51 | $126.13 |
|
|
| 14-150-1264 - Retainer Rod, Hayward Micro-Clear/Pro-Grid, 34 Inch - DEX6000R - UPC - 610377021616 - 14-150-1264 | 15 | $189.59 | $130.61 |
|
|
| 14-150-1324 - Outlet Elbow Assy, Hayward Pro-Grid, w/O-ring - DEX4820EA - UPC - 610377619721 - 14-150-1324 | 18 | $199.58 | $131.91 |
|
|
| 14-150-1326 - Outlet Elbow Assy, Hayward Pro-Grid, w/O-ring - DEX6020EA - UPC - 610377619820 - 14-150-1326 | 18 | $206.04 | $144.93 |
|
|
| 14-150-1332 - Inlet Elbow, Hayward Pro-Grid - DEX2420GA - UPC - 610377619844 - 14-150-1332 | 22 | $210.59 | $148.43 |
|
|
| SP0710XR50 - Multiport Valve, Hayward SP0710XR50, 1-1/2 Inch , 6 Position - SP0710XR50 | 31 | $235.69 | $189.99 |
|
|
| 17-150-1308 - Air Relief Assy, Hayward Swim-Clear/Pro-Grid, Manual - DEX2420MAR2 - 17-150-1308 | 2 | $289.66 | $197.48 |
|
|
| SP0715XR50 - Multiport Valve, Hayward SP0715XR50, 2 Inch , 6 Position - SP0715XR50 | 31 | $369.98 | $269.99 |
|
|
| 14-150-1365 - Grid Assembly, Hayward Pro-Grid DE2420 - DEX2400DC - Hayward Pool Products - 14-150-1365 | 19 | $677.57 | $370.65 |
|
|
| 14-150-1358 - Clamp Ring Kit, (Clamp, Nut & Bolt, Warning Tag) - DEX2421JKIT - UPC - 610377105972 - 14-150-1358 | 8 | $843.99 | $536.55 |
|
|
| 14-150-1366 - Grid Assembly Complete, Hayward Pro-Grid DE3620 - DEX3600DC - 14-150-1366 | 19 | $949.66 | $629.40 |
|
|
| 14-150-1367 - Grid Assembly Complete, Hayward Pro-Grid DE4820 - DEX4800DC - UPC - 610377021470 - 14-150-1367 | 19 | $1,244.33 | $858.79 |
|
|
| 17-150-1312 - Tank Lid, Hayward C3020/C3025/DE3620, w/Clamp Ring - DEX3620BTC - UPC - 610377106870 - 17-150-1312 | 6 | $1,215.75 | $860.60 |
|
|
| 17-150-1314 - Filter Head, inc. Clamp System - DEX4820BTC - UPC - 610377106887 - 17-150-1314 | 6 | $1,325.00 | $938.68 |
|
|
| 14-150-1368 - Grid Assembly Complete, Hayward Pro-Grid DE6020 - DEX6000DC - UPC - 610377021586 - 14-150-1368 | 19 | $1,418.92 | $972.74 |
|
|
| 17-150-1316 - Tank Lid, Hayward C5020/C5025/DE6020, w/Clamp Ring - DEX6020BTC - UPC - 610377106894 - 17-150-1316 | 6 | $1,416.74 | $1,056.79 |
|
|
| 17-150-1318 - FILTER HEAD w/CLAMP SYSTEM - DEX7220BTC - UPC - 610377106900 - 17-150-1318 | 6 | $1,595.53 | $1,159.01 |
|
|
| 14-150-1369 - Grid Assembly Complete, Hayward Pro-Grid DE7220 - DEX7200DC - UPC - 610377021661 - 14-150-1369 | 19 | $1,711.40 | $1,248.03 |
|
