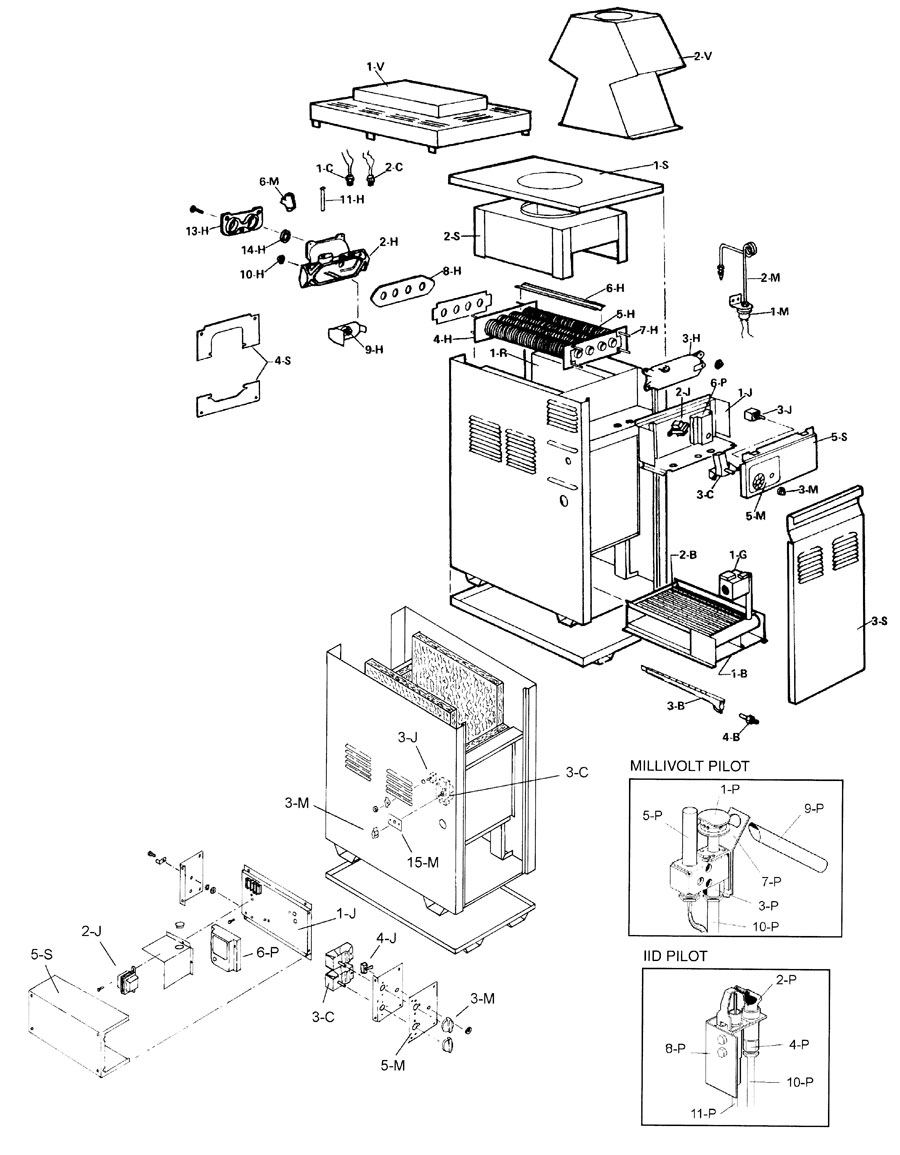

Swimming Pool Heater - Raypak Versa 153 (12/1/81-1/1/84) & 153A (1/1/84-2/15/87)
| Item | Key | Retail | Price | Quantity | |
| 47-197-1018 - Sensor Clip - 300203 - 47-197-1018 | 12H | $6.18 | $3.09 |
|
|
| 47-197-1030 - T-Stat Knob - 006885F - UPC - 840891004271 - 47-197-1030 | 3M | $13.60 | $6.80 |
|
|
| 47-197-1232 - VALVE-DRAIN 1/8 X STRAIGHT - 500719 - UPC - 840891030584 - 47-197-1232 | 10H | $14.78 | $7.39 |
|
|
| 47-197-1032 - T-Stat Knob Stop Raypak - 006886F - UPC - 840891005193 - 47-197-1032 | 4M | $18.36 | $9.18 |
|
|
| 47-197-1246 - PILOT ORIFICE N MV-KIT - 003901F - UPC - 840891007074 - 47-197-1246 | 3P | $19.54 | $9.77 |
|
|
| 47-197-1308 - PILOT ORIFICE N IID-KIT - 003903F - UPC - 840891007029 - 47-197-1308 | 4P | $19.54 | $9.77 |
|
|
| 47-197-1226 - GASKET HDR FLANGE 1-1/2-B/PAK - 800013B - UPC - 840891004530 - 47-197-1226 | 14H | $30.76 | $15.38 |
|
|
| 47-197-1502 - TUBE GROUP-LIGHTER - 52797 - 47-197-1502 | 9P | $34.32 | $17.16 |
|
|
| 47-197-1200 - BURNER - 301210 - 47-197-1200 | 3B | $39.10 | $19.55 |
|
|
| 47-197-1026 - Toggle Switch Raypak SPST - 650761 - 47-197-1026 | 3J | $39.10 | $19.55 |
|
|
| 47-319-1201 - 3925 Univ. Pressure Switch W/Brass Fittings - 3029P - 47-319-1201 | 1M | $52.46 | $26.23 |
|
|
| 47-197-1248 - PILOT ORIFICE P MV-KIT - 003902F - UPC - 840891008644 - 47-197-1248 | 3P | $54.14 | $27.07 |
|
|
| 47-197-1490 - GASKET HT EX 1 ID FLAT-B/PAK - 800075B - UPC - 840891002062 - 47-197-1490 | 8H | $57.02 | $28.51 |
|
|
| 47-197-1222 - BULB SENSOR WELL-KIT - 007211F - UPC - 840891004264 - 47-197-1222 | 11H | $57.08 | $28.54 |
|
|
| 47-197-1444 - THERMOSTAT AUTO RESET13-B/PAK - 600892B - UPC - 840891001393 - 47-197-1444 | 1C | $72.96 | $36.48 |
|
|
| 47-197-1446 - THERMOSTAT AUTO RESET14-B/PAK - 600893B - UPC - 840891001409 - 47-197-1446 | 2C | $72.96 | $36.48 |
|
|
| 47-197-1488 - CARR BOLT 136 151/153/155-KIT - 001056F - UPC - 840891008866 - 47-197-1488 | 7H | $82.16 | $41.08 |
|
|
| 47-197-1524 - PILOT BRKT IID 155C/133A-KIT - 006055F - 47-197-1524 | 8P | $101.68 | $50.84 |
|
|
| 47-197-1224 - FLANGE IN/OUT 1-1/2 POOL-KIT (53,55,153,155) - 002432F - UPC - 840891004202 - 47-197-1224 | 13H | $102.78 | $51.39 |
|
|
| 47-197-1250 - THERMOCOUPLE 35 750MV-B/PAK - 600019B - UPC - 840891002574 - 47-197-1250 | 5P | $114.88 | $57.44 |
|
|
| 47-197-1306 - PILOT 53-405 E10 NAT/PRO-KIT (Aft 6/1/00) - 002003F - UPC - 840891000907 - 47-197-1306 | 2P | $140.28 | $70.14 |
|
|
| 47-197-1244 - PILOT MV PRO-B/PAK - 600575B - UPC - 840891004394 - 47-197-1244 | 1P | $175.72 | $87.86 |
|
|
| 47-197-1242 - PILOT MV NAT-B/PAK - 600525B - UPC - 840891002260 - 47-197-1242 | 1P | $182.42 | $91.21 |
|
|
| 47-197-1492 - UNATHERM GOV 151/153/15-B/PAK - 053242B - UPC - 840891003571 - 47-197-1492 | 9H | $242.98 | $121.49 |
|
|
| 47-197-1022 - Sunne T-Stat, Kit For Raypak SUB WITH PART 47-197-1024 - Replaced By Part 47-197-1024 - 600827B - 47-197-1022 | 3C | $252.22 | $126.11 |
|
|
| 47-197-1388 - ELEC IGN W/O LOCK-B/PAK - 004817B - UPC - 840891000556 - 47-197-1388 | 6P | $532.72 | $266.36 |
|
|
| 47-197-1278 - GAS VALVE IID NAT POOL-KIT - 003900F - UPC - 840891000310 - 47-197-1278 | 1G | $536.92 | $268.46 |
|
|
| 47-197-1210 - GAS VALVE MV NAT POOL-KIT - 003898F - UPC - 840891000587 - 47-197-1210 | 1G | $577.84 | $288.92 |
|
|
| 47-197-1212 - GAS VALVE MV PRO POOL-KIT - 003899F - UPC - 840891000570 - 47-197-1212 | 1G | $577.84 | $288.92 |
|
