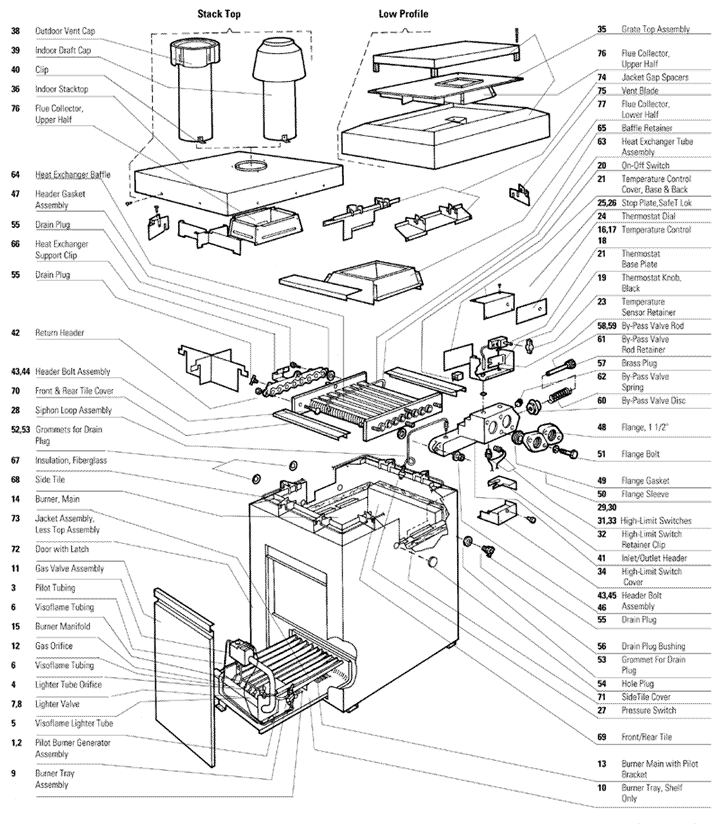

Teledyne MARK V - DR-175
| Item | Key | Retail | Price | Quantity | |
| 47-295-1124 - Retainer Bracket - 10447300 - 47-295-1124 | 23 | $13.44 | $6.72 |
|
|
| 47-295-1522 - Gas Orifice, Natural, 0K to 3K Ft. - L0032200 - UPC - 052337005883 - 47-295-1522 | 12 | $13.54 | $6.77 |
|
|
| 47-295-1524 - Gas Orifice, LP, 0K to 5K Ft. - L0032900 - UPC - 788379739515 - 47-295-1524 | 12 | $13.54 | $6.77 |
|
|
| 47-295-1120 - Thermostat Sleeve - 10444900 - UPC - 523370000864 - 47-295-1120 | 17 | $13.54 | $6.77 |
|
|
| 47-295-1460 - High-Limit Switch Wire Harness SUB WITH PART 47-295-1468 - Replaced By Part 47-295-1468 - S0098900 - 47-295-1460 | 33 | $13.80 | $6.90 |
|
|
| 47-295-1624 - Pipe Plug ? Inch NPT - P0026800 - UPC - 052337010856 - 47-295-1624 | 55 | $16.36 | $8.18 |
|
|
| 47-295-1502 - By Pass Spring, Blue, 325 btu - S0061200 - UPC - 052337025850 - 47-295-1502 | 62 | $34.18 | $17.09 |
|
|
| 47-295-1498 - By Pass Spring, White, 175 btu - S0061400 - UPC - 052337025874 - 47-295-1498 | 62 | $34.18 | $17.09 |
|
|
| 47-295-1436 - Pilot Tubing - 1/4 Inch - 1/4 Inch Pilot Tubing - Newer Models (84' - 89' was 1/8 Inch and is no longer available) - R0037000 - UPC - 052337012034 - 47-295-1436 | 3 | $41.12 | $20.56 |
|
|
| 47-295-1488 - Header Gasket (18 Ea) - R0050800 - UPC - 523370121958 - 47-295-1488 | 47 | $54.08 | $27.04 |
|
|
| R0040400 - Relief Valve Laars - R0040400 | - | $66.08 | $33.04 |
|
|
| 47-295-1478 - Header Bolt Kit - R0057000 - UPC - 052337012287 - 47-295-1478 | 43 | $70.60 | $35.30 |
|
|
| 47-295-1270 - High-limit Switch, 150? F - R0023000 - UPC - 052337011945 - 47-295-1270 | 31 | $78.34 | $39.17 |
|
|
| 47-295-1654 - On-Off Switch - R0094100 - 47-295-1654 | 20 | $80.20 | $40.10 |
|
|
| 47-295-1268 - High-limit Switch 135? F - R0022700 - UPC - 052337011938 - 47-295-1268 | 30 | $80.88 | $40.44 |
|
|
| 47-295-1632 - Pilot Generator (Repl G/C Assemblies) - R0025500 - UPC - 052337011969 - 47-295-1632 | 2 | $136.62 | $68.31 |
|
|
| 47-295-1454 - Siphon Loop Assembly Kit - R0057800 - UPC - 052337012324 - 47-295-1454 | 28 | $140.84 | $70.42 |
|
|
| 47-295-1266 - High-limit Switch Assembly - R0023200 - UPC - 052337011952 - 47-295-1266 | 29 | $149.38 | $74.69 |
|
|
| R0027500 - PILOT GENERATOR ASSEMBLY NG - R0027500 | 1 | $167.26 | $83.63 |
|
|
| 10561401 - Indoor Drafthood 125 - 10561401 | 39 | $179.30 | $89.65 |
|
|
| 10561403 - 250 Indoor Drafthood - 10561403 | 39 | $235.48 | $117.74 |
|
|
| 47-295-1112 - Mechanical Temperature Control Replacement Kit - R0318800 - UPC - 052337014502 - 47-295-1112 | 16 | $347.80 | $173.90 |
|
|
| R0056700 - Rear Header S052 Laars - R0056700 | 42 | $381.40 | $190.70 |
|
|
| 47-104-0714 - Gas Valve Assembly, Lpg R0027800 - 47-104-0714 | 11 | $524.99 | $296.95 |
|
|
| R0057200 - Front Header S673 Laars - R0057200 | 41 | $692.62 | $346.31 |
|
|
| 10308201 - Heat Exchanger Tube Assembly 125 - 10308201 | 63 | $804.72 | $402.36 |
|
|
| 10308202 - Heat Exchanger Tube Assembly 175 - 10308202 | 63 | $993.26 | $496.63 |
|
|
| 10308204 - Heat Exchanger Tube Assembly 325 - 10308204 | 63 | $1,407.12 | $703.56 |
|
|
| 10308205 - Heat Exchanger Tube Assembly 400 - 10308205 | 63 | $1,709.50 | $854.75 |
|
