Raypak COMMERCIAL - 514

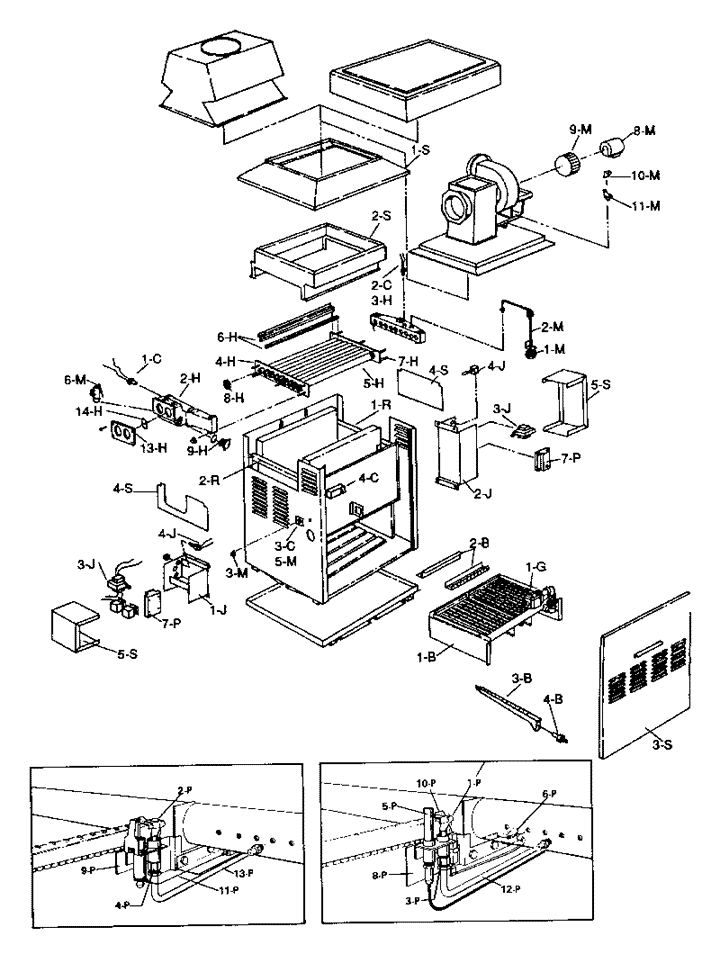

| Item | Key | Retail | Price | Quantity | |
| 47-197-1018 - Sensor Clip - 300203 - 47-197-1018 | 12-H | $6.18 | $3.09 |
|
|
| 350078 - Orifice-Burner 49 - 350078 | 4-B | $10.44 | $5.22 |
|
|
| 47-197-1032 - T-Stat Knob Stop Raypak - 006886F - UPC - 840891005193 - 47-197-1032 | 4-M | $18.36 | $9.18 |
|
|
| 303612 - Mounting Bracket Standing - 303612 | 8-P | $22.52 | $11.26 |
|
|
| 304666 - Bracket-Pilot Mtg Series Viii - 304666 | 9-P | $22.52 | $11.26 |
|
|
| 47-197-1618 - SWITCH-TOGGLE SPDT 15A/10A BL - 650760 - 47-197-1618 | - | $34.32 | $17.16 |
|
|
| 47-197-1436 - GASKET HDR FLANGE 2 Inch (Pkg of 2) - 800080B - UPC - 840891001430 - 47-197-1436 | 14-H | $35.48 | $17.74 |
|
|
| 47-197-1026 - Toggle Switch Raypak SPST - 650761 - 47-197-1026 | 4-J | $39.10 | $19.55 |
|
|
| 47-197-1200 - BURNER - 301210 - 47-197-1200 | 3-B | $39.10 | $19.55 |
|
|
| 003273F - Kit-Press Sw Tube 334-182 - 003273F | 2-M | $64.82 | $32.41 |
|
|
| 47-197-1444 - THERMOSTAT AUTO RESET13-B/PAK - 600892B - UPC - 840891001393 - 47-197-1444 | 1-C | $72.96 | $36.48 |
|
|
| 47-197-1446 - THERMOSTAT AUTO RESET14-B/PAK - 600893B - UPC - 840891001409 - 47-197-1446 | 2-C | $72.96 | $36.48 |
|
|
| 47-197-1318 - PILOT TUBE 34 Inch -KIT - 004078F - UPC - 840891003878 - 47-197-1318 | 12-P | $81.76 | $40.88 |
|
|
| 001616F - Kit-Ht Ex Baffle 334 - 001616F | 6-H | $92.00 | $46.00 |
|
|
| 001617F - Kit-Ht Ex Baffle 404 - 001617F | 6-H | $93.22 | $46.61 |
|
|
| 001618F - Kit-Ht Ex Baffle 514 - 001618F | 6-H | $101.78 | $50.89 |
|
|
| 062237B - PRES. SWITCH 151/153/155A-403B - 062237B - 062237B | 1-M | $106.40 | $53.20 |
|
|
| 47-197-1250 - THERMOCOUPLE 35 750MV-B/PAK - 600019B - UPC - 840891002574 - 47-197-1250 | 5-P | $114.88 | $57.44 |
|
|
| 001643F - IGNITOR STAND - 001643F | 6-P | $115.72 | $57.86 |
|
|
| 001619F - Kit-Ht Ex Baffle 624 - 001619F | 6-H | $124.30 | $62.15 |
|
|
| 002234F - Kit-Pilot 334-1826 E10 Na - 002234F | 2-P | $124.98 | $62.49 |
|
|
| 002412F - Kit-Pilot 334-404 Std Nat - 002412F | - | $126.72 | $63.36 |
|
|
| 002477F - Kit-Flange In/Out 2 Pool - 002477F | 13-H | $128.44 | $64.22 |
|
|
| 001875F - Kit-Brnr Sp/Hldown 330/334 - 001875F | 2-B | $129.16 | $64.58 |
|
|
| 001620F - Kit-Ht Ex Baffle 724 - 001620F | 6-H | $137.74 | $68.87 |
|
|
| 001621F - Kit-Ht Ex Baffle 824 - 001621F | 6-H | $138.96 | $69.48 |
|
|
| 001627F - Kit-Ref Retainer 199-825 - 001627F | 2-R | $140.18 | $70.09 |
|
|
| 001876F - Kit-Brnr Sp/Hldown 400/404 - 001876F | 2-B | $140.18 | $70.09 |
|
|
| 001877F - Kit-Brnr Sp/Hldown 510/514 - 001877F | 2-B | $148.74 | $74.37 |
|
|
| 001878F - Kit-Brnr Sp/Hldown 625/624 - 001878F | 2-B | $174.92 | $87.46 |
|
|
| 002417F - Kit-Jacket Top 330/334 - 002417F | 1-S | $184.72 | $92.36 |
|
|
| 002379F - Kit-Ht Ex Tube 334 - 002379F | 5-H | $185.94 | $92.97 |
|
|
| 002418F - Kit-Jacket Top 400/404 - 002418F | 1-S | $188.38 | $94.19 |
|
|
| 002235F - Kit-Pilot 334-1826 E11 Pr - 002235F | - | $193.38 | $96.69 |
|
|
| 001879F - Kit-Brnr Sp/Hldown 725/724 - 001879F | 2-B | $194.48 | $97.24 |
|
|
| 002668F - Kit-J Box Sheetmetal 334- - 002668F | 5-S | $199.20 | $99.60 |
|
|
| 001880F - Kit-Brnr Sp/Hldown 825/824 - 001880F | 2-B | $205.50 | $102.75 |
|
|
| 002419F - Kit-Jacket Top 510/514 - 002419F | 1-S | $209.18 | $104.59 |
|
|
| 002420F - Kit-Jacket Top 625/624 - 002420F | 1-S | $210.40 | $105.20 |
|
|
| 002380F - Kit-Ht Ex Tube 404 - 002380F | 5-H | $210.40 | $105.20 |
|
|
| 001834F - Kit-Door 330/334 - 001834F | 3-S | $211.64 | $105.82 |
|
|
| 001835F - Kit-Door 400/404 - 001835F | 3-S | $218.46 | $109.23 |
|
|
| 002413F - Kit-Pilot 334-404 Std Pro - 002413F | - | $234.14 | $117.07 |
|
|
| 002480F - Kit-Pilot 334-404 Std Nat - 002480F | 1-P | $234.14 | $117.07 |
|
|
| 002481F - Kit-Pilot 334-404 Std Pro - 002481F | 1P | $234.14 | $117.07 |
|
|
| 001837F - Kit-Door 625/624 - 001837F | 3-S | $242.42 | $121.21 |
|
|
| 002421F - Kit-Jacket Top 725/724 - 002421F | 1-S | $250.04 | $125.02 |
|
|
| 002475F - Unithern Govenor Raypak - 002475F | 9-H | $251.34 | $125.67 |
|
|
| 001836F - Kit-Door 510/514 - 001836F | 3-S | $256.16 | $128.08 |
|
|
| 47-197-1282 - THERMOSTAT 151 Cal III & Spa Pak, - 600827B - UPC - 840891000877 - 47-197-1282 | 3-C | $260.68 | $130.34 |
|
|
| 002381F - Kit-Ht Ex Tube 514 - 002381F | 5-H | $262.26 | $131.13 |
|
|
| 001838F - Kit-Door 725/724 - 001838F | 3-S | $269.60 | $134.80 |
|
|
| 002422F - Kit-Jacket Top 825/824 - 002422F | 1-S | $276.94 | $138.47 |
|
|
| 001839F - Kit-Door 825/824 - 001839F | 3-S | $278.16 | $139.08 |
|
|
| 002382F - Kit-Ht Ex Tube 624 - 002382F | 5-H | $295.30 | $147.65 |
|
|
| 47-197-1390 - ELEC IGN W/LOCK-B/PAK - 004818B - UPC - 840891000976 - 47-197-1390 | - | $351.24 | $175.62 |
|
|
| 002383F - Kit-Ht Ex Tube 724 - 002383F | 5-H | $370.64 | $185.32 |
|
|
| 003569F - Kit-Gas Valve Comb Step P 3/4 - 003569F | - | $384.10 | $192.05 |
|
|
| 004868F - Kit-Gas Valve Comb Nat 3/4 - 004868F | 1G | $397.56 | $198.78 |
|
|
| 002384F - Kit-Ht Ex Tube 824 - 002384F | 5-H | $404.90 | $202.45 |
|
|
| 005503F - Kit-Pc Board Induced Draf - 005503F | 10-M | $443.90 | $221.95 |
|
|
| 002423F - Kit-Flue Collector 330/334 - 002423F | 2-S | $509.62 | $254.81 |
|
|
| 002424F - Kit-Flue Collector 400/404 - 002424F | 2-S | $521.84 | $260.92 |
|
|
| 47-197-1388 - ELEC IGN W/O LOCK-B/PAK - 004817B - UPC - 840891000556 - 47-197-1388 | 7-P | $532.72 | $266.36 |
|
|
| 47-197-1278 - GAS VALVE IID NAT POOL-KIT - 003900F - UPC - 840891000310 - 47-197-1278 | - | $536.92 | $268.46 |
|
|
| 002425F - Kit-Flue Collector 510/514 - 002425F | 2-S | $537.74 | $268.87 |
|
|
| 47-197-1368 - GAS VALVE IID PRO POOL-KIT - 004306F - UPC - 840891000631 - 47-197-1368 | - | $546.84 | $273.42 |
|
|
| 002426F - Kit-Flue Collector 625/624 - 002426F | 2-S | $564.66 | $282.33 |
|
|
| 002427F - Kit-Flue Collector 725/724 - 002427F | 2-S | $576.88 | $288.44 |
|
|
| 47-197-1210 - GAS VALVE MV NAT POOL-KIT - 003898F - UPC - 840891000587 - 47-197-1210 | 1-G | $577.84 | $288.92 |
|
|
| 47-197-1212 - GAS VALVE MV PRO POOL-KIT - 003899F - UPC - 840891000570 - 47-197-1212 | - | $577.84 | $288.92 |
|
|
| 002428F - Kit-Flue Collector 825/824 - 002428F | 2-S | $594.00 | $297.00 |
|
|
| 002472F - INLET/OUTLET - 002472F | 2-H | $600.12 | $300.06 |
|
|
| 004877F - Kit-Gas Valve Comb Nat 1 - 004877F | - | $668.38 | $334.19 |
|
|
| 004878F - Kit-Gas Valve Comb Pro 1 - 004878F | - | $668.38 | $334.19 |
|
|
| 001863F - Kit-Tray/Man 330/334 W/O B - 001863F | - | $670.24 | $335.12 |
|
|
| 001864F - Kit-Tray/Man 400/404 W/O B - 001864F | - | $694.04 | $347.02 |
|
|
| 002648F - Kit-J Box 334-824 Iid Nat Whg - 002648F | 1-J | $838.16 | $419.08 |
|
|
| 002653F - Kit-J Box 334-824 Iid Pro Whg - 002653F | - | $838.16 | $419.08 |
|
|
| 002479F - Kit-J Box 334-824 Whg Iid Lock - 002479F | 2-J | $879.74 | $439.87 |
|
|
| 001101F - Kit-Stackless Top 334/330 - 001101F | 1-V | $1,027.04 | $513.52 |
|
|
| 001102F - Kit-Stackless Top 404/400 - 001102F | 1-V | $1,052.70 | $526.35 |
|
|
| 001851F - Kit-Tray/Man 330/334 Brnr - 001851F | 1-B | $1,188.98 | $594.49 |
|
|
| 001852F - Kit-Tray/Man 400/404 Brnr - 001852F | 1-B | $1,188.98 | $594.49 |
|
|
| 001865F - Kit-Tray/Man 510/514 S W/O B - 001865F | - | $1,316.96 | $658.48 |
|
|
| 001869F - Kit-Tray/Man 725/724 S W/O B - 001869F | - | $1,327.96 | $663.98 |
|
|
| 001871F - Kit-Tray/Man 825/824 S W/O B - 001871F | - | $1,353.64 | $676.82 |
|
|
| 002473F - Kit-Hdr In/Out 334-824 Pool Br - 002473F | 2-H | $1,425.82 | $712.91 |
|
|
| 001853F - Kit-Tray/Man 510/514 S Brnr - 001853F | 1-B | $1,739.94 | $869.97 |
|
|
| 001855F - Kit-Tray/Man 625/624 S Brnr - 001855F | 1-B | $1,871.58 | $935.79 |
|
|
| 001857F - Kit-Tray/Man 725/724 S Brnr - 001857F | 1-B | $1,940.08 | $970.04 |
|
|
| 003161F - Kit-Tube Bundle 334 Pool - 003161F | 4-H | $2,113.76 | $1,056.88 |
|
|
| 003162F - Kit-Tube Bundle 404 Pool - 003162F | 4-H | $2,214.08 | $1,107.04 |
|
|
| 003163F - Kit-Tube Bundle 514 Pool - 003163F | 4-H | $2,475.84 | $1,237.92 |
|
|
| 003164F - Kit-Tube Bundle 624 Pool - 003164F | 4-H | $2,661.76 | $1,330.88 |
|
|
| 003165F - Kit-Tube Bundle 724 Pool - 003165F | 4-H | $3,081.32 | $1,540.66 |
|
|
| 002466F - Kit-Ht Ex 334 Br Wg - 002466F | 1-H | $3,721.04 | $1,860.52 |
|
|
| 002467F - Kit-Ht Ex 404 Br Wg - 002467F | 1-H | $3,815.22 | $1,907.61 |
|
|
| 002468F - Kit-Ht Ex 514 Br Wg - 002468F | 1-H | $4,486.80 | $2,243.40 |
|
|
| 002469F - Kit-Ht Ex 624 Br Wg - 002469F | 1-H | $4,673.94 | $2,336.97 |
|
|
| 002470F - Kit-Ht Ex 724 Br Wg - 002470F | 1-H | $4,880.66 | $2,440.33 |
|
|
| 002471F - Kit-Ht Ex 824 Br Wg - 002471F | 1H | $5,021.32 | $2,510.66 |
|
