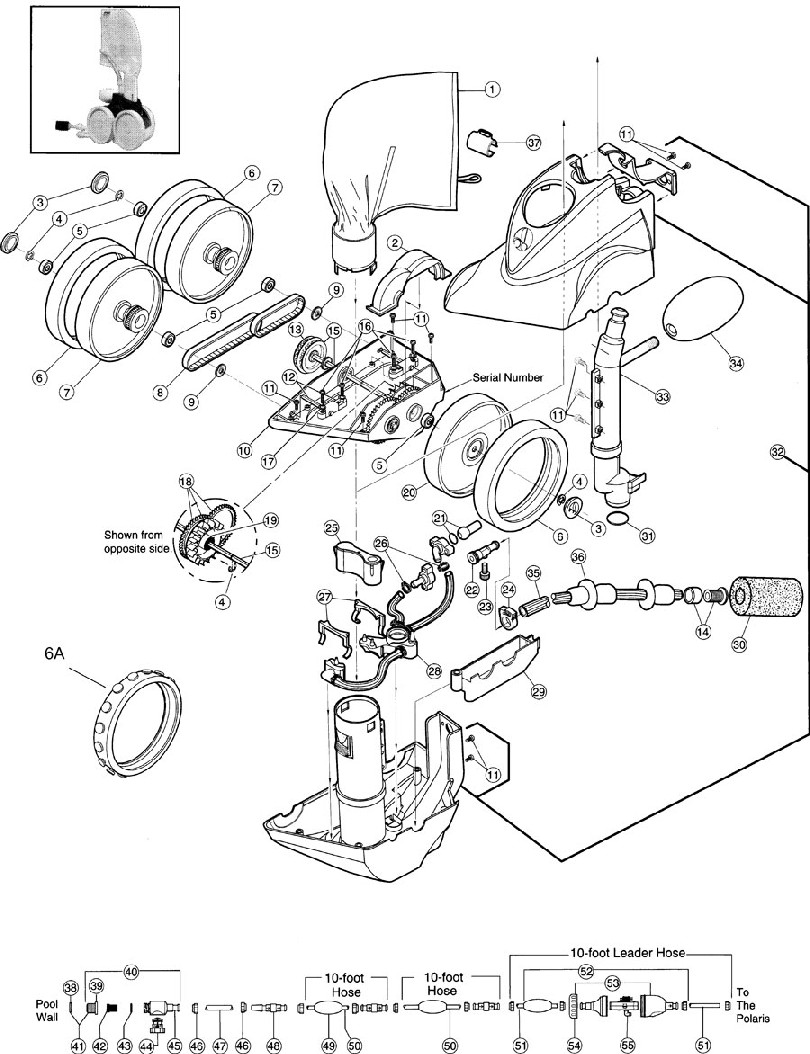

Polaris 380 & 380 Black Max Pool Cleaner Parts
| Item | Key | Retail | Price | Quantity | |
| 87-100-1634 - Hub Cap (380/360/340)(3 pack) - 9-100-1114 - UPC - 738919000391 - 87-100-1634 | 3 | $6.06 | $3.03 |
|
|
| 87-100-1525 - 3/8 Inch Tubing Clamp (Offline Chlorinator) SUB WITH PART 55-270-1510 - Replaced By Part 55-270-1510 - B15 - 87-100-1525 | 24 | $6.40 | $3.20 |
|
|
| 87-100-1624 - Jet Retainer (380/360) (2 Pack) - 9-100-7009 - 87-100-1624 | 27 | $12.28 | $6.14 |
|
|
| 87-100-1626 - Shield, Bearing (380/360/340) - 9-100-7011 - 87-100-1626 | 9 | $12.48 | $6.24 |
|
|
| 87-100-1547 - Screw, 10-32x3/8 Inch SS Pan Head (380/360/280/180)(10 Pack) - C40 - UPC - 738919000261 - 87-100-1547 | $12.64 | $6.32 |
|
||
| 87-100-1618 - Screw, 8-32 x 3/4 Inch SS Pan Head (380/360/340) - 9-100-5115 - UPC - 738919000506 - 87-100-1618 | 16 | $12.86 | $6.43 |
|
|
| 87-100-1524 - Wear Rings (380/360/280/180) - B10 - UPC - 738919000223 - 87-100-1524 | 36 | $13.12 | $6.56 |
|
|
| 87-100-1513 - Sweep Hose Scrubber (380/360/280/180) - 9-100-3105 - UPC - 738919000483 - 87-100-1513 | 30 | $13.70 | $6.85 |
|
|
| 87-100-1616 - E-clip, Stainless Steel (380/360/340) - 9-100-5107 - 87-100-1616 | 4 | $13.70 | $6.85 |
|
|
| 87-100-1617 - E-clip, Stainless Steel (380/360/340) SUB WITH PART 87-100-1616 - Replaced By Part 87-100-1616 - 9-100-5110 - 87-100-1617 | $13.70 | $6.85 |
|
||
| 87-100-1606 - Belt Divider, Transfer Pulley (380/360) - 9-100-1010 - 87-100-1606 | 13 | $13.88 | $6.94 |
|
|
| 87-100-1529 - Orifice Tip W/Orifice Tip Guard (380/280/180) - B25 - UPC - 738919000803 - 87-100-1529 | 14 | $13.88 | $6.94 |
|
|
| 87-100-1502 - UWF Restrictor Disks, Red and Blue (380/280/180) - 10-112-00 - UPC - 738919006645 - 87-100-1502 | 38 | $13.88 | $6.94 |
|
|
| 87-100-1619 - Screw, 8-32 x 1/2 Inch SS Pan Head (380/360) - 9-100-5125 - UPC - 738919012950 - 87-100-1619 | 11 | $13.98 | $6.99 |
|
|
| 87-100-1517 - Hose Clamp, Water Management Sys(380/360/280/180) - 9-100-7170 - UPC - 738919000117 - 87-100-1517 | 26 | $14.84 | $7.42 |
|
|
| 87-100-1580 - O-ring Kit, Back-up Valve (380/360/280/180) - G58 - UPC - 738919007130 - 87-100-1580 | $14.86 | $7.43 |
|
||
| 87-100-1641 - Nut, Feed Hose, Gray (380/280/180) - D15 - UPC - 738919000292 - 87-100-1641 | 46 | $15.08 | $7.54 |
|
|
| 87-100-1506 - Universal Wall Fitting (UWF) - 6-500-00 - UPC - 738919000629 - 87-100-1506 | 39 | $15.50 | $7.75 |
|
|
| 87-100-1614 - Housing, Turbine Upper (380/360) - 9-100-1152 - UPC - 738919000452 - 87-100-1614 | 2 | $15.96 | $7.98 |
|
|
| 87-100-1615 - Housing, Turbine Lower (380/360) - 9-100-1155 - UPC - 738919000469 - 87-100-1615 | 29 | $15.96 | $7.98 |
|
|
| 87-100-1623 - Sweep Hose Barb Complete (380/360) - 9-100-7008 - UPC - 738919000551 - 87-100-1623 | 22 | $16.24 | $8.12 |
|
|
| 87-100-1503 - Adjustable Plug, UWF (All pressure-side products) - 11-203-00 - UPC - 738919000674 - 87-100-1503 | $16.86 | $8.43 |
|
||
| 87-100-1538 - Thrust Jet Kit (380/360/280/180) - C131 - UPC - 073891900027 - 87-100-1538 | 21 | $18.08 | $9.04 |
|
|
| 87-100-1563 - Float, Feed Hose (380/280/180) - D10 - 87-100-1563 | 49 | $18.90 | $9.45 |
|
|
| 87-100-1521 - Float, Head (380/360/280/180) - A20 - 87-100-1521 | 34 | $18.96 | $9.48 |
|
|
| 87-100-1507 - Filter Screen, UWF/QD - 6-504-00 - 87-100-1507 | 42 | $30.68 | $15.34 |
|
|
| 35-100-1042 - SoftubeÖ Quick Connect - P133 - 35-100-1042 | $30.76 | $15.38 |
|
||
| 87-100-1579 - Collar, Back-up Valve (380/360/280/180) - G57 - UPC - 7389190069596 - 87-100-1579 | 54 | $31.34 | $15.67 |
|
|
| 87-100-1645 - Quick Disconnect, UWF (380/280/180) - D29 - UPC - 738919000612 - 87-100-1645 | 45 | $31.38 | $15.69 |
|
|
| 87-100-1501 - UWF Restrictor Kit (380/280/180) - 10-108-00 - UPC - 738919003637 - 87-100-1501 | 41 | $31.38 | $15.69 |
|
|
| 87-100-1609 - Ball Bearing (380/360/340) - 9-100-1108 - UPC - 738919000384 - 87-100-1609 | 5 | $31.76 | $15.88 |
|
|
| 87-100-1573 - Disposable Sand/Silt Bags(4 pack)(380/280/180) - G45 - UPC - 738919001268 - 87-100-1573 | 1 | $32.24 | $16.12 |
|
|
| 87-100-1636 - Wheel, Single-side (380/360) - 9-100-1116 - UPC - 738919000407 - 87-100-1636 | 20 | $32.86 | $16.43 |
|
|
| 87-100-1519 - Pressure Relief Valve, Black (380/280/180) - 9-100-9002 - UPC - 738919000667 - 87-100-1519 | 44 | $33.20 | $16.60 |
|
|
| 87-100-1520 - Street Ell (380/280/180/360) - 9-100-9003 - UPC - 738919003361 - 87-100-1520 | $33.28 | $16.64 |
|
||
| 87-100-1583 - Coupling, 1-1/2 Inch NPTF x 3/4 Inch NPTM (380/280/180) - G9 - 87-100-1583 | $33.28 | $16.64 |
|
||
| 87-100-1533 - Tire, MaxTrax« (380/360/280/180) - C10 - UPC - 738919000254 - 87-100-1533 | 6 | $33.84 | $16.92 |
|
|
| 87-100-1633 - Wheel, Double-side (380/360) (Pkg of 1) - 9-100-1008 - 87-100-1633 | 7 | $35.06 | $17.53 |
|
|
| 87-100-1608 - Turbine Wheel with Bearing (380/360) - 9-100-1103 - 87-100-1608 | 19 | $36.54 | $18.27 |
|
|
| 87-100-1643 - Swivel, Ball Bearing (380/280/180) - D20 - UPC - 738919000308 - 87-100-1643 | 48 | $37.58 | $18.79 |
|
|
| 87-100-1638 - Feed Pipe/Timer Blank Assembly (380) - 9-100-7003 - UPC - 738919003552 - 87-100-1638 | 33 | $37.70 | $18.85 |
|
|
| 87-100-1537 - Tire, PosiTraxÖ (fiberglass and tile pools only) - C13 - UPC - 738919002982 - 87-100-1537 | 6A | $41.82 | $20.91 |
|
|
| 87-100-1612 - Drive Train Gear Kit w/Turbine Bearing(ser513564)(380/360) - 9-100-1132 - UPC - 738919000414 - 87-100-1612 | 18 | $43.96 | $21.98 |
|
|
| 87-100-1527 - Weight, Sweep Hose (380/360/280/180) - B2 - 87-100-1527 | $44.58 | $22.29 |
|
||
| 87-100-1604 - Transfer Pulley/Drive Shaft Assembly (380/360) - 9-100-1007 - UPC - 738919000339 - 87-100-1604 | 15 | $46.08 | $23.04 |
|
|
| 87-100-1613 - Axle Block Kit (Front and Rear) (380/360) - 9-100-1139 - UPC - 738919000421 - 87-100-1613 | 12 | $46.88 | $23.44 |
|
|
| 87-100-1577 - Case Kit for G52 (380/280/180) - G54 - UPC - 738919003668 - 87-100-1577 | 53 | $53.00 | $26.50 |
|
|
| 87-100-1607 - Belt Kit, Small and Large (380/360) - 9-100-1017 - UPC - 738919000377 - 87-100-1607 | 8 | $57.44 | $28.72 |
|
|
| 87-100-1647 - Feed Hose,10 Foot, (380/280/180) - D45 - UPC - 788379704605 - 87-100-1647 | 50 | $59.84 | $29.92 |
|
|
| 87-100-1518 - UWF Connector Assembly (380/280/180) - 9-100-9001 - UPC - 738919000650 - 87-100-1518 | 40 | $70.76 | $35.38 |
|
|
| 87-100-1531 - Sweep Hose Complete (380/280/180) - B5 - UPC - 738919000216 - 87-100-1531 | 35 | $72.14 | $36.07 |
|
|
| 87-100-1572 - Pressure Tester w/o Gauge (380/280/180) - G35 - 87-100-1572 | $72.98 | $36.49 |
|
||
| 87-100-1625 - Water Management System (380) - 9-100-7010 - UPC - 738919000575 - 87-100-1625 | 28 | $72.98 | $36.49 |
|
|
| 87-100-1600 - Leaf Bag (380/360) - 9-100-1012 - 87-100-1600 | 1 | $81.26 | $40.63 |
|
|
| 87-100-1603 - Sand/Silt Bag (380/360) - 9-100-1015 - UPC - 738919000360 - 87-100-1603 | 1 | $81.26 | $40.63 |
|
|
| 87-100-1630 - All-Purpose Bag (380/360) - 9-100-1014 - UPC - 738919002975 - 87-100-1630 | 1 | $82.38 | $41.19 |
|
|
| 87-100-1512 - Feed Hose with Floats (380/280/180) - 9-100-3104 - 87-100-1512 | $88.96 | $44.48 |
|
||
| 87-100-1649 - Leader Hose, 10 Foot, (380/280/180) - D50 - 87-100-1649 | 51 | $101.60 | $50.80 |
|
|
| 87-100-1514 - Leader Hose with Floats (380/280/180) - 9-100-3108 - UPC - 738919003323 - 87-100-1514 | $113.96 | $56.98 |
|
||
| 87-100-1582 - Back-up Valve Mechanism Only for G59 (380/280/180) - G65 - 87-100-1582 | $132.00 | $66.00 |
|
||
| 87-100-1576 - Mechanism for G52 (380/280/180) - G53 - UPC - 738919003651 - 87-100-1576 | 55 | $132.00 | $66.00 |
|
|
| 87-100-1627 - Top&Base Assy(Comp.kit replaces top housing pre`03)(380/360) - 9-100-7030 - UPC - 738919013216 - 87-100-1627 | 32 | $173.54 | $86.77 |
|
|
| 87-100-1575 - Back-up Valve Kit (380/280/180) - G52 - UPC - 738919003644 - 87-100-1575 | 52 | $181.04 | $88.37 |
|
|
| 87-100-1578 - Back-up Valve Kit (380/280/180) SUB WITH PART 87-100-1575 - Replaced By Part 87-100-1575 - G56 - 87-100-1578 | $181.04 | $90.52 |
|
||
| 35-100-1044 - Pump Hose Spool, 25 Foot, Flexible Reinforced - P135 - 35-100-1044 | $201.26 | $100.63 |
|
||
| 87-100-1574 - Feed Hose Complete W/UWF, No Back-up Valve (380/280/180 - G5 - UPC - 738919000131 - 87-100-1574 | $393.82 | $196.91 |
|
||
| 87-100-1852 - Factory Tune-Up Kit,Polaris 380/360 - 9-100-9010 - UPC - 738919003446 - 87-100-1852 | $436.18 | $218.09 |
|
