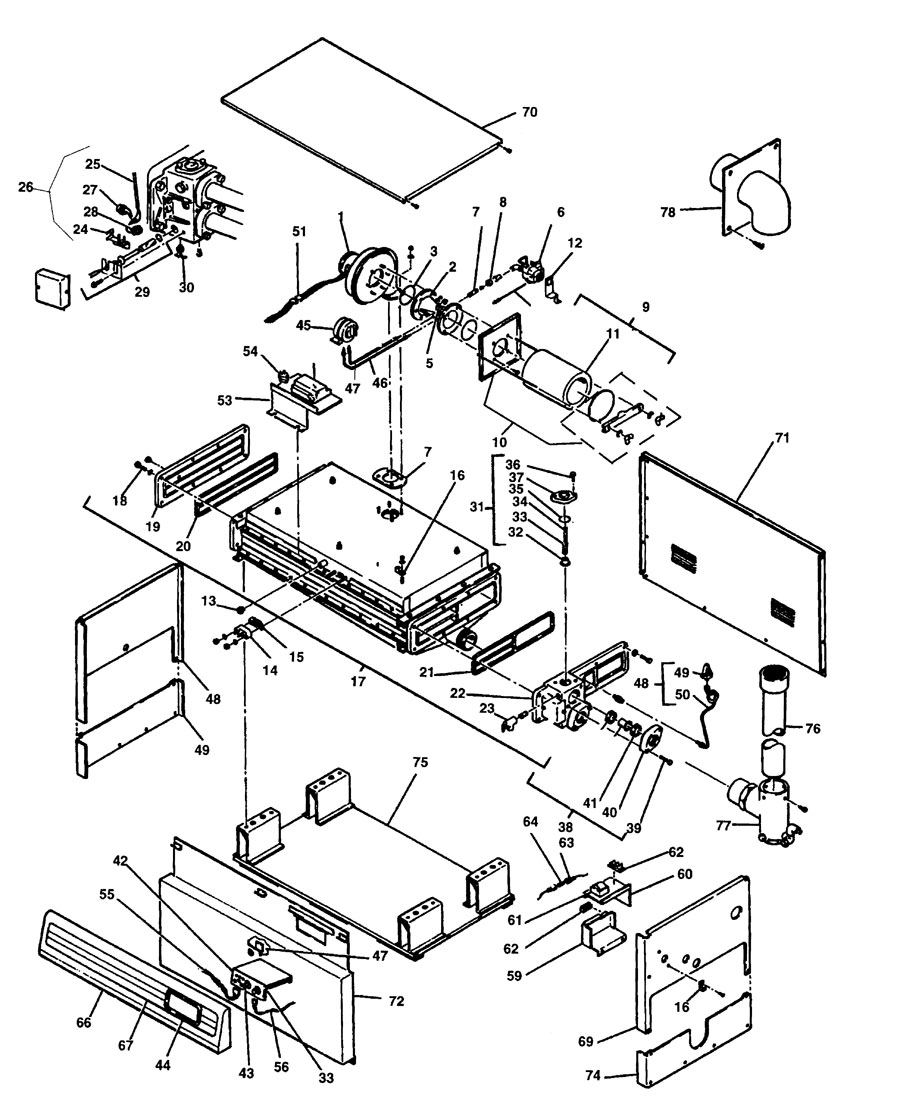

Swimming Pool Heaters - Waterpik Laars HI-E Model EPH Heater (Mfg 1991-96)
%20--%20Blow%20Up.jpg)
| Item | Key | Retail | Price | Quantity | |
| 47-295-1288 - Flange Bolt and Washer Assembly - R0211200 - 47-295-1288 | 39 | $3.38 | $1.69 |
|
|
| 47-295-1282 - By Pass Valve Gasket - R0011400 - UPC - 052337011587 - 47-295-1282 | 35 | $5.96 | $2.98 |
|
|
| 47-295-1276 - By Pass Valve Disc - R0011500 - UPC - 052337011594 - 47-295-1276 | 32 | $12.12 | $6.06 |
|
|
| 47-295-1202 - Venturi O-Ring - R0205400 - 47-295-1202 | 3 | $14.76 | $7.38 |
|
|
| 47-295-1292 - Flange Sleeve, 2 Inch - S0078200 - UPC - 523370259354 - 47-295-1292 | 41 | $15.58 | $7.79 |
|
|
| 47-295-1316 - Fusible Link - R0012200 - UPC - 052337011655 - 47-295-1316 | 54 | $21.56 | $10.78 |
|
|
| 47-295-1324 - Fuse, 1 + Amp (5 Pcs) - R0012300 - 47-295-1324 | 64 | $27.98 | $13.99 |
|
|
| 47-295-1262 - High Limit Switch Retainer - R0207800 - 47-295-1262 | 24 | $37.22 | $18.61 |
|
|
| 47-295-1218 - Igniter Gasket - R0205300 - UPC - 523370132220 - 47-295-1218 | 15 | $48.24 | $24.12 |
|
|
| 47-295-1212 - Gas Orifice, LP - R0205800 - 47-295-1212 | 8 | $60.03 | $30.02 |
|
|
| 47-295-1210 - Gas Orifice, Natural - R0205700 - 47-295-1210 | 8 | $61.54 | $30.77 |
|
|
| 47-295-1268 - High-limit Switch 135¦ F - R0022700 - UPC - 052337011938 - 47-295-1268 | 27 | $65.34 | $32.67 |
|
|
| 47-295-1270 - High-limit Switch, 150¦ F - R0023000 - UPC - 052337011945 - 47-295-1270 | 28 | $65.34 | $32.67 |
|
|
| 47-319-1027 - 3064 Pres. Sw., 25A, SPNO, 3/16 Inch Comp - 3064 - 47-319-1027 | 49 | $72.26 | $36.13 |
|
|
| 47-295-1200 - Flange, 2 Inch - 10573500 - UPC - 523370004442 - 47-295-1200 | 40 | $100.44 | $50.22 |
|
|
| 47-295-1286 - By Pass Valve Cap Assy,Bronze(cap,gasket,disc,rod,bolts) - R0054901 - UPC - 523370122320 - 47-295-1286 | 37 | $108.00 | $54.00 |
|
|
| 47-295-1266 - High-limit Switch Assembly - R0023200 - UPC - 052337011952 - 47-295-1266 | 26 | $122.10 | $61.05 |
|
|
| 47-295-1272 - Temperature Sensor Assembly - R0208100 - 47-295-1272 | 29 | $147.92 | $73.96 |
|
|
| 47-295-1258 - Inlet/Outlet Header Gasket - R0201100 - 47-295-1258 | 21 | $151.61 | $75.81 |
|
|
| 47-295-1304 - Venturi Pressure Switch - R0203300 - 47-295-1304 | 45 | $152.73 | $76.36 |
|
|
| 47-295-1216 - Ignitor Assembly - R0016400 - UPC - 052337011839 - 47-295-1216 | 14 | $168.22 | $84.11 |
|
|
| 47-295-1214 - Air Filter - R0201800 - 47-295-1214 | 11 | $225.90 | $112.95 |
|
|
| 47-295-1206 - Gas Valve - R0200100 - 47-295-1206 | 6 | $754.00 | $377.00 |
|
|
| 47-295-1300 - Temperature Control Assembly - R0211300 - 47-295-1300 | 42 | $1,124.53 | $562.26 |
|
|
| 47-295-1301 - Temperature Control Replacement - R0307700 - 47-295-1301 | 42 | $1,427.47 | $713.74 |
|
|
| 47-295-1260 - Inlet/Outlet Header - R0202600 - 47-295-1260 | 22 | $1,743.17 | $871.59 |
|
