Swimming Pool Heaters - Waterpik Laars LX/LT Heater (Mfg 1999-2003)

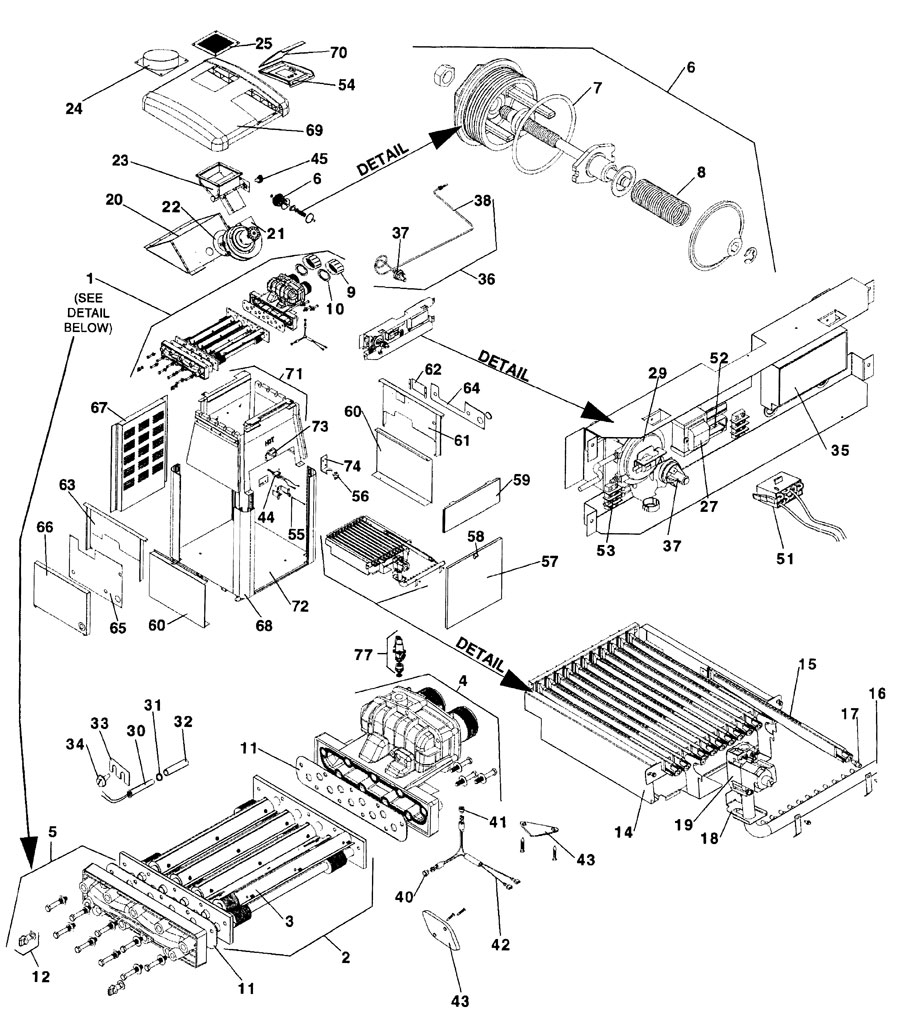

%20--%20Blow%20Up.jpg)
| Item | Key | Retail | Price | Quantity | |
| 47-295-1416 - Temp Control Bulb Inch O Inch -Ring - E0116400 - UPC - 523370046336 - 47-295-1416 | 31 | $3.98 | $1.99 |
|
|
| 47-295-1124 - Retainer Bracket - 10447300 - 47-295-1124 | 33 | $5.12 | $2.56 |
|
|
| 43-196-1042 - TUBE BLACK 5/8x1/2x7 3/8 - R172091 - UPC - 788379004873 - 43-196-1042 | 5 | $12.86 | $6.43 |
|
|
| 47-295-1538 - Gasket, Bypass Assy - R0336700 - 47-295-1538 | 7 | $13.40 | $6.70 |
|
|
| 47-295-1316 - Fusible Link - R0012200 - UPC - 052337011655 - 47-295-1316 | 56 | $21.56 | $10.78 |
|
|
| 47-295-1548 - Header Drain Plug w/ gasket (Set of 3) - R0335900 - 47-295-1548 | 12 | $22.68 | $11.34 |
|
|
| 47-295-1590 - Door Latch Assembly w/ Handle - R0334900 - UPC - 052337015790 - 47-295-1590 | 58 | $23.88 | $11.94 |
|
|
| 47-295-1572 - Gasket w/ Blower Mounting Hardware - R0329900 - UPC - 052337015196 - 47-295-1572 | 22 | $24.60 | $12.30 |
|
|
| 47-295-1462 - Terminal Block - R0097800 - 47-295-1462 | 53 | $25.64 | $12.82 |
|
|
| 47-295-1578 - Siphon Loop - R0334600 - UPC - 052337015769 - 47-295-1578 | 38 | $27.92 | $13.96 |
|
|
| 47-295-1582 - Exhaust Temp. Limit Switch - R0329400 - UPC - 052337015141 - 47-295-1582 | 45 | $33.74 | $16.87 |
|
|
| 47-295-1526 - Main Burner - L0052300 - UPC - 052337005944 - 47-295-1526 | 15 | $35.46 | $17.73 |
|
|
| 47-295-1546 - Gasket, Header (front or rear) - R0327500 - UPC - 052337015035 - 47-295-1546 | 11 | $39.56 | $19.78 |
|
|
| 47-295-1584 - Wire Harness, 120 Volt Power Plug - R0336200 - UPC - 052337015943 - 47-295-1584 | 51 | $47.64 | $23.82 |
|
|
| 47-295-1586 - Wire Harness, 240 Volt Power Plug - R0336300 - UPC - 052337015950 - 47-295-1586 | 51 | $47.64 | $23.82 |
|
|
| 47-295-1577 - Flame Sense Rod - R0334800 - UPC - 052337015783 - 47-295-1577 | 55 | $65.34 | $32.67 |
|
|
| 47-295-1268 - High-limit Switch 135¦ F - R0022700 - UPC - 052337011938 - 47-295-1268 | 40 | $65.34 | $32.67 |
|
|
| 47-295-1270 - High-limit Switch, 150¦ F - R0023000 - UPC - 052337011945 - 47-295-1270 | 41 | $65.34 | $32.67 |
|
|
| 43-196-1036 - VALVE CONTROL 1/2 Inch - R172086 - UPC - 788379004835 - 43-196-1036 | 6 | $66.48 | $33.24 |
|
|
| 47-295-1588 - Wire Harness, 15 Pin Connector - R0336400 - 47-295-1588 | 52 | $71.80 | $35.90 |
|
|
| 47-295-1544 - Compression Ring w/ Gasket, I/O Header (Set of two) - R0327400 - UPC - 052337015028 - 47-295-1544 | 10 | $77.68 | $38.84 |
|
|
| 47-295-1542 - Coupling Nut Kit,w/Compression Ring&Gasket(Set/2) - R0327300 - UPC - 052337015011 - 47-295-1542 | 9 | $77.68 | $38.84 |
|
|
| 47-295-1556 - Natural Orifice (3K-6K ft) (Set of 20) - R0328000 - 47-295-1556 | 17 | $77.94 | $38.97 |
|
|
| 47-295-1540 - Spring, Bypass - R0327200 - 47-295-1540 | 8 | $79.44 | $39.72 |
|
|
| 47-295-1560 - LP Orifice (0-5K ft) (Set of 20) - R0328200 - 47-295-1560 | 17 | $80.02 | $40.01 |
|
|
| 47-295-1554 - Natural Orifice (0-3K ft) (Set of 20) - R0327900 - 47-295-1554 | 17 | $80.02 | $40.01 |
|
|
| 47-295-1579 - Cover, Temp Control Laars LX/LT `99 thru present - R0330600 - 47-295-1579 | 70 | $100.98 | $50.49 |
|
|
| 47-295-1558 - Natural Orifice (6K-9K ft) (Set of 20) - R0328100 - 47-295-1558 | 17 | $150.00 | $75.00 |
|
|
| 47-295-1550 - Heat Exch. Hardware Kit & Gaskets - R0327600 - 47-295-1550 | 13 | $158.26 | $79.13 |
|
|
| 47-295-1562 - LP Orifice (5K-10K ft) (Set of 20) - R0328300 - 47-295-1562 | 17 | $183.48 | $91.74 |
|
|
| 47-295-1564 - Gas Valve Natural w/ Street Elbow (LX/LT Low NOx 2003-pres) - R0386600 - UPC - 052337019668 - 47-295-1564 | 19 | $476.52 | $238.26 |
|
|
| 47-295-1568 - Gas Valve LP w/ Street Ell - R0336900 - UPC - 052337016018 - 47-295-1568 | 19 | $476.52 | $238.26 |
|
|
| 47-295-1570 - Blower Assembly - R0329800 - UPC - 052337015189 - 47-295-1570 | 21 | $916.90 | $458.45 |
|
|
| 47-295-1532 - Front Header, w/ Hardware & Gaskets - R0326900 - UPC - 052337014977 - 47-295-1532 | 4 | $1,039.38 | $519.69 |
|
|
| 47-295-1575 - Temperature Control W/Bezel - Dual - R0350500 - UPC - 052337017343 - 47-295-1575 | 54 | $1,190.06 | $595.03 |
|
|
| 47-295-1574 - Temperature Control W/Bezel - R0329600 - UPC - 052337015165 - 47-295-1574 | 54 | $1,786.46 | $893.23 |
|
|
| 47-295-1528 - Tube Assembly (Cu), w/ Hardware & Gaskets, 250 - R0326603 - 47-295-1528 | 2 | $2,078.72 | $1,039.36 |
|
|
| 47-295-1530 - Tube Assembly (Cu), w/ Hardware & Gaskets, 400 - R0326605 - 47-295-1530 | 2 | $2,455.64 | $1,227.82 |
|
