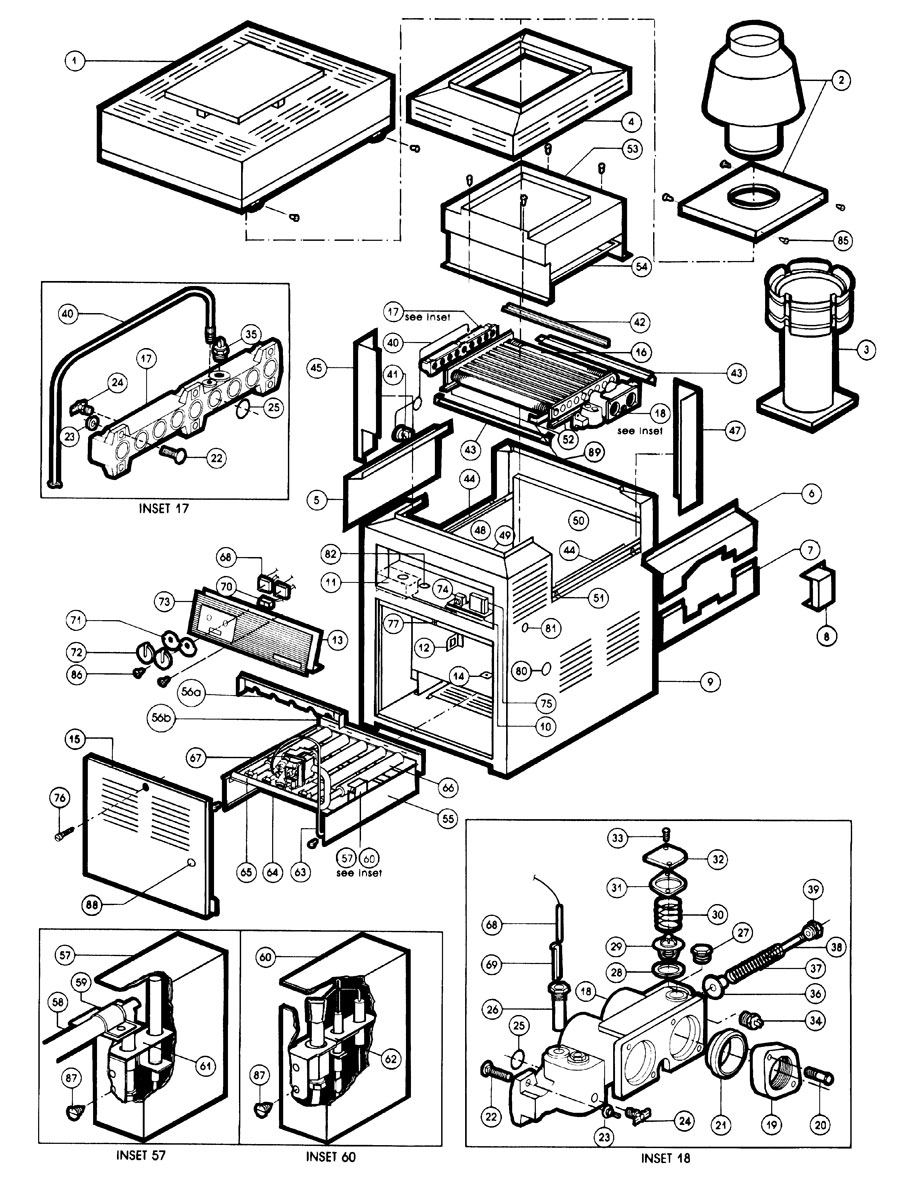

Swimming Pool Heater - Hayward Heatmaster 280 - 406 Model Heaters
| Item | Key | Retail | Price | Quantity | |
| 47-150-1632 - ORIFICE SPUD-MAIN BURNER(NAT.) - HX350B028 - 47-150-1632 | 65 | $9.19 | $4.59 |
|
|
| 47-150-1634 - ORIFICE SPED-MAIN BURNER (PROP.) - HX350B043 - 47-150-1634 | 65 | $9.19 | $4.59 |
|
|
| 47-150-1580 - GASKET, THERMOSTAT - HX350GTST - 47-150-1580 | 28 | $9.36 | $4.68 |
|
|
| 47-150-1658 - KNOB - HX350NOB - 47-150-1658 | 72 | $9.36 | $4.68 |
|
|
| 47-150-1576 - DRAIN VALVE - HX350DV - 47-150-1576 | 24 | $11.48 | $5.74 |
|
|
| 47-150-1568 - FLANGE BOLTS, (SET OF 4) - HX350F1114 - 47-150-1568 | 20 | $12.17 | $6.08 |
|
|
| 47-150-1586 - GASKET, COVER PLATE - HX350GCP - 47-150-1586 | 31 | $12.17 | $6.08 |
|
|
| 47-150-1584 - SPRING-THERMOSTAT RETAINER - HX350SPT - 47-150-1584 | 30 | $12.17 | $6.08 |
|
|
| 47-150-1572 - CARRIAGE BOLTS (SET OF 6) - HX350F1016 - 47-150-1572 | 22 | $12.72 | $6.36 |
|
|
| 47-150-1600 - SPRING-BYPASS VALVE - HX350SPBV - 47-150-1600 | 37 | $21.56 | $10.78 |
|
|
| 47-150-1650 - SPRING, RETAINING-THERMOSTAT BULB - HX350SPB - 47-150-1650 | 69 | $25.54 | $12.77 |
|
|
| 47-150-1604 - PLUG-BYPASS VALVE - HX350PBV - 47-150-1604 | 39 | $25.90 | $12.95 |
|
|
| 47-150-1602 - GUIDE ROD-BYPASS VALVE - HX350ROD - 47-150-1602 | 38 | $26.64 | $13.32 |
|
|
| 47-150-1662 - THUMBSCREW, W/RETAINER RING - HX350F601 - 47-150-1662 | 76 | $28.71 | $14.36 |
|
|
| 47-150-1236 - 3/4 Inch NPT Brass Plug - CHXPLG1930 - UPC - 610377003124 - 47-150-1236 | 27 | $33.30 | $16.65 |
|
|
| 47-150-1578 - GASKET, HEADER -SET OF 9- - HX350GH9 - 47-150-1578 | 25 | $35.86 | $17.93 |
|
|
| 47-150-1588 - COVER PLATE (CAST IRON) - HX350CP - 47-150-1588 | 32 | $37.49 | $18.75 |
|
|
| 47-150-1622 - PILOT BURNER TUBING - HX350PT - 47-150-1622 | 63 | $37.83 | $18.92 |
|
|
| 47-150-1270 - THERMOSTAT DIAL LOCK CZ & HM2 - CHXTDL1930 - 47-150-1270 | 71 | $39.44 | $19.72 |
|
|
| 47-150-1106 - Thermostat Bulb Well - CHXTBW1930 - UPC - 610377003186 - 47-150-1106 | 26 | $40.08 | $20.04 |
|
|
| 47-150-1652 - SWITCH ,2 POSITION - HX350SWS - 47-150-1652 | 70 | $41.23 | $20.62 |
|
|
| 47-150-1654 - SWITCH ,3 POSITION - HX350SWD - 47-150-1654 | 70 | $45.67 | $22.83 |
|
|
| 47-150-1610 - LIGHTER TUBE - HX350LT - 47-150-1610 | 58 | $46.70 | $23.35 |
|
|
| 47-150-1606 - PRESSURE SWITCH TUBE W/FITTINGS - HX350PST - 47-150-1606 | 40 | $53.75 | $26.88 |
|
|
| 47-150-1594 - HIGH LIMIT 150 F -FRONT HEADER - HX350HL150 - 47-150-1594 | 34 | $74.62 | $37.31 |
|
|
| 47-150-1266 - THERMOSTAT W/O KNOB CZ & HM2 S - CHXTST1930 - UPC - 610377003230 - 47-150-1266 | 68 | $78.96 | $39.48 |
|
|
| 47-150-1582 - THERMOSTAT -FLOW CONTROL- - HMXFCT2930 - 47-150-1582 | 29 | $90.82 | $45.41 |
|
|
| 47-150-1664 - WIRING HARNESS (MILLVOLT) - HX350W - 47-150-1664 | 78 | $119.52 | $59.76 |
|
|
| 47-150-1608 - PRESSURE SWITCH W/FITTING - HX350PSW1 - 47-150-1608 | 41 | $129.96 | $64.98 |
|
|
| 47-150-1636 - BURNER, MAIN - HX350BBR - 47-150-1636 | 66 | $160.78 | $80.39 |
|
|
| 47-150-1558 - HEADER, RETURN (BRONZE) - HX350HDRB - 47-150-1558 | 17 | $244.82 | $122.41 |
|
|
| 47-150-1640 - GAS VALVE -MILLIVOLT ,LP- - HX350GVRP - 47-150-1640 | 67 | $387.73 | $193.87 |
|
|
| 47-150-1646 - GAS VALVE (ELEC ,LP) - HX350GVRPE - 47-150-1646 | 67 | $443.78 | $221.89 |
|
|
| 47-150-1642 - GAS VALVE (ELEC ,NATURAL) - HX350GVRE - 47-150-1642 | 67 | $443.78 | $221.89 |
|
