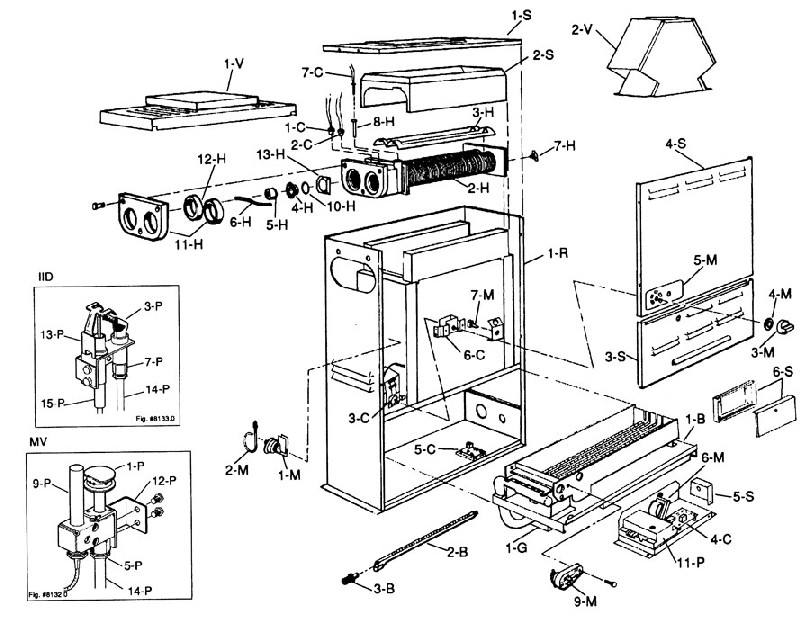

Swimming Pool Heater - Raypak 55A (5/1/87-9/30/89) & 55B (10/1/89-pres) Heaters
| Item | Key | Retail | Price | Quantity | |
| 47-197-1376 - GASKET-UG - 800276 - 47-197-1376 | 10H | $3.66 | $1.83 |
|
|
| 47-197-1018 - Sensor Clip - 300203 - 47-197-1018 | 9H | $3.66 | $1.83 |
|
|
| 47-197-1312 - BRACKET-PILOT MTG - 305969F - 47-197-1312 | 13P | $9.66 | $4.83 |
|
|
| 47-197-1272 - ORIFICE-BURNER NAT 30 - 350844F - 47-197-1272 | 3B | $10.18 | $5.09 |
|
|
| 47-197-1030 - T-Stat Knob - 006885F - UPC - 840891004271 - 47-197-1030 | 3M | $10.96 | $5.48 |
|
|
| 47-197-1220 - SPRING-UG RETAINER CLIP - 850247 - 47-197-1220 | 6H | $10.96 | $5.48 |
|
|
| 47-197-1232 - VALVE-DRAIN 1/8 X STRAIGHT - 500719 - 47-197-1232 | 7H | $12.42 | $6.21 |
|
|
| 47-197-1350 - BURNER OROFICE NATURAL 52 (SEA LEVEL) - 350081 - 47-197-1350 | 3B | $12.42 | $6.21 |
|
|
| 47-197-1352 - BURNER OROFICE PROPANE 62 (SEA LEVEL) - 350086 - 47-197-1352 | 3B | $12.42 | $6.21 |
|
|
| 47-197-1274 - ORIFICE-BURNER PRO 46 - 350851F - 47-197-1274 | 3B | $15.26 | $7.63 |
|
|
| 47-197-1386 - PILOT ORIFICE P IID-KIT - 004308F - UPC - 840891001263 - 47-197-1386 | 7P | $15.74 | $7.87 |
|
|
| 47-197-1032 - T-Stat Knob Stop Raypak - 006886F - UPC - 840891005193 - 47-197-1032 | 4M | $21.16 | $10.58 |
|
|
| 47-197-1226 - GASKET HDR FLANGE 1-1/2-B/PAK - 800013B - UPC - 840891004530 - 47-197-1226 | 12H | $21.16 | $10.58 |
|
|
| 47-197-1246 - PILOT ORIFICE N MV-KIT - 003901F - UPC - 840891007074 - 47-197-1246 | 5P | $22.62 | $11.31 |
|
|
| 47-197-1248 - PILOT ORIFICE P MV-KIT - 003902F - 47-197-1248 | 5P | $22.62 | $11.31 |
|
|
| 47-197-1308 - PILOT ORIFICE N IID-KIT - 003903F - UPC - 840891007029 - 47-197-1308 | 7P | $22.62 | $11.31 |
|
|
| 47-197-1218 - UNITHERM GOVERNOR SLEEVE - 400734 - 47-197-1218 | 5H | $25.52 | $12.76 |
|
|
| 47-197-1200 - BURNER - 301210 - 47-197-1200 | 2B | $34.54 | $17.27 |
|
|
| 47-197-1378 - BAFFLE-HEAT EXCH BYPASS - 306079 - 47-197-1378 | 13H | $35.86 | $17.93 |
|
|
| 47-197-1304 - SWITCH-TOGGLE SPST 3A/6A BLK - 650595 - 47-197-1304 | 7M | $39.86 | $19.93 |
|
|
| 47-197-1298 - PLATE-DIAL - 900741 - 47-197-1298 | 5M | $42.90 | $21.45 |
|
|
| 47-197-1222 - BULB SENSOR WELL-KIT - 007211F - UPC - 840891004264 - 47-197-1222 | 8H | $47.38 | $23.69 |
|
|
| 47-197-1300 - PLATE-DIAL - 900742 - 47-197-1300 | 5M | $48.52 | $24.26 |
|
|
| 47-197-1385 - THERMAL CUT-OFF FUSE-KIT,190 DEG - 008126F - UPC - 840891001126 - 47-197-1385 | 9M | $48.52 | $24.26 |
|
|
| 47-319-1201 - 3925 Univ. Pressure Switch W/Brass Fittings - 3029P - 47-319-1201 | 1M | $48.56 | $24.28 |
|
|
| 47-197-1384 - THERMAL CUT-OFF FUSE-KIT,130 DEG - 005899F - UPC - 840891000686 - 47-197-1384 | 9M | $49.66 | $24.83 |
|
|
| 47-197-1206 - THERMOSTAT AUTO RESET13-B/PAK - 600889B - 47-197-1206 | 1C | $65.40 | $32.70 |
|
|
| 47-197-1208 - THERMOSTAT AUTO RESET14-B/PAK - 600890B - UPC - 840891004615 - 47-197-1208 | 2C | $65.40 | $32.70 |
|
|
| 47-197-1224 - FLANGE IN/OUT 1-1/2 POOL-KIT (53,55,153,155) - 002432F - UPC - 840891004202 - 47-197-1224 | 11H | $65.40 | $32.70 |
|
|
| 47-197-1318 - PILOT TUBE 34 Inch -KIT - 004078F - UPC - 840891003878 - 47-197-1318 | 12P/14P | $69.96 | $34.98 |
|
|
| 47-197-1394 - PILOT BRKT MV 53/53A/055B-KIT - 004716F - 47-197-1394 | 12P | $69.96 | $34.98 |
|
|
| 47-197-1398 - PILOT BRKT IID 53A/055B-KIT - 004717F - 47-197-1398 | 13P | $69.96 | $34.98 |
|
|
| 47-197-1400 - WIRE HIGH TENSION-B/PAK - 002654B - UPC - 840891004554 - 47-197-1400 | 15P | $72.24 | $36.12 |
|
|
| 47-197-1288 - PRESS SW TUBE 53B/055-KIT - 003543F - UPC - 840891007050 - 47-197-1288 | 2M | $74.54 | $37.27 |
|
|
| 47-197-1216 - GOVERNOR-UNATHERM - 600885 - 47-197-1216 | 4H | $96.96 | $48.48 |
|
|
| 47-197-1380 - WIRE/HARNESS 055 MV-KIT - 004010F - 47-197-1380 | 8M | $101.52 | $50.76 |
|
|
| 47-197-1250 - THERMOCOUPLE 35 750MV-B/PAK - 600019B - UPC - 840891002574 - 47-197-1250 | 9P | $102.66 | $51.33 |
|
|
| 47-197-1362 - TEMP SENSOR ELECTRONIC-B/PAK - 005088B - UPC - 840891001218 - 47-197-1362 | 7C | $106.08 | $53.04 |
|
|
| 47-197-1382 - WIRE/HARNESS 055 IID-KIT - 004011F - UPC - 840891008811 - 47-197-1382 | 8M | $114.08 | $57.04 |
|
|
| 47-197-1270 - BURNER - 305952F - 47-197-1270 | 2B | $115.78 | $57.89 |
|
|
| 47-197-1309 - Drafthood 055 Raypak-Kit, Indoor - 003722 - 47-197-1309 | 2V | $120.84 | $60.42 |
|
|
| 47-197-1244 - PILOT MV PRO-B/PAK - 600575B - UPC - 840891004394 - 47-197-1244 | 1P | $132.36 | $66.18 |
|
|
| 47-197-1242 - PILOT MV NAT-B/PAK - 600525B - UPC - 840891002260 - 47-197-1242 | 1P | $144.50 | $72.25 |
|
|
| 47-197-1276 - THERMOSTAT 53A/53B/O55-KIT - 003346F - 47-197-1276 | 3C | $211.10 | $105.55 |
|
|
| 47-197-1388 - ELEC IGN W/O LOCK-B/PAK - 004817B - UPC - 840891000556 - 47-197-1388 | 11P | $307.68 | $153.84 |
|
|
| 47-197-1390 - ELEC IGN W/LOCK-B/PAK - 004818B - UPC - 840891000976 - 47-197-1390 | 11P | $307.68 | $153.84 |
|
|
| 47-197-1356 - PC BOARD POOL IID-B/PAK - 005086B - UPC - 840891001201 - 47-197-1356 | 4C | $336.24 | $168.12 |
|
|
| 47-197-1358 - PC BOARD POOL MV-B/PAK - 005089B - 47-197-1358 | 5C | $358.66 | $179.33 |
|
|
| 47-197-1366 - THERMOSTAT POOL IID SINGL-KIT - 005389F - UPC - 840891002505 - 47-197-1366 | 9C | $382.64 | $191.32 |
|
|
| 47-197-1364 - THERMOSTAT POOL MV ELEC-KIT SOLID STATE - 005391F - UPC - 840891001874 - 47-197-1364 | 8C | $456.34 | $228.17 |
|
|
| 47-197-1368 - GAS VALVE IID PRO POOL-KIT - 004306F - UPC - 840891000631 - 47-197-1368 | 1G | $458.62 | $229.31 |
|
|
| 47-197-1210 - GAS VALVE MV NAT POOL-KIT - 003898F - UPC - 840891000587 - 47-197-1210 | 1G | $471.18 | $235.59 |
|
|
| 47-197-1212 - GAS VALVE MV PRO POOL-KIT - 003899F - UPC - 840891000570 - 47-197-1212 | 1G | $471.18 | $235.59 |
|
|
| 47-197-1278 - GAS VALVE IID NAT POOL-KIT - 003900F - UPC - 840891000310 - 47-197-1278 | 1G | $471.18 | $235.59 |
|
|
| 47-197-1280 - HEADER/TUBES 53A/53B/055A-KIT - 003542F - 47-197-1280 | 2H | $516.85 | $258.43 |
|
|
| 47-197-1370 - HEADER/TUBE 055B BR-KIT - 004695F - UPC - 840891002703 - 47-197-1370 | 2H | $546.14 | $273.07 |
|
