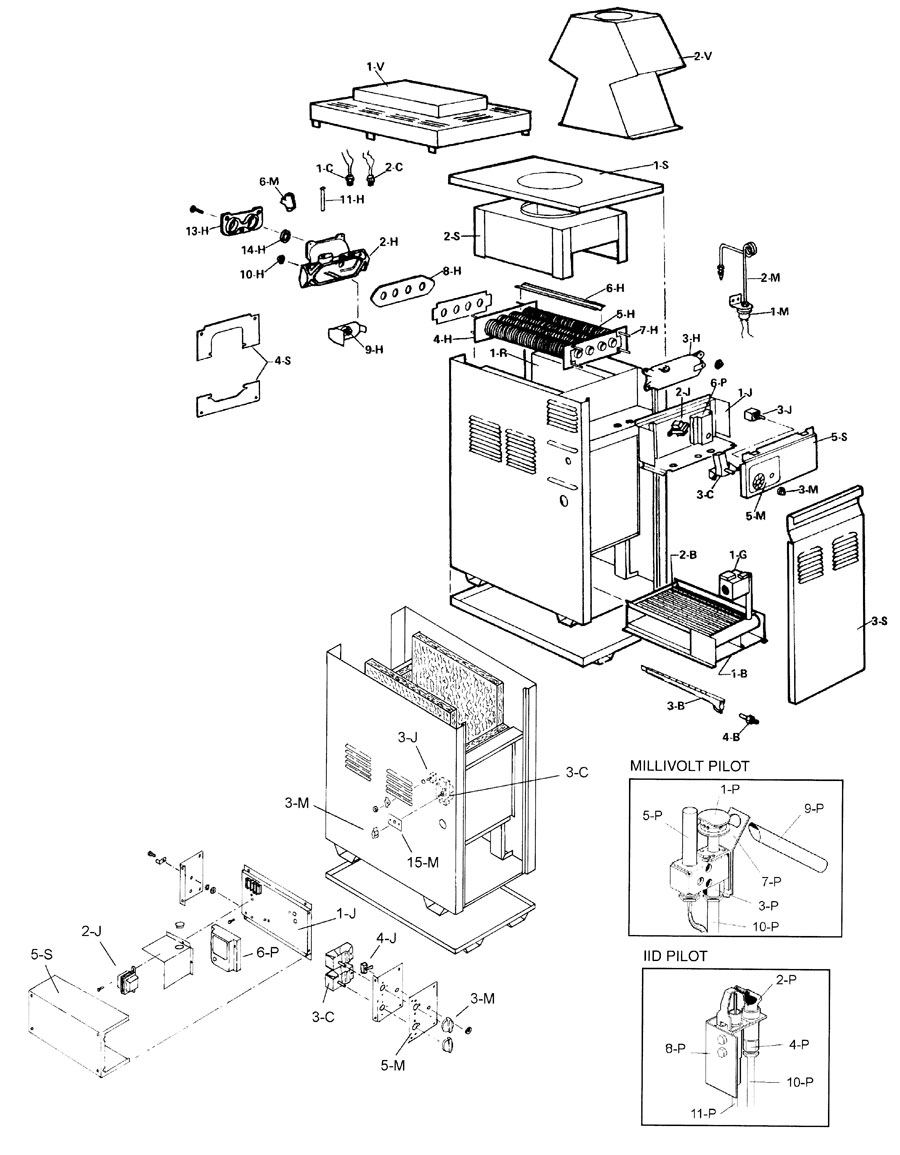

Swimming Pool Heater - Raypak Versa 153 (12/1/81-1/1/84) & 153A (1/1/84-2/15/87)
| Item | Key | Retail | Price | Quantity | |
| 47-197-1018 - Sensor Clip - 300203 - 47-197-1018 | 12H | $3.66 | $1.83 |
|
|
| 47-197-1030 - T-Stat Knob - 006885F - UPC - 840891004271 - 47-197-1030 | 3M | $10.96 | $5.48 |
|
|
| 47-197-1254 - TUBE-CUT 1/4 OD X 20 ALUM - 400275 - 47-197-1254 | 10P | $10.96 | $5.48 |
|
|
| 47-197-1202 - BURNER ORIFICE NATURAL 51 (SEA LEVEL) - 350080 - 47-197-1202 | 4B | $12.42 | $6.21 |
|
|
| 47-197-1470 - BURNER OROFICE PROPANE 57 (SEA LEVEL) - 350083 - 47-197-1470 | 4B | $12.42 | $6.21 |
|
|
| 47-197-1232 - VALVE-DRAIN 1/8 X STRAIGHT - 500719 - 47-197-1232 | 10H | $12.42 | $6.21 |
|
|
| 47-197-1032 - T-Stat Knob Stop Raypak - 006886F - UPC - 840891005193 - 47-197-1032 | 4M | $21.16 | $10.58 |
|
|
| 47-197-1226 - GASKET HDR FLANGE 1-1/2-B/PAK - 800013B - UPC - 840891004530 - 47-197-1226 | 14H | $21.16 | $10.58 |
|
|
| 47-197-1246 - PILOT ORIFICE N MV-KIT - 003901F - UPC - 840891007074 - 47-197-1246 | 3P | $22.62 | $11.31 |
|
|
| 47-197-1248 - PILOT ORIFICE P MV-KIT - 003902F - 47-197-1248 | 3P | $22.62 | $11.31 |
|
|
| 47-197-1308 - PILOT ORIFICE N IID-KIT - 003903F - UPC - 840891007029 - 47-197-1308 | 4P | $22.62 | $11.31 |
|
|
| 47-197-1502 - TUBE GROUP-LIGHTER - 052797 - 47-197-1502 | 9P | $26.98 | $13.49 |
|
|
| 47-197-1026 - Toggle Switch Raypak SPST - 650761 - 47-197-1026 | 3J | $34.54 | $17.27 |
|
|
| 47-197-1518 - SWITCH-TOGGLE SPDT 15A/10A BL - 650553F - 47-197-1518 | 3J | $34.54 | $17.27 |
|
|
| 47-197-1200 - BURNER - 301210 - 47-197-1200 | 3B | $34.54 | $17.27 |
|
|
| 47-197-1504 - WIRE HIGH TENSION-B/PAK - 006088B - 47-197-1504 | 11P | $38.54 | $19.27 |
|
|
| 47-197-1490 - GASKET HT EX 1 ID FLAT-B/PAK - 800075B - 47-197-1490 | 8H | $39.86 | $19.93 |
|
|
| 47-197-1222 - BULB SENSOR WELL-KIT - 007211F - UPC - 840891004264 - 47-197-1222 | 11H | $47.38 | $23.69 |
|
|
| 47-319-1201 - 3925 Univ. Pressure Switch W/Brass Fittings - 3029P - 47-319-1201 | 1M | $48.56 | $24.28 |
|
|
| 47-197-1486 - HT EX BAFFLE 151/153-KIT - 004055F - 47-197-1486 | 6H | $50.80 | $25.40 |
|
|
| 47-197-1510 - BRNR HLDOWN 133-155-KIT - 001991F - 47-197-1510 | 2B | $64.26 | $32.13 |
|
|
| 47-197-1224 - FLANGE IN/OUT 1-1/2 POOL-KIT (53,55,153,155) - 002432F - UPC - 840891004202 - 47-197-1224 | 13H | $65.40 | $32.70 |
|
|
| 47-197-1494 - PRESS SW TUBE 151/153/155-KIT - 003271F - 47-197-1494 | 2M | $65.40 | $32.70 |
|
|
| 47-197-1444 - THERMOSTAT AUTO RESET13-B/PAK - 600892B - UPC - 840891001393 - 47-197-1444 | 1C | $65.40 | $32.70 |
|
|
| 47-197-1446 - THERMOSTAT AUTO RESET14-B/PAK - 600893B - UPC - 840891001409 - 47-197-1446 | 2C | $65.40 | $32.70 |
|
|
| 47-197-1488 - CARR BOLT 136 151/153/155-KIT - 001056F - UPC - 840891008866 - 47-197-1488 | 7H | $68.82 | $34.41 |
|
|
| 47-197-1524 - PILOT BRKT IID 155C/133A-KIT - 006055F - 47-197-1524 | 8P | $81.38 | $40.69 |
|
|
| 47-197-1516 - HT EX BAFFLE 153A/155-KIT - 002000F - 47-197-1516 | 6H | $93.52 | $46.76 |
|
|
| 47-197-1250 - THERMOCOUPLE 35 750MV-B/PAK - 600019B - UPC - 840891002574 - 47-197-1250 | 5P | $102.66 | $51.33 |
|
|
| 47-197-1244 - PILOT MV PRO-B/PAK - 600575B - UPC - 840891004394 - 47-197-1244 | 1P | $132.36 | $66.18 |
|
|
| 47-197-1242 - PILOT MV NAT-B/PAK - 600525B - UPC - 840891002260 - 47-197-1242 | 1P | $144.50 | $72.25 |
|
|
| 47-197-1492 - UNATHERM GOV 151/153/15-B/PAK - 053242B - UPC - 840891003571 - 47-197-1492 | 9H | $176.48 | $88.24 |
|
|
| 47-197-1388 - ELEC IGN W/O LOCK-B/PAK - 004817B - UPC - 840891000556 - 47-197-1388 | 6P | $307.68 | $153.84 |
|
|
| 47-197-1210 - GAS VALVE MV NAT POOL-KIT - 003898F - UPC - 840891000587 - 47-197-1210 | 1G | $471.18 | $235.59 |
|
|
| 47-197-1212 - GAS VALVE MV PRO POOL-KIT - 003899F - UPC - 840891000570 - 47-197-1212 | 1G | $471.18 | $235.59 |
|
|
| 47-197-1278 - GAS VALVE IID NAT POOL-KIT - 003900F - UPC - 840891000310 - 47-197-1278 | 1G | $471.18 | $235.59 |
|
|
| 47-197-1484 - TUBE BUNDLE 153A/155 A-KIT - 002439F - UPC - 840891003748 - 47-197-1484 | 4H | $694.90 | $347.45 |
|
|
| 47-197-1512 - HDR IN/OUT 153/153A/155 B-KIT (note) - 002434F - 47-197-1512 | 2H | $1,206.14 | $603.07 |
|
