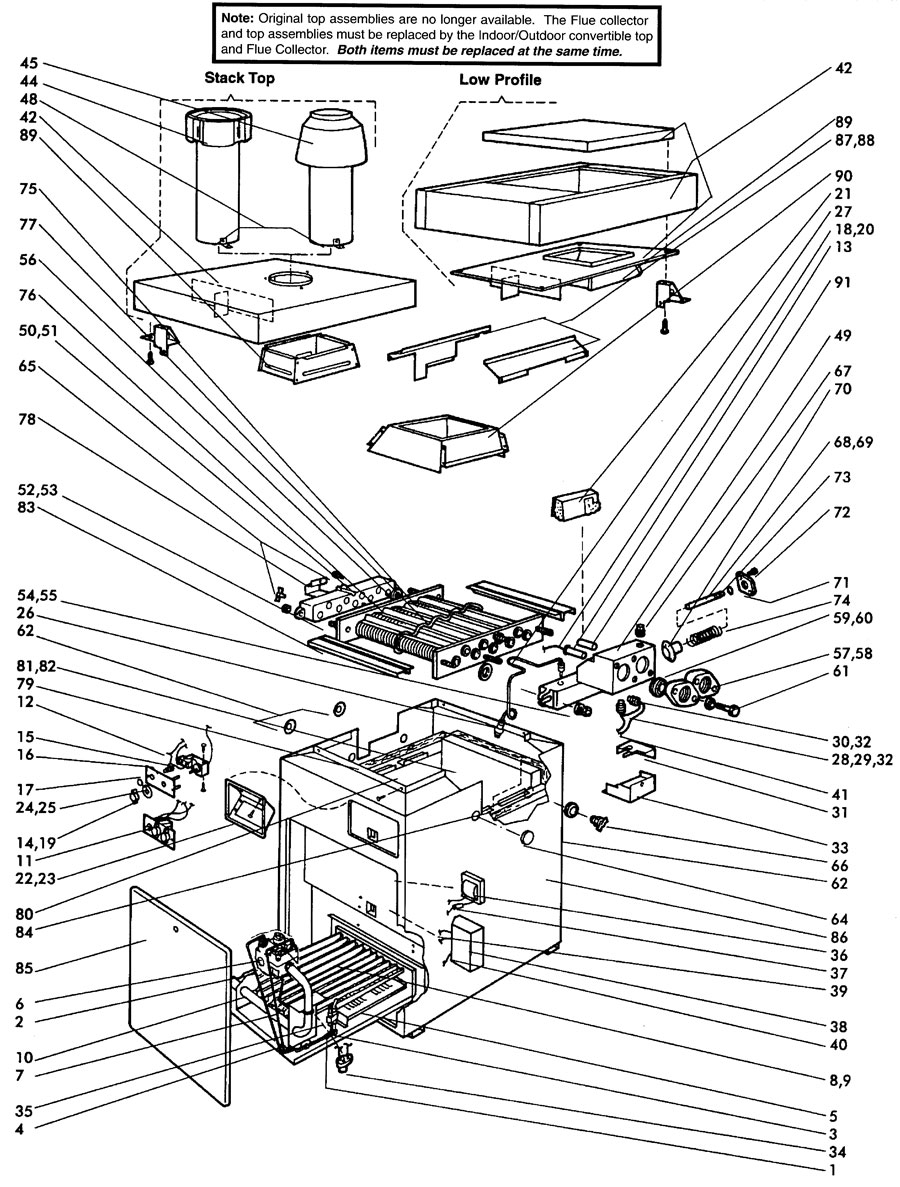

Swimming Pool Heater - Waterpik Laars XE Series ES, ES II, EC Heaters (Mfg 1984-89)


Item Key Retail Price Quantity
47-295-1450 - TEMP-LOK Stop Plate - 10583100 - 47-295-1450 24 $6.34 $3.17
47-295-1416 - Temp Control Bulb Inch O Inch -Ring - E0116400 - UPC - 523370046336 - 47-295-1416 20 $12.06 $6.03
47-295-1522 - Gas Orifice, Natural, 0K to 3K Ft. - L0032200 - UPC - 052337005883 - 47-295-1522 7 $13.54 $6.77
47-295-1120 - Thermostat Sleeve - 10444900 - UPC - 523370000864 - 47-295-1120 21 $13.54 $6.77
47-295-1626 - By Pass Valve Rod - S0079800 - 47-295-1626 69 $13.60 $6.80
47-295-1460 - High-Limit Switch Wire Harness SUB WITH PART 47-295-1468 - Replaced By Part 47-295-1468 - S0098900 - 47-295-1460 32 $13.80 $6.90
47-295-1316 - Fusible Link - R0012200 - UPC - 052337011655 - 47-295-1316 34 $32.80 $16.40
47-295-1504 - By Pass Spring, 2 Inch Header, Black, 400 - S0070100 - UPC - 052337025898 - 47-295-1504 74 $33.02 $16.51
47-295-1502 - By Pass Spring, Blue, 325 btu - S0061200 - UPC - 052337025850 - 47-295-1502 74 $34.18 $17.09
47-295-1498 - By Pass Spring, White, 175 btu - S0061400 - UPC - 052337025874 - 47-295-1498 74 $34.18 $17.09
47-295-1660 - By Pass Kit - R0013100 - UPC - 052337011693 - 47-295-1660 68 $39.50 $19.75
47-295-1436 - Pilot Tubing - 1/4 Inch - 1/4 Inch Pilot Tubing - Newer Models (84' - 89' was 1/8 Inch and is no longer available) - R0037000 - UPC - 052337012034 - 47-295-1436 2 $41.12 $20.56
47-295-1432 - Burner, W/Pilot Bracket - 10457500 - UPC - 523370002226 - 47-295-1432 9 $46.36 $23.18
47-319-1201 - 3925 Univ. Pressure Switch W/Brass Fittings - 3029P - 47-319-1201 26 $52.46 $26.23
47-295-1488 - Header Gasket (18 Ea) - R0050800 - UPC - 523370121958 - 47-295-1488 56 $54.08 $27.04
47-295-1430 - Ceramic Insulator Assembly - R0011600 - UPC - 052337058179 - 47-295-1430 3 $58.52 $29.26
47-295-1478 - Header Bolt Kit - R0057000 - UPC - 052337012287 - 47-295-1478 52 $70.60 $35.30
47-295-1458 - High-Limit Switch Retainer Clip SUB WITH PART 47-295-1264 - Replaced By Part 47-295-1264 - 10728500 - 47-295-1458 31 $71.74 $35.87
47-295-1494 - By Pass Assembly, 2 Inch SUB WITH PART 47-295-1490 - Replaced By Part 47-295-1490 - S0069100 - 47-295-1494 71 $71.96 $35.98
47-319-1063 - Techmark Pressure Switch - 25A, SPNO, 1/8 Inch NPT, 1-10 PSI - 3035, R0015500 - 47-319-1063 26 $76.08 $38.04
47-295-1270 - High-limit Switch, 150? F - R0023000 - UPC - 052337011945 - 47-295-1270 30 $78.34 $39.17
47-295-1654 - On-Off Switch - R0094100 - 47-295-1654 16 $80.20 $40.10
47-295-1268 - High-limit Switch 135? F - R0022700 - UPC - 052337011938 - 47-295-1268 29 $80.88 $40.44
47-319-1027 - 3064 Pres. Sw., 25A, SPNO, 3/16 Inch Comp - 3064 - 47-319-1027 26 $89.82 $44.91
47-295-1318 - Transformer - R0061100 - UPC - 523370124478 - 47-295-1318 36 $130.96 $65.48
47-295-1282 - By Pass Valve Gasket - R0011400 - UPC - 052337011587 - 47-295-1282 73 $133.66 $66.83
47-295-1276 - By Pass Valve Disc - R0011500 - UPC - 052337011594 - 47-295-1276 70 $133.66 $66.83
47-295-1454 - Siphon Loop Assembly Kit - R0057800 - UPC - 052337012324 - 47-295-1454 27 $140.84 $70.42
47-295-1600 - Pilot Burner/Electrode, NAT, IID - R0061600 - UPC - 078837977811 - 47-295-1600 1 $181.76 $90.88
47-295-1414 - Temperature Sensor - R0011800 - UPC - 052337011617 - 47-295-1414 13 $190.20 $95.10
47-295-1112 - Mechanical Temperature Control Replacement Kit - R0318800 - UPC - 052337014502 - 47-295-1112 15 $347.80 $173.90
47-295-1474 - Return Header - R0058300 - UPC - 052337012362 - 47-295-1474 50 $398.76 $199.38
47-295-1614 - Ignition Control - R0011900 - UPC - 052337011624 - 47-295-1614 38 $586.48 $293.24
47-295-1708 - Gas Valve, Natural (250 - 400), IID - R0099400 - UPC - 052337012966 - 47-295-1708 6 $676.38 $338.19
47-295-1412 - Temp Control Assembly - R0011700 - UPC - 523370116008 - 47-295-1412 11 $749.14 $374.57
47-295-1476 - Return Header, Bronze - R0054600 - UPC - 052337012201 - 47-295-1476 51 $833.18 $416.59
