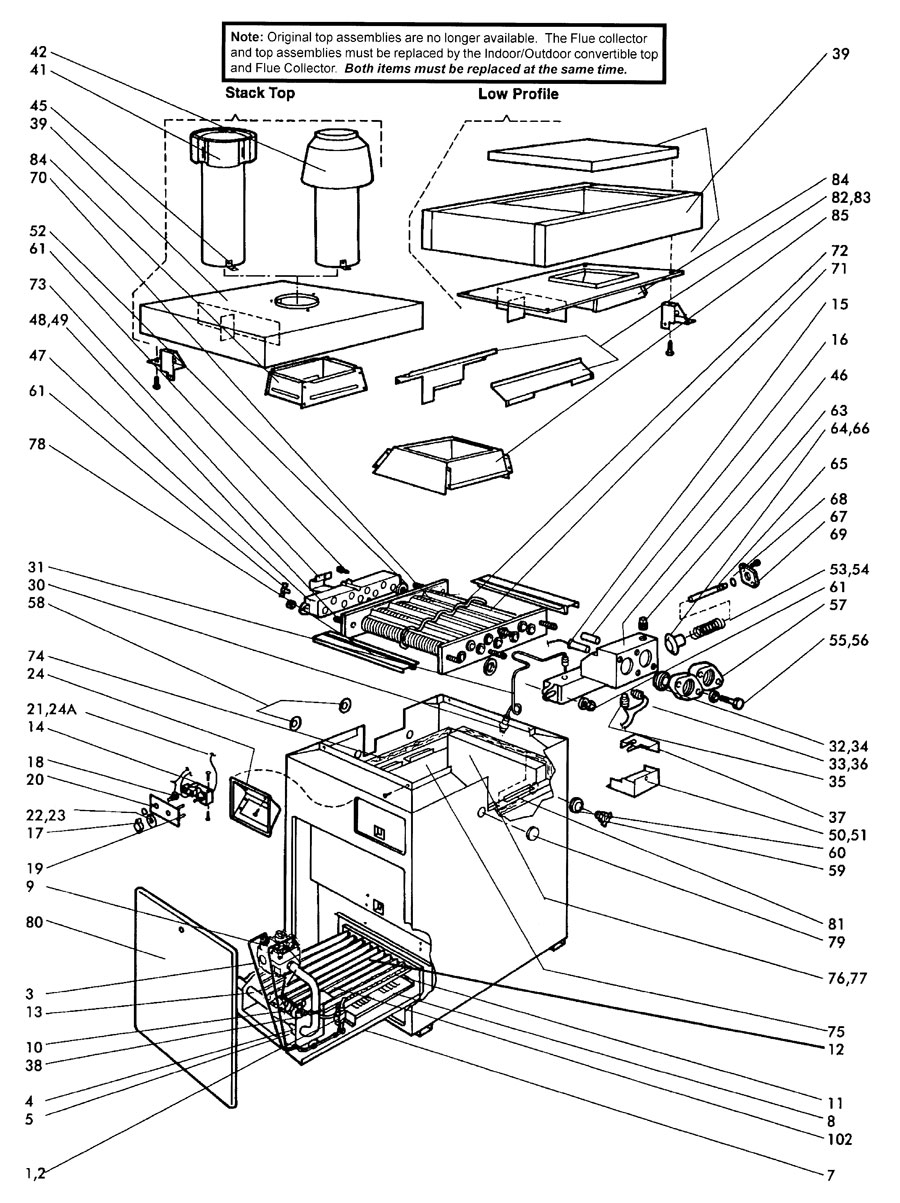

Swimming Pool Heater - Waterpik Laars XE Model EG Heater
| Item | Key | Retail | Price | Quantity | |
| 47-295-1484 - Nut, 3/8 - 16, Hex - F0003100 - 47-295-1484 | 51 | $3.38 | $1.69 |
|
|
| 47-295-1482 - Washer, Plain, 3/8 Inch - F0011100 - 47-295-1482 | 50 | $3.38 | $1.69 |
|
|
| 47-295-1480 - Dome Bolt, 2-1/2 Inch - F0046100 - 47-295-1480 | 49 | $4.54 | $2.27 |
|
|
| 47-295-1522 - Gas Orifice, Natural, 0K to 3K Ft. - L0032200 - 47-295-1522 | 10 | $5.12 | $2.56 |
|
|
| 47-295-1524 - Gas Orifice, LP, 0K to 5K Ft. - L0032900 - UPC - 788379739515 - 47-295-1524 | 10 | $5.12 | $2.56 |
|
|
| 47-295-1458 - High Limit Switch Retainer Clip - 10728500 - 47-295-1458 | 35 | $5.92 | $2.96 |
|
|
| 47-295-1282 - By Pass Valve Gasket - R0011400 - UPC - 052337011587 - 47-295-1282 | 68 | $5.96 | $2.98 |
|
|
| 47-295-1460 - High Limit Switch Retainer Boot - S0098900 - 47-295-1460 | 36 | $11.07 | $5.53 |
|
|
| 47-295-1276 - By Pass Valve Disc - R0011500 - UPC - 052337011594 - 47-295-1276 | 66 | $12.12 | $6.06 |
|
|
| 47-295-1316 - Fusible Link - R0012200 - UPC - 052337011655 - 47-295-1316 | 38 | $21.56 | $10.78 |
|
|
| 47-295-1500 - By Pass Spring, Red, 250 btu - S0061300 - UPC - 052337025867 - 47-295-1500 | 69 | $22.74 | $11.37 |
|
|
| 47-295-1498 - By Pass Spring, White, 175 btu - S0061400 - UPC - 052337025874 - 47-295-1498 | 69 | $22.74 | $11.37 |
|
|
| 47-295-1660 - By Pass Kit - R0013100 - UPC - 052337011693 - 47-295-1660 | 64 | $22.76 | $11.38 |
|
|
| 47-295-1636 - Orifice Assembly, Natural - W0018800 - 47-295-1636 | 4 | $24.48 | $12.24 |
|
|
| 47-295-1638 - Union Orifice Conn. Assembly - W0018900 - 47-295-1638 | 4 | $24.48 | $12.24 |
|
|
| 47-295-1626 - By Pass Valve Rod - S0079800 - 47-295-1626 | 65 | $26.54 | $13.27 |
|
|
| 47-295-1436 - Pilot Tubing - R0037000 - UPC - 052337012034 - 47-295-1436 | 3 | $28.58 | $14.29 |
|
|
| 47-295-1838 - By Pass Spring, Brown - S0061100 - 47-295-1838 | 69 | $35.68 | $17.84 |
|
|
| 47-295-1488 - Header Gasket (18 Ea) - R0050800 - UPC - 523370121958 - 47-295-1488 | 52 | $38.40 | $19.20 |
|
|
| 47-295-1494 - By Pass Valve Cap - S0069100 - 47-295-1494 | 67 | $48.36 | $24.18 |
|
|
| 47-319-1201 - 3925 Univ. Pressure Switch W/Brass Fittings - 3029P - 47-319-1201 | 30 | $48.56 | $24.28 |
|
|
| 47-295-1478 - Header Bolt Kit - R0057000 - UPC - 052337012287 - 47-295-1478 | 48 | $49.98 | $24.99 |
|
|
| 47-319-1063 - 3035 Pres. Sw., 25A, SPNO, 1/8 Inch NPT, 1-10 PSI - 3035 - 47-319-1063 | 30 | $55.34 | $27.67 |
|
|
| 47-295-1654 - On-Off Switch - R0094100 - 47-295-1654 | 18 | $64.76 | $32.38 |
|
|
| 47-295-1268 - High-limit Switch 135¦ F - R0022700 - UPC - 052337011938 - 47-295-1268 | 33 | $65.34 | $32.67 |
|
|
| 47-295-1270 - High-limit Switch, 150¦ F - R0023000 - UPC - 052337011945 - 47-295-1270 | 34 | $65.34 | $32.67 |
|
|
| 47-319-1027 - 3064 Pres. Sw., 25A, SPNO, 3/16 Inch Comp - 3064 - 47-319-1027 | 30 | $72.26 | $36.13 |
|
|
| 47-295-1622 - Flange, 1-1/2 Inch - S0053300 - 47-295-1622 | 54 | $92.46 | $46.23 |
|
|
| 47-295-1632 - Pilot Generator (Repl G/C Assemblies) - R0025500 - UPC - 052337011969 - 47-295-1632 | 2 | $106.84 | $53.42 |
|
|
| 47-295-1454 - Siphon Loop Assembly Kit - R0057800 - UPC - 052337012324 - 47-295-1454 | 31 | $110.38 | $55.19 |
|
|
| 47-295-1628 - Pilot Burner, Natural - R0027500 - UPC - 052337011976 - 47-295-1628 | 1 | $165.88 | $82.94 |
|
|
| 47-295-1630 - Pilot Burner, LP - R0027600 - UPC - 052337011983 - 47-295-1630 | 1 | $165.88 | $82.94 |
|
|
| 47-295-1658 - Flange Kit XE & Series 1 - R0031900 - UPC - 052337012027 - 47-295-1658 | 53 | $216.74 | $108.37 |
|
|
| 47-295-1652 - Temperature Control - R0058200 - UPC - 052337012355 - 47-295-1652 | 14 | $251.86 | $125.93 |
|
|
| 47-295-1474 - Return Header - R0058300 - UPC - 052337012362 - 47-295-1474 | 47 | $309.02 | $154.51 |
|
|
| 47-295-1618 - Inlet/Outlet Header - R0058400 - 47-295-1618 | 46 | $585.96 | $292.98 |
|
|
| 47-295-1642 - Gas Valve, Natural - R0027700 - UPC - 523370119900 - 47-295-1642 | 9 | $611.74 | $305.87 |
|
|
| 47-295-1644 - Gas Valve, LP - R0027800 - UPC - 523370120036 - 47-295-1644 | 9 | $621.10 | $310.55 |
|
|
| 47-295-1476 - Return Header, Bronze - R0054600 - UPC - 052337012201 - 47-295-1476 | 47 | $639.82 | $319.91 |
|
|
| 47-295-1506 - Heat Exchanger Tube Assembly, 125 - R0018101 - UPC - 523370118538 - 47-295-1506 | 70 | $1,467.54 | $733.77 |
|
|
| 47-295-1508 - Heat Exchanger Tube Assembly, 175 - R0018102 - UPC - 523370118606 - 47-295-1508 | 70 | $1,734.14 | $867.07 |
|
|
| 47-295-1510 - Heat Exchanger Tube Assembly, 250 - R0018103 - UPC - 052337011877 - 47-295-1510 | 70 | $2,005.20 | $1,002.60 |
|
|
| 47-295-1512 - Heat Exchanger Tube Assembly, 325 - R0018104 - UPC - 052337011884 - 47-295-1512 | 70 | $2,280.12 | $1,140.06 |
|
|
| 47-295-1514 - Heat Exchanger Tube Assembly, 400 - R0018105 - UPC - 052337011891 - 47-295-1514 | 70 | $2,497.96 | $1,248.98 |
|
