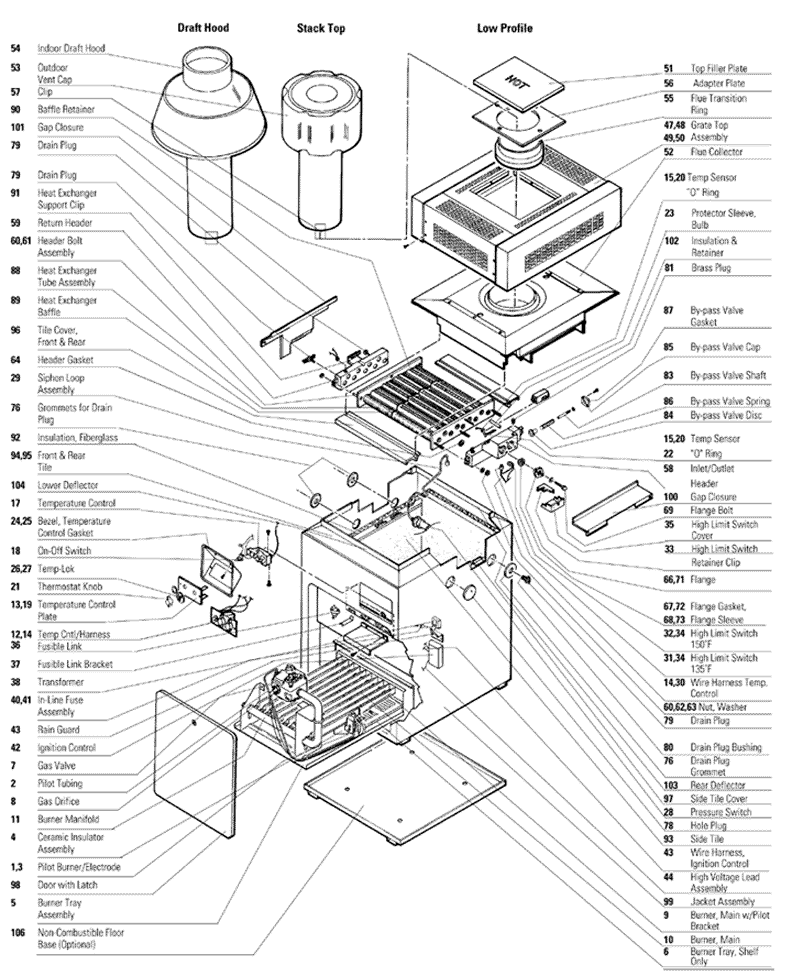

Teledyne SERIES ONE - EPS-250

Teledyne SERIES ONE - EPS-250

Item Key Retail Price Quantity
47-295-1450 - TEMP-LOK Stop Plate - 10583100 - 47-295-1450 26 $6.34 $3.17
47-295-1416 - Temp Control Bulb Inch O Inch -Ring - E0116400 - UPC - 523370046336 - 47-295-1416 22 $12.06 $6.03
47-295-1522 - Gas Orifice, Natural, 0K to 3K Ft. - L0032200 - UPC - 052337005883 - 47-295-1522 8 $13.54 $6.77
47-295-1524 - Gas Orifice, LP, 0K to 5K Ft. - L0032900 - UPC - 788379739515 - 47-295-1524 8 $13.54 $6.77
47-295-1120 - Thermostat Sleeve - 10444900 - UPC - 523370000864 - 47-295-1120 23 $13.54 $6.77
47-295-1626 - By Pass Valve Rod - S0079800 - 47-295-1626 83 $13.60 $6.80
47-295-1460 - High-Limit Switch Wire Harness SUB WITH PART 47-295-1468 - Replaced By Part 47-295-1468 - S0098900 - 47-295-1460 34 $13.80 $6.90
47-295-1624 - Pipe Plug ? Inch NPT - P0026800 - UPC - 052337010856 - 47-295-1624 79 $16.36 $8.18
47-295-1292 - Flange Sleeve, 2 Inch - S0078200 - UPC - 523370259354 - 47-295-1292 73 $30.88 $15.44
47-295-1466 - In Line Fuse Assembly - 10480000 - 47-295-1466 41 $36.62 $18.31
47-295-1360 - Flange Gasket, 1 ? Inch -2 Inch - S0078100 - UPC - 052337025928 - 47-295-1360 75 $37.30 $18.65
47-295-1660 - By Pass Kit - R0013100 - UPC - 052337011693 - 47-295-1660 82 $39.50 $19.75
47-295-1436 - Pilot Tubing - 1/4 Inch - 1/4 Inch Pilot Tubing - Newer Models (84' - 89' was 1/8 Inch and is no longer available) - R0037000 - UPC - 052337012034 - 47-295-1436 2 $41.12 $20.56
10535303 - Laars250 Vent Adpt.Plate - 10535303 56 $44.84 $22.42
47-295-1432 - Burner, W/Pilot Bracket - 10457500 - UPC - 523370002226 - 47-295-1432 9 $46.36 $23.18
R0058000 - Wire Harness Laars - R0058000 20A $47.72 $23.86
R0058100 - Wire Harness Complete Eps - R0058100 39 $52.02 $26.01
47-295-1488 - Header Gasket (18 Ea) - R0050800 - UPC - 523370121958 - 47-295-1488 64 $54.08 $27.04
47-295-1356 - Flange Gasket, 2 Inch - S0078000 - UPC - 052337025911 - 47-295-1356 72 $57.92 $28.96
47-295-1430 - Ceramic Insulator Assembly - R0011600 - UPC - 052337058179 - 47-295-1430 4 $58.52 $29.26
R0040400 - Relief Valve Laars - R0040400 - $66.08 $33.04
47-295-1478 - Header Bolt Kit - R0057000 - UPC - 052337012287 - 47-295-1478 60 $70.60 $35.30
47-295-1270 - High-limit Switch, 150? F - R0023000 - UPC - 052337011945 - 47-295-1270 32 $78.34 $39.17
47-295-1654 - On-Off Switch - R0094100 - 47-295-1654 18 $80.20 $40.10
47-295-1604 - Flame Sensor - W0037500 - UPC - 052337027090 - 47-295-1604 3 $80.34 $40.17
47-295-1268 - High-limit Switch 135? F - R0022700 - UPC - 052337011938 - 47-295-1268 31 $80.88 $40.44
47-295-1602 - Pilot Burner - W0038300 - UPC - 052337027106 - 47-295-1602 1 $109.48 $54.74
47-295-1200 - Flange, 2 Inch - 10573500 - UPC - 523370004442 - 47-295-1200 71 $115.18 $57.59
R0058700 - Wire Harness For Remote Control - R0058700 - $116.40 $58.20
47-295-1318 - Transformer - R0061100 - UPC - 523370124478 - 47-295-1318 38 $130.96 $65.48
47-295-1282 - By Pass Valve Gasket - R0011400 - UPC - 052337011587 - 47-295-1282 87 $133.66 $66.83
47-295-1276 - By Pass Valve Disc - R0011500 - UPC - 052337011594 - 47-295-1276 84 $133.66 $66.83
47-295-1454 - Siphon Loop Assembly Kit - R0057800 - UPC - 052337012324 - 47-295-1454 29 $140.84 $70.42
47-295-1266 - High-limit Switch Assembly - R0023200 - UPC - 052337011952 - 47-295-1266 30 $149.38 $74.69
10561401 - Indoor Drafthood 125 - 10561401 54 $179.30 $89.65
47-295-1414 - Temperature Sensor - R0011800 - UPC - 052337011617 - 47-295-1414 15 $190.20 $95.10
10561403 - 250 Indoor Drafthood - 10561403 54 $235.48 $117.74
47-295-1112 - Mechanical Temperature Control Replacement Kit - R0318800 - UPC - 052337014502 - 47-295-1112 17 $347.80 $173.90
47-295-1452 - Mechanical Temperature Control Replacement Kit SUB WITH PART 47-295-1112 - Replaced By Part 47-295-1112 - S0070000 - 47-295-1452 25 $347.80 $173.90
47-295-1354 - Flange and Gasket Assembly (Set of 2) - R0055000 - UPC - 052337012249 - 47-295-1354 70 $395.86 $197.93
47-295-1474 - Return Header - R0058300 - UPC - 052337012362 - 47-295-1474 59 $398.76 $199.38
R0058400 - Inlet/Outlet Header W/ Bypass Valve - R0058400 58 $586.22 $293.11
47-295-1614 - Ignition Control - R0011900 - UPC - 052337011624 - 47-295-1614 42 $586.48 $293.24
47-295-1412 - Temp Control Assembly - R0011700 - UPC - 523370116008 - 47-295-1412 12 $749.14 $374.57
47-295-1476 - Return Header, Bronze - R0054600 - UPC - 052337012201 - 47-295-1476 59 $833.18 $416.59
R0054700 - Inlet/Outlet Header, Bronze, 1 1/2 - R0054700 58 $971.24 $485.62
47-295-1470 - Inlet/Outlet Header, 2 Inch - R0056400 - UPC - 052337012256 - 47-295-1470 58 $1,004.20 $502.10
10458301 - Burner Tray Assembly, Nat 125 - 10458301 5 $1,181.80 $590.90
10458302 - Burner Tray Assembly, Nat 175 - 10458302 5 $1,211.68 $605.84
10458305 - Burner Tray Assembly, Nat 400 - 10458305 5 $1,422.50 $711.25
47-295-1472 - Inlet/Outlet Header, Bronze, 2 Inch - R0016800 - UPC - 052337011846 - 47-295-1472 58 $1,555.36 $777.68
