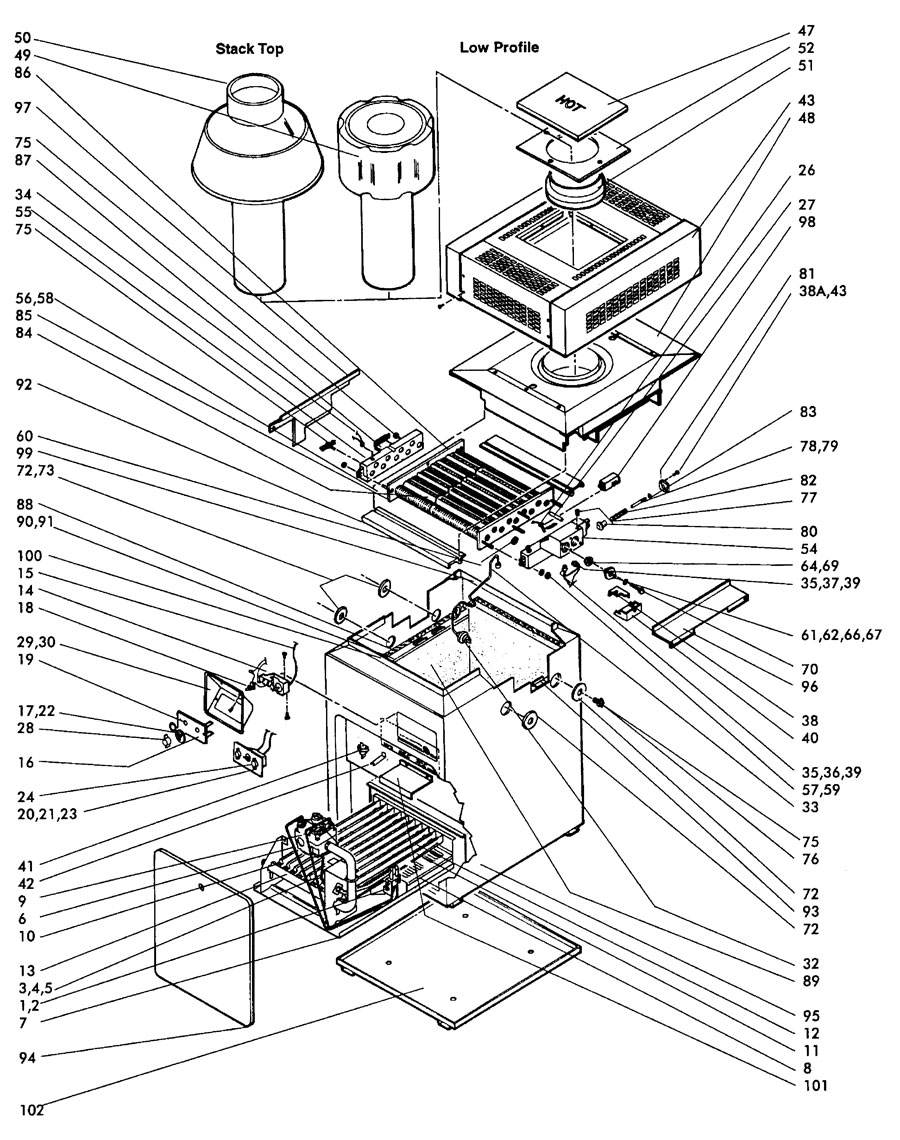

Swimming Pool Heater - Waterpik Laars EPG & EPM Series Heaters (Mfg. 1990-92)
%20--%20Blow%20Up.jpg)
If you do not see the part you need listed below, it may be discontinued or we no longer carry it. Some parts listed may be Special Order and may take up to 2 - 3 weeks for delivery.
| Item | Key | Retail | Price | Quantity | |
| 47-295-1484 - Nut, 3/8 - 16, Hex - F0003100 - 47-295-1484 | 57 | $3.38 | $1.69 |
|
|
| 47-295-1482 - Washer, Plain, 3/8 Inch - F0011100 - 47-295-1482 | 59 | $3.38 | $1.69 |
|
|
| 47-295-1450 - TEMP-LOK Stop Plate - 10583100 - 47-295-1450 | 22 | $3.38 | $1.69 |
|
|
| 47-295-1416 - Temp Control Bulb Inch O Inch -Ring - E0116400 - UPC - 523370046336 - 47-295-1416 | 26 | $3.98 | $1.99 |
|
|
| 47-295-1480 - Dome Bolt, 2-1/2 Inch - F0046100 - 47-295-1480 | 58 | $4.54 | $2.27 |
|
|
| 47-295-1522 - Gas Orifice, Natural, 0K to 3K Ft. - L0032200 - 47-295-1522 | 10 | $5.12 | $2.56 |
|
|
| 47-295-1524 - Gas Orifice, LP, 0K to 5K Ft. - L0032900 - UPC - 788379739515 - 47-295-1524 | 10 | $5.12 | $2.56 |
|
|
| 47-295-1282 - By Pass Valve Gasket - R0011400 - UPC - 052337011587 - 47-295-1282 | 83 | $5.96 | $2.98 |
|
|
| 47-295-1460 - High Limit Switch Retainer Boot - S0098900 - 47-295-1460 | 39 | $11.07 | $5.53 |
|
|
| 47-295-1276 - By Pass Valve Disc - R0011500 - UPC - 052337011594 - 47-295-1276 | 80 | $12.12 | $6.06 |
|
|
| 47-295-1504 - By Pass Spring, 2 Inch Header, Black, 400 - S0070100 - UPC - 052337025898 - 47-295-1504 | 82 | $15.38 | $7.69 |
|
|
| 47-295-1292 - Flange Sleeve, 2 Inch - S0078200 - UPC - 523370259354 - 47-295-1292 | 69 | $15.58 | $7.79 |
|
|
| 47-295-1360 - Flange Gasket, 1-1/2 Inch -2 Inch - S0078100 - UPC - 052337025928 - 47-295-1360 | 71 | $16.56 | $8.28 |
|
|
| 47-295-1316 - Fusible Link - R0012200 - UPC - 052337011655 - 47-295-1316 | 41 | $21.56 | $10.78 |
|
|
| 47-295-1418 - Knob, Single Bar - R0099900 - 47-295-1418 | 24 | $21.56 | $10.78 |
|
|
| 47-295-1500 - By Pass Spring, Red, 250 btu - S0061300 - UPC - 052337025867 - 47-295-1500 | 82 | $22.74 | $11.37 |
|
|
| 47-295-1498 - By Pass Spring, White, 175 btu - S0061400 - UPC - 052337025874 - 47-295-1498 | 82 | $22.74 | $11.37 |
|
|
| 47-295-1660 - By Pass Kit - R0013100 - UPC - 052337011693 - 47-295-1660 | 78 | $22.76 | $11.38 |
|
|
| 47-295-1496 - By Pass Spring, 2 Inch Header, Purple, 125 btu - S0079900 - 47-295-1496 | 82 | $23.30 | $11.65 |
|
|
| 47-295-1636 - Orifice Assembly, Natural - W0018800 - 47-295-1636 | 4 | $24.48 | $12.24 |
|
|
| 47-295-1638 - Union Orifice Conn. Assembly - W0018900 - 47-295-1638 | 4 | $24.48 | $12.24 |
|
|
| 47-295-1626 - By Pass Valve Rod - S0079800 - 47-295-1626 | 79 | $26.54 | $13.27 |
|
|
| 47-295-1356 - Flange Gasket, 2 Inch - S0078000 - UPC - 052337025911 - 47-295-1356 | 68 | $35.46 | $17.73 |
|
|
| 47-295-1526 - Main Burner - L0052300 - UPC - 052337005944 - 47-295-1526 | 12 | $35.46 | $17.73 |
|
|
| 47-295-1488 - Header Gasket (18 Ea) - R0050800 - UPC - 523370121958 - 47-295-1488 | 60 | $38.40 | $19.20 |
|
|
| 47-295-1494 - By Pass Valve Cap - S0069100 - 47-295-1494 | 81 | $48.36 | $24.18 |
|
|
| 47-319-1201 - 3925 Univ. Pressure Switch W/Brass Fittings - 3029P - 47-319-1201 | 32 | $48.56 | $24.28 |
|
|
| 47-295-1478 - Header Bolt Kit - R0057000 - UPC - 052337012287 - 47-295-1478 | 56 | $49.98 | $24.99 |
|
|
| 47-319-1063 - 3035 Pres. Sw., 25A, SPNO, 1/8 Inch NPT, 1-10 PSI - 3035 - 47-319-1063 | 32 | $55.34 | $27.67 |
|
|
| 47-295-1654 - On-Off Switch - R0094100 - 47-295-1654 | 18 | $64.76 | $32.38 |
|
|
| 47-295-1268 - High-limit Switch 135¦ F - R0022700 - UPC - 052337011938 - 47-295-1268 | 36 | $65.34 | $32.67 |
|
|
| 47-295-1270 - High-limit Switch, 150¦ F - R0023000 - UPC - 052337011945 - 47-295-1270 | 37 | $65.34 | $32.67 |
|
|
| 47-319-1027 - 3064 Pres. Sw., 25A, SPNO, 3/16 Inch Comp - 3064 - 47-319-1027 | 32 | $72.26 | $36.13 |
|
|
| 47-295-1656 - Redundant High-limit, 275¦ F - R0012800 - 47-295-1656 | 34 | $72.60 | $36.30 |
|
|
| 47-295-1622 - Flange, 1-1/2 Inch - S0053300 - 47-295-1622 | 62 | $92.46 | $46.23 |
|
|
| 47-295-1200 - Flange, 2 Inch - 10573500 - UPC - 523370004442 - 47-295-1200 | 67 | $100.44 | $50.22 |
|
|
| 47-295-1632 - Pilot Generator (Repl G/C Assemblies) - R0025500 - UPC - 052337011969 - 47-295-1632 | 2 | $106.84 | $53.42 |
|
|
| 47-295-1454 - Siphon Loop Assembly Kit - R0057800 - UPC - 052337012324 - 47-295-1454 | 33 | $110.38 | $55.19 |
|
|
| 47-295-1428 - Pilot Generator - W0036901 - UPC - 052337027083 - 47-295-1428 | 2 | $112.64 | $56.32 |
|
|
| 47-295-1414 - Temperature Sensor - R0011800 - UPC - 052337011617 - 47-295-1414 | 25 | $151.78 | $75.89 |
|
|
| 47-295-1630 - Pilot Burner, LP - R0027600 - UPC - 052337011983 - 47-295-1630 | 1 | $165.88 | $82.94 |
|
|
| 47-295-1628 - Pilot Burner, Natural - R0027500 - UPC - 052337011976 - 47-295-1628 | 1 | $165.88 | $82.94 |
|
|
| 47-295-1658 - Flange Kit XE & Series 1 - R0031900 - UPC - 052337012027 - 47-295-1658 | 61 | $216.74 | $108.37 |
|
|
| 47-295-1652 - Temperature Control - R0058200 - UPC - 052337012355 - 47-295-1652 | 14 | $251.86 | $125.93 |
|
|
| 47-295-1354 - Flange and Gasket Assembly (Set of 2) - R0055000 - UPC - 052337012249 - 47-295-1354 | 66 | $295.00 | $147.50 |
|
|
| 47-295-1474 - Return Header - R0058300 - UPC - 052337012362 - 47-295-1474 | 55 | $309.02 | $154.51 |
|
|
| 47-295-1618 - Inlet/Outlet Header - R0058400 - 47-295-1618 | 54 | $585.96 | $292.98 |
|
|
| 47-295-1642 - Gas Valve, Natural - R0027700 - UPC - 523370119900 - 47-295-1642 | 9 | $611.74 | $305.87 |
|
|
| 47-295-1644 - Gas Valve, LP - R0027800 - UPC - 523370120036 - 47-295-1644 | 9 | $621.10 | $310.55 |
|
|
| 47-295-1476 - Return Header, Bronze - R0054600 - UPC - 052337012201 - 47-295-1476 | 55 | $639.82 | $319.91 |
|
|
| 47-295-1470 - Inlet/Outlet Header, 2 Inch - R0056400 - 47-295-1470 | 54 | $740.52 | $370.26 |
|
|
| 47-295-1472 - Inlet/Outlet Header, Bronze, 2 Inch - R0016800 - UPC - 052337011846 - 47-295-1472 | 54 | $1,329.22 | $664.61 |
|
|
| 47-295-1506 - Heat Exchanger Tube Assembly, 125 - R0018101 - UPC - 523370118538 - 47-295-1506 | 84 | $1,467.54 | $733.77 |
|
|
| 47-295-1508 - Heat Exchanger Tube Assembly, 175 - R0018102 - UPC - 523370118606 - 47-295-1508 | 84 | $1,734.14 | $867.07 |
|
|
| 47-295-1510 - Heat Exchanger Tube Assembly, 250 - R0018103 - UPC - 052337011877 - 47-295-1510 | 84 | $2,005.20 | $1,002.60 |
|
|
| 47-295-1512 - Heat Exchanger Tube Assembly, 325 - R0018104 - UPC - 052337011884 - 47-295-1512 | 84 | $2,280.12 | $1,140.06 |
|
|
| 47-295-1514 - Heat Exchanger Tube Assembly, 400 - R0018105 - UPC - 052337011891 - 47-295-1514 | 84 | $2,497.96 | $1,248.98 |
|
