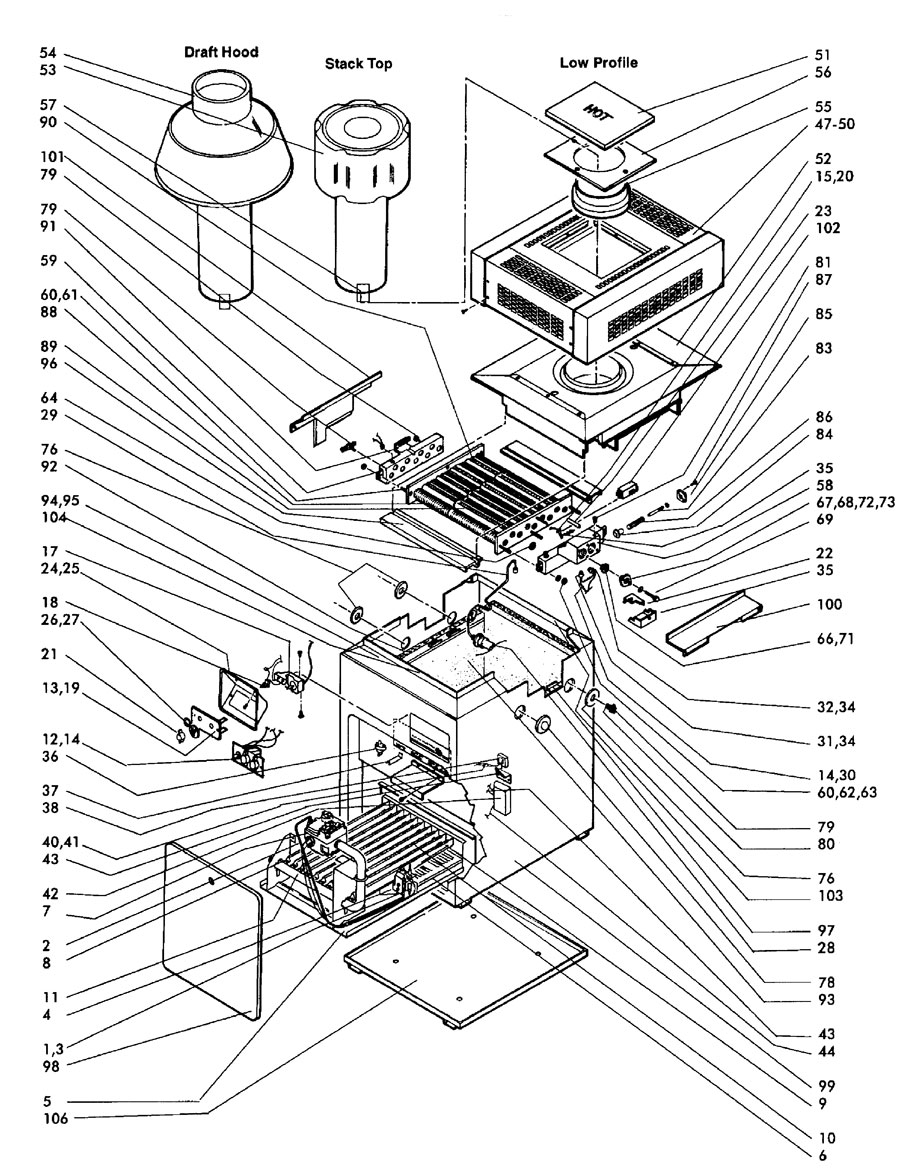

Swimming Pool Heater - Waterpik Laars EPC & EPS Series Heaters (Mfg. 1990-92)
%20--%20Blow%20Up.jpg)
If you do not see the part you need listed below, it may be discontinued or we no longer carry it. Some parts listed may be Special Order and may take up to 2 - 3 weeks for delivery.
| Item | Key | Retail | Price | Quantity | |
| 47-295-1450 - TEMP-LOK Stop Plate - 10583100 - 47-295-1450 | 26 | $3.38 | $1.69 |
|
|
| 47-295-1484 - Nut, 3/8 - 16, Hex - F0003100 - 47-295-1484 | 63 | $3.38 | $1.69 |
|
|
| 47-295-1482 - Washer, Plain, 3/8 Inch - F0011100 - 47-295-1482 | 62 | $3.38 | $1.69 |
|
|
| 47-295-1416 - Temp Control Bulb Inch O Inch -Ring - E0116400 - UPC - 523370046336 - 47-295-1416 | 22 | $3.98 | $1.99 |
|
|
| 47-295-1480 - Dome Bolt, 2-1/2 Inch - F0046100 - 47-295-1480 | 61 | $4.54 | $2.27 |
|
|
| 47-295-1522 - Gas Orifice, Natural, 0K to 3K Ft. - L0032200 - 47-295-1522 | 8 | $5.12 | $2.56 |
|
|
| 47-295-1524 - Gas Orifice, LP, 0K to 5K Ft. - L0032900 - UPC - 788379739515 - 47-295-1524 | 8 | $5.12 | $2.56 |
|
|
| 47-295-1458 - High Limit Switch Retainer Clip - 10728500 - 47-295-1458 | 33 | $5.92 | $2.96 |
|
|
| 47-295-1282 - By Pass Valve Gasket - R0011400 - UPC - 052337011587 - 47-295-1282 | 87 | $5.96 | $2.98 |
|
|
| 47-295-1460 - High Limit Switch Retainer Boot - S0098900 - 47-295-1460 | 34 | $11.07 | $5.53 |
|
|
| 47-295-1276 - By Pass Valve Disc - R0011500 - UPC - 052337011594 - 47-295-1276 | 84 | $12.12 | $6.06 |
|
|
| 47-295-1504 - By Pass Spring, 2 Inch Header, Black, 400 - S0070100 - UPC - 052337025898 - 47-295-1504 | 86 | $15.38 | $7.69 |
|
|
| 47-295-1292 - Flange Sleeve, 2 Inch - S0078200 - UPC - 523370259354 - 47-295-1292 | 73 | $15.58 | $7.79 |
|
|
| 47-295-1360 - Flange Gasket, 1-1/2 Inch -2 Inch - S0078100 - UPC - 052337025928 - 47-295-1360 | 75 | $16.56 | $8.28 |
|
|
| 47-295-1316 - Fusible Link - R0012200 - UPC - 052337011655 - 47-295-1316 | 36 | $21.56 | $10.78 |
|
|
| 47-295-1500 - By Pass Spring, Red, 250 btu - S0061300 - UPC - 052337025867 - 47-295-1500 | 86 | $22.74 | $11.37 |
|
|
| 47-295-1498 - By Pass Spring, White, 175 btu - S0061400 - UPC - 052337025874 - 47-295-1498 | 86 | $22.74 | $11.37 |
|
|
| 47-295-1496 - By Pass Spring, 2 Inch Header, Purple, 125 btu - S0079900 - 47-295-1496 | 86 | $23.30 | $11.65 |
|
|
| 47-295-1466 - In Line Fuse Assembly - 10480000 - 47-295-1466 | 41 | $25.08 | $12.54 |
|
|
| 47-295-1626 - By Pass Valve Rod - S0079800 - 47-295-1626 | 83 | $26.54 | $13.27 |
|
|
| 47-295-1324 - Fuse, 1 + Amp (5 Pcs) - R0012300 - 47-295-1324 | 40 | $27.98 | $13.99 |
|
|
| 47-295-1436 - Pilot Tubing - R0037000 - UPC - 052337012034 - 47-295-1436 | 2 | $28.58 | $14.29 |
|
|
| 47-295-1356 - Flange Gasket, 2 Inch - S0078000 - UPC - 052337025911 - 47-295-1356 | 72 | $35.46 | $17.73 |
|
|
| 47-295-1526 - Main Burner - L0052300 - UPC - 052337005944 - 47-295-1526 | 10 | $35.46 | $17.73 |
|
|
| 47-295-1432 - Burner, W/Pilot Bracket - 10457500 - UPC - 523370002226 - 47-295-1432 | 9 | $36.04 | $18.02 |
|
|
| 47-295-1488 - Header Gasket (18 Ea) - R0050800 - UPC - 523370121958 - 47-295-1488 | 64 | $38.40 | $19.20 |
|
|
| 47-295-1430 - Ceramic Insulator Assembly - R0011600 - 47-295-1430 | 4 | $48.24 | $24.12 |
|
|
| 47-295-1494 - By Pass Valve Cap - S0069100 - 47-295-1494 | 85 | $48.36 | $24.18 |
|
|
| 47-295-1478 - Header Bolt Kit - R0057000 - UPC - 052337012287 - 47-295-1478 | 60 | $49.98 | $24.99 |
|
|
| 47-319-1063 - 3035 Pres. Sw., 25A, SPNO, 1/8 Inch NPT, 1-10 PSI - 3035 - 47-319-1063 | 28 | $55.34 | $27.67 |
|
|
| 47-295-1654 - On-Off Switch - R0094100 - 47-295-1654 | 18 | $64.76 | $32.38 |
|
|
| 47-295-1268 - High-limit Switch 135¦ F - R0022700 - UPC - 052337011938 - 47-295-1268 | 31 | $65.34 | $32.67 |
|
|
| 47-295-1270 - High-limit Switch, 150¦ F - R0023000 - UPC - 052337011945 - 47-295-1270 | 32 | $65.34 | $32.67 |
|
|
| 47-295-1604 - Flame Sensor - W0037500 - UPC - 052337027090 - 47-295-1604 | 3 | $65.96 | $32.98 |
|
|
| 47-319-1027 - 3064 Pres. Sw., 25A, SPNO, 3/16 Inch Comp - 3064 - 47-319-1027 | 28 | $72.26 | $36.13 |
|
|
| 47-295-1622 - Flange, 1-1/2 Inch - S0053300 - 47-295-1622 | 66 | $92.46 | $46.23 |
|
|
| 47-295-1602 - Pilot Burner - W0038300 - UPC - 052337027106 - 47-295-1602 | 1 | $96.86 | $48.43 |
|
|
| 47-295-1200 - Flange, 2 Inch - 10573500 - UPC - 523370004442 - 47-295-1200 | 71 | $100.44 | $50.22 |
|
|
| 47-295-1454 - Siphon Loop Assembly Kit - R0057800 - UPC - 052337012324 - 47-295-1454 | 29 | $110.38 | $55.19 |
|
|
| 47-295-1600 - Pilot Burner/Electrode, NAT, IID - R0061600 - UPC - 078837977811 - 47-295-1600 | 1 | $144.20 | $72.10 |
|
|
| 47-295-1414 - Temperature Sensor - R0011800 - UPC - 052337011617 - 47-295-1414 | 15 | $151.78 | $75.89 |
|
|
| 47-295-1474 - Return Header - R0058300 - UPC - 052337012362 - 47-295-1474 | 59 | $309.02 | $154.51 |
|
|
| 47-295-1610 - Gas Valve, LPG - R0028200 - 47-295-1610 | 7 | $377.18 | $188.59 |
|
|
| 47-295-1608 - Gas Valve, Natural, 250-400 - R0038400 - 47-295-1608 | 7 | $506.98 | $253.49 |
|
|
| 47-295-1476 - Return Header, Bronze - R0054600 - UPC - 052337012201 - 47-295-1476 | 59 | $639.82 | $319.91 |
|
|
| 47-295-1470 - Inlet/Outlet Header, 2 Inch - R0056400 - 47-295-1470 | 58 | $740.52 | $370.26 |
|
|
| 47-295-1472 - Inlet/Outlet Header, Bronze, 2 Inch - R0016800 - UPC - 052337011846 - 47-295-1472 | 58 | $1,329.22 | $664.61 |
|
|
| 47-295-1506 - Heat Exchanger Tube Assembly, 125 - R0018101 - UPC - 523370118538 - 47-295-1506 | 88 | $1,467.54 | $733.77 |
|
|
| 47-295-1508 - Heat Exchanger Tube Assembly, 175 - R0018102 - UPC - 523370118606 - 47-295-1508 | 88 | $1,734.14 | $867.07 |
|
|
| 47-295-1510 - Heat Exchanger Tube Assembly, 250 - R0018103 - UPC - 052337011877 - 47-295-1510 | 88 | $2,005.20 | $1,002.60 |
|
|
| 47-295-1512 - Heat Exchanger Tube Assembly, 325 - R0018104 - UPC - 052337011884 - 47-295-1512 | 88 | $2,280.12 | $1,140.06 |
|
|
| 47-295-1514 - Heat Exchanger Tube Assembly, 400 - R0018105 - UPC - 052337011891 - 47-295-1514 | 88 | $2,497.96 | $1,248.98 |
|
