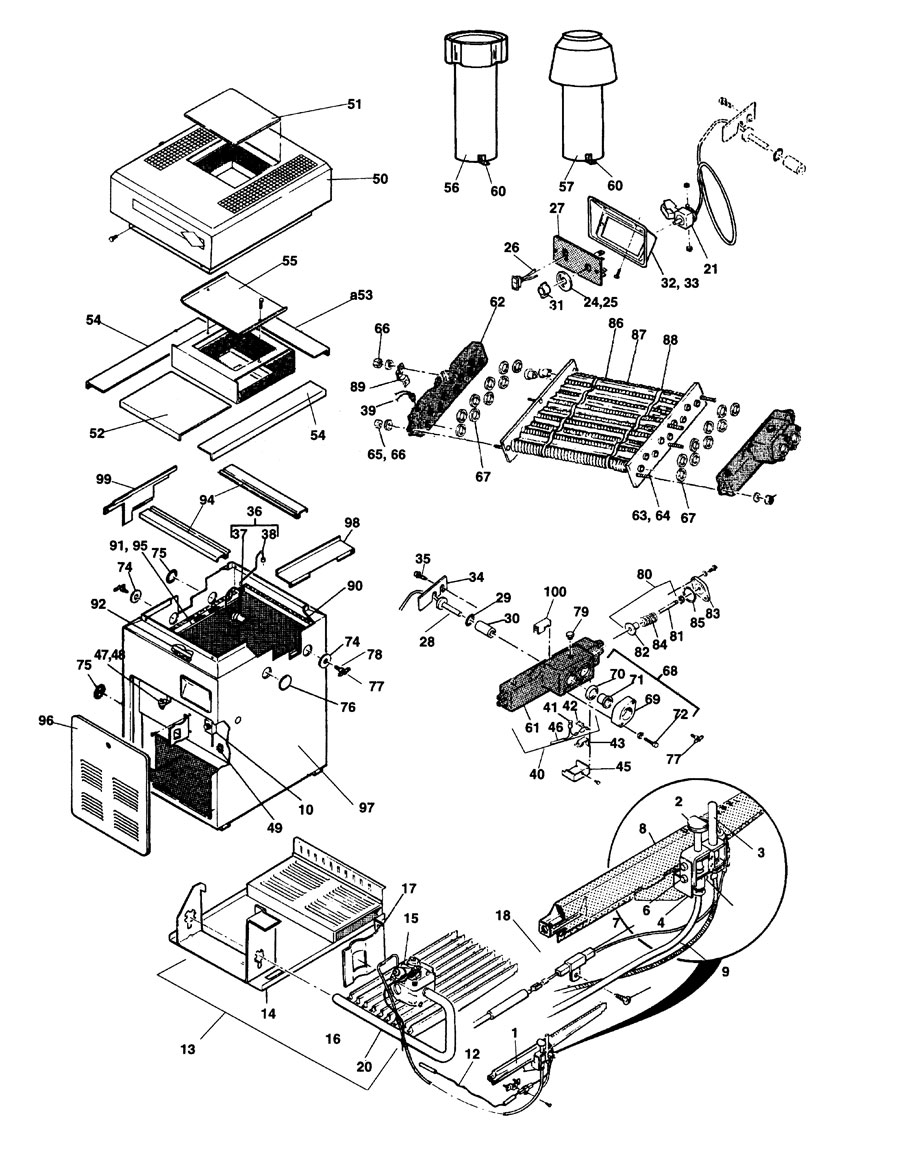

Swimming Pool Heater - Waterpik Laars Series 2 Model ESG (Mfg 1993-96)
%20--%20Blow%20Up.jpg)
If you do not see the part you need listed below, it may be discontinued or we no longer carry it. Some parts listed may be Special Order and may take up to 2 - 3 weeks for delivery.
| Item | Key | Retail | Price | Quantity | |
| 47-295-1484 - Nut, 3/8 - 16, Hex - F0003100 - 47-295-1484 | 66 | $3.38 | $1.69 |
|
|
| 47-295-1482 - Washer, Plain, 3/8 Inch - F0011100 - 47-295-1482 | 65 | $3.38 | $1.69 |
|
|
| 47-295-1416 - Temp Control Bulb Inch O Inch -Ring - E0116400 - UPC - 523370046336 - 47-295-1416 | 29 | $3.98 | $1.99 |
|
|
| 47-295-1480 - Dome Bolt, 2-1/2 Inch - F0046100 - 47-295-1480 | 64 | $4.54 | $2.27 |
|
|
| 47-295-1522 - Gas Orifice, Natural, 0K to 3K Ft. - L0032200 - 47-295-1522 | 16 | $5.12 | $2.56 |
|
|
| 47-295-1524 - Gas Orifice, LP, 0K to 5K Ft. - L0032900 - UPC - 788379739515 - 47-295-1524 | 16 | $5.12 | $2.56 |
|
|
| 47-295-1458 - High Limit Switch Retainer Clip - 10728500 - 47-295-1458 | 43 | $5.92 | $2.96 |
|
|
| 47-295-1282 - By Pass Valve Gasket - R0011400 - UPC - 052337011587 - 47-295-1282 | 85 | $5.96 | $2.98 |
|
|
| 47-295-1460 - High Limit Switch Retainer Boot - S0098900 - 47-295-1460 | 44 | $11.07 | $5.53 |
|
|
| 47-295-1276 - By Pass Valve Disc - R0011500 - UPC - 052337011594 - 47-295-1276 | 82 | $12.12 | $6.06 |
|
|
| 47-295-1504 - By Pass Spring, 2 Inch Header, Black, 400 - S0070100 - UPC - 052337025898 - 47-295-1504 | 84 | $15.38 | $7.69 |
|
|
| 47-295-1292 - Flange Sleeve, 2 Inch - S0078200 - UPC - 523370259354 - 47-295-1292 | 71 | $15.58 | $7.79 |
|
|
| 47-295-1360 - Flange Gasket, 1-1/2 Inch -2 Inch - S0078100 - UPC - 052337025928 - 47-295-1360 | 73 | $16.56 | $8.28 |
|
|
| 47-295-1316 - Fusible Link - R0012200 - UPC - 052337011655 - 47-295-1316 | 47 | $21.56 | $10.78 |
|
|
| 47-295-1500 - By Pass Spring, Red, 250 btu - S0061300 - UPC - 052337025867 - 47-295-1500 | 84 | $22.74 | $11.37 |
|
|
| 47-295-1498 - By Pass Spring, White, 175 btu - S0061400 - UPC - 052337025874 - 47-295-1498 | 84 | $22.74 | $11.37 |
|
|
| 47-295-1660 - By Pass Kit - R0013100 - UPC - 052337011693 - 47-295-1660 | 80 | $22.76 | $11.38 |
|
|
| 47-295-1496 - By Pass Spring, 2 Inch Header, Purple, 125 btu - S0079900 - 47-295-1496 | 84 | $23.30 | $11.65 |
|
|
| 47-295-1462 - Terminal Block - R0097800 - 47-295-1462 | 49 | $25.64 | $12.82 |
|
|
| 47-295-1436 - Pilot Tubing - R0037000 - UPC - 052337012034 - 47-295-1436 | 9 | $28.58 | $14.29 |
|
|
| 47-295-1728 - Ceramic Insulator Assembly - R0099300 - UPC - 052337012959 - 47-295-1728 | 7 | $35.46 | $17.73 |
|
|
| 47-295-1526 - Main Burner - L0052300 - UPC - 052337005944 - 47-295-1526 | 19 | $35.46 | $17.73 |
|
|
| 47-295-1356 - Flange Gasket, 2 Inch - S0078000 - UPC - 052337025911 - 47-295-1356 | 70 | $35.46 | $17.73 |
|
|
| 47-295-1432 - Burner, W/Pilot Bracket - 10457500 - UPC - 523370002226 - 47-295-1432 | 8 | $36.04 | $18.02 |
|
|
| 47-295-1488 - Header Gasket (18 Ea) - R0050800 - UPC - 523370121958 - 47-295-1488 | 67 | $38.40 | $19.20 |
|
|
| 47-295-1492 - Bypass Valve Rod Kit - R0391800 - 47-295-1492 | 81 | $47.04 | $23.52 |
|
|
| 47-295-1494 - By Pass Valve Cap - S0069100 - 47-295-1494 | 83 | $48.36 | $24.18 |
|
|
| 47-295-1478 - Header Bolt Kit - R0057000 - UPC - 052337012287 - 47-295-1478 | 63 | $49.98 | $24.99 |
|
|
| 47-319-1063 - 3035 Pres. Sw., 25A, SPNO, 1/8 Inch NPT, 1-10 PSI - 3035 - 47-319-1063 | 37 | $55.34 | $27.67 |
|
|
| 47-295-1654 - On-Off Switch - R0094100 - 47-295-1654 | 26 | $64.76 | $32.38 |
|
|
| 47-295-1268 - High-limit Switch 135¦ F - R0022700 - UPC - 052337011938 - 47-295-1268 | 41 | $65.34 | $32.67 |
|
|
| 47-295-1270 - High-limit Switch, 150¦ F - R0023000 - UPC - 052337011945 - 47-295-1270 | 42 | $65.34 | $32.67 |
|
|
| 47-319-1027 - 3064 Pres. Sw., 25A, SPNO, 3/16 Inch Comp - 3064 - 47-319-1027 | 37 | $72.26 | $36.13 |
|
|
| 47-295-1656 - Redundant High-limit, 275¦ F - R0012800 - 47-295-1656 | 39 | $72.60 | $36.30 |
|
|
| 47-295-1200 - Flange, 2 Inch - 10573500 - UPC - 523370004442 - 47-295-1200 | 69 | $100.44 | $50.22 |
|
|
| 47-295-1454 - Siphon Loop Assembly Kit - R0057800 - UPC - 052337012324 - 47-295-1454 | 38 | $110.38 | $55.19 |
|
|
| 47-295-1428 - Pilot Generator - W0036901 - UPC - 052337027083 - 47-295-1428 | 3 | $112.64 | $56.32 |
|
|
| 47-295-1468 - High-Limit Switch Wire Harness - 10419300 - UPC - 052337000062 - 47-295-1468 | 46 | $114.44 | $57.22 |
|
|
| 47-295-1414 - Temperature Sensor - R0011800 - UPC - 052337011617 - 47-295-1414 | 28 | $151.78 | $75.89 |
|
|
| 47-295-1426 - Pilot Burner, LP - R0096600 - UPC - 052337012676 - 47-295-1426 | 2 | $197.98 | $98.99 |
|
|
| 47-295-1424 - Pilot Burner, Natural - R0096700 - UPC - 052337012683 - 47-295-1424 | 2 | $197.98 | $98.99 |
|
|
| 47-295-1720 - Main Burner Pilot Assembly, Natural - R0099100 - UPC - 523370129350 - 47-295-1720 | 1 | $242.50 | $121.25 |
|
|
| 47-295-1722 - Main Burner Pilot Assembly, LP - R0099200 - UPC - 052337012942 - 47-295-1722 | 1 | $242.50 | $121.25 |
|
|
| 47-295-1652 - Temperature Control - R0058200 - UPC - 052337012355 - 47-295-1652 | 21 | $251.86 | $125.93 |
|
|
| 47-295-1354 - Flange and Gasket Assembly (Set of 2) - R0055000 - UPC - 052337012249 - 47-295-1354 | 68 | $295.00 | $147.50 |
|
|
| 47-295-1474 - Return Header - R0058300 - UPC - 052337012362 - 47-295-1474 | 62 | $309.02 | $154.51 |
|
|
| 47-295-1446 - Gas Valve, LP - R0096900 - UPC - 052337012690 - 47-295-1446 | 15 | $551.38 | $275.69 |
|
|
| 47-295-1444 - Gas Valve, Natural - R0096400 - UPC - 523370126526 - 47-295-1444 | 15 | $551.38 | $275.69 |
|
|
| 47-295-1476 - Return Header, Bronze - R0054600 - UPC - 052337012201 - 47-295-1476 | 62 | $639.82 | $319.91 |
|
|
| 47-295-1470 - Inlet/Outlet Header, 2 Inch - R0056400 - 47-295-1470 | 61 | $740.52 | $370.26 |
|
|
| 47-295-1472 - Inlet/Outlet Header, Bronze, 2 Inch - R0016800 - UPC - 052337011846 - 47-295-1472 | 61 | $1,329.22 | $664.61 |
|
|
| 47-295-1506 - Heat Exchanger Tube Assembly, 125 - R0018101 - UPC - 523370118538 - 47-295-1506 | 86 | $1,467.54 | $733.77 |
|
|
| 47-295-1508 - Heat Exchanger Tube Assembly, 175 - R0018102 - UPC - 523370118606 - 47-295-1508 | 86 | $1,734.14 | $867.07 |
|
|
| 47-295-1510 - Heat Exchanger Tube Assembly, 250 - R0018103 - UPC - 052337011877 - 47-295-1510 | 86 | $2,005.20 | $1,002.60 |
|
|
| 47-295-1512 - Heat Exchanger Tube Assembly, 325 - R0018104 - UPC - 052337011884 - 47-295-1512 | 86 | $2,280.12 | $1,140.06 |
|
|
| 47-295-1514 - Heat Exchanger Tube Assembly, 400 - R0018105 - UPC - 052337011891 - 47-295-1514 | 86 | $2,497.96 | $1,248.98 |
|
