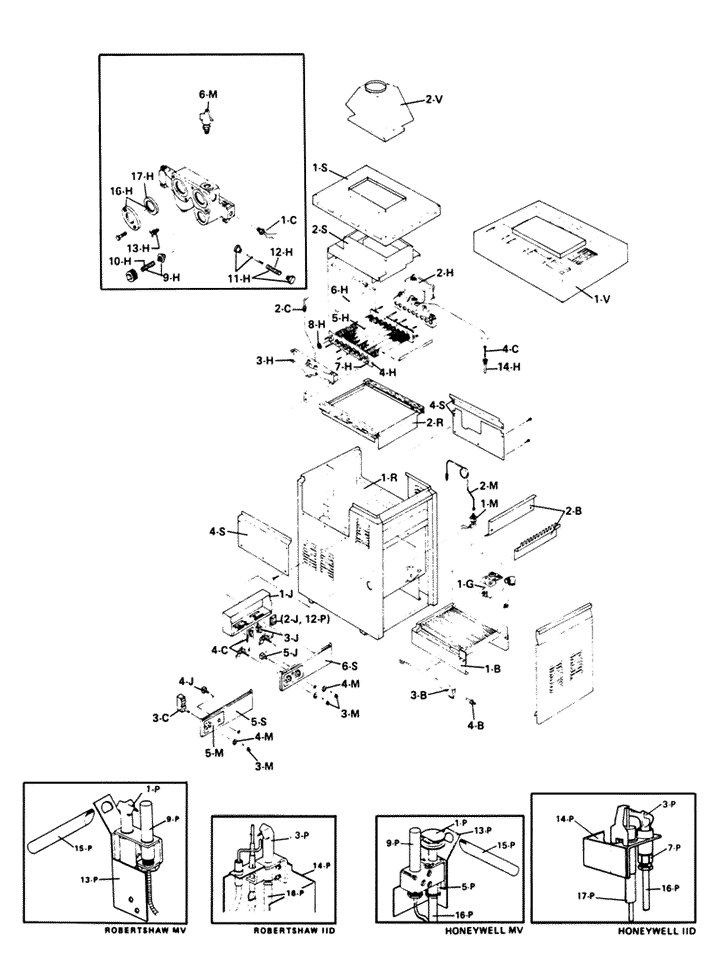

Raypak WHG - 405A

Raypak WHG - 405A

Item Key Retail Price Quantity
47-197-1018 - Sensor Clip - 300203 - 47-197-1018 15-H $6.18 $3.09
47-197-1418 - SPRING-UG RETAINER - 850254 - UPC - 840891029915 - 47-197-1418 10-H $12.38 $6.19
47-197-1615 - SPRING-BYPASS - 850253 - UPC - 840891029922 - 47-197-1615 12-H $13.60 $6.80
47-197-1640 - TUBE-CUT 1/4 OD X 32 ALUM - 400607 - UPC - 840891009832 - 47-197-1640 16-P $14.78 $7.39
47-197-1232 - VALVE-DRAIN 1/8 X STRAIGHT - 500719 - UPC - 840891030584 - 47-197-1232 13-H $14.78 $7.39
47-197-1032 - T-Stat Knob Stop Raypak - 006886F - UPC - 840891005193 - 47-197-1032 4-M $18.36 $9.18
47-197-1246 - PILOT ORIFICE N MV-KIT - 003901F - UPC - 840891007074 - 47-197-1246 5-P $19.54 $9.77
47-197-1308 - PILOT ORIFICE N IID-KIT - 003903F - UPC - 840891007029 - 47-197-1308 7-P $19.54 $9.77
47-197-1386 - PILOT ORIFICE P IID-KIT - 004308F - UPC - 840891001263 - 47-197-1386 - $19.54 $9.77
305160 - Pilot Mtg Bracket Iid - 305160 14-P $21.72 $10.86
47-197-1618 - SWITCH-TOGGLE SPDT 15A/10A BL - 650760 - 47-197-1618 5-J $34.32 $17.16
47-197-1436 - GASKET HDR FLANGE 2 Inch (Pkg of 2) - 800080B - UPC - 840891001430 - 47-197-1436 - $35.48 $17.74
47-197-1434 - GASKET HDR FLANGE 1-1/2-B/PAK - 062236B - UPC - 840891002680 - 47-197-1434 17-H $38.88 $19.44
47-197-1026 - Toggle Switch Raypak SPST - 650761 - 47-197-1026 4-J $39.10 $19.55
47-197-1200 - BURNER - 301210 - 47-197-1200 3-B $39.10 $19.55
47-197-1414 - GASKET HT EX 3/4 ID FLA-B/PAK - 800014B - UPC - 840891001461 - 47-197-1414 8-H $52.30 $26.15
47-197-1248 - PILOT ORIFICE P MV-KIT - 003902F - UPC - 840891008644 - 47-197-1248 - $54.14 $27.07
47-197-1420 - BYPASS VALVE 105A-405-B/PAK - 062235B - UPC - 840891002130 - 47-197-1420 11-H $58.56 $29.28
003768F - Access Panel 185a-405a-Ki - 003768F 4-S $64.82 $32.41
47-197-1444 - THERMOSTAT AUTO RESET13-B/PAK - 600892B - UPC - 840891001393 - 47-197-1444 1-C $72.96 $36.48
47-197-1446 - THERMOSTAT AUTO RESET14-B/PAK - 600893B - UPC - 840891001409 - 47-197-1446 2-C $72.96 $36.48
003769F - Control Panel 185a-Kit - 003769F 5-S $82.12 $41.06
003770F - Control Panel 265a-Kit - 003770F 5-S $82.12 $41.06
003771F - Control Panel 335a-Kit - 003771F 5-S $82.12 $41.06
003772F - Control Panel 405a-Kit - 003772F 5-S $82.12 $41.06
003777F - Control Panel 265a Dual-Kit - 003777F 6-S $85.52 $42.76
003778F - Control Panel 335a Dual-Kit - 003778F 6-S $85.52 $42.76
003779F - Control Panel 405a Dual-Kit - 003779F 6-S $85.52 $42.76
47-197-1400 - WIRE HIGH TENSION-B/PAK - 002654B - UPC - 840891004554 - 47-197-1400 17-P $85.64 $42.82
003776F - Control Panel 185a Dual-K - 003776F 6-S $92.58 $46.29
004008F - Wire Harness Iid - 004008F - $96.04 $48.02
47-197-1424 - SENSOR WELL 105A-405-KIT - 003765F - UPC - 840891001225 - 47-197-1424 14-H $100.58 $50.29
062237B - PRES. SWITCH 151/153/155A-403B - 062237B - 062237B 1-M $106.40 $53.20
47-197-1594 - CARR BOLT 181/183/185/R18-KIT - 001303F - 47-197-1594 7-H $108.38 $54.19
47-197-1250 - THERMOCOUPLE 35 750MV-B/PAK - 600019B - UPC - 840891002574 - 47-197-1250 9-P $114.88 $57.44
47-197-1416 - UNATHERM GOV 155B-405-B/PAK - 062234B - UPC - 840891000600 - 47-197-1416 9-H $115.34 $57.67
002028F - Brnr Sp/Hldown 183/183a-K - 002028F 2-B $120.34 $60.17
002064F - Pilot 333-403 E11 Pro-Kit - 002064F - $124.94 $62.47
002066F - Jacket Top 183/183a-Kit - 002066F 1-S $135.42 $67.71
002029F - Brnr Sp/Hldown 263/263a-K - 002029F 2-B $135.42 $67.71
47-197-0499 - PILOT NATURAL/PROPANE IID - 002003F - 47-197-0499 3-P $137.56 $68.78
47-197-1430 - FLANGE IN/OUT 1-1/2 & 2-KIT - 003766F - UPC - 840891002284 - 47-197-1430 16-H $143.88 $71.94
002030F - Brnr Sp/Hldown 333/333a-K - 002030F 2-B $149.36 $74.68
002067F - Jacket Top 263/263a-Kit - 002067F 1-S $149.36 $74.68
002071F - Flue Collector 263/263a-K - 002071F 2-S $151.68 $75.84
002072F - Flue Collector 333/333a-K - 002072F 2-S $155.18 $77.59
004693F - Raypak Lp-Nat Convert Kit - 004693F - $155.18 $77.59
002073F - Flue Collector 403/403a-K - 002073F 2-S $159.82 $79.91
47-197-1244 - PILOT MV PRO-B/PAK - 600575B - UPC - 840891004394 - 47-197-1244 - $175.72 $87.86
002068F - Jacket Top 333/333a-Kit - 002068F 1-S $175.98 $87.99
002074F - Door 183a-Kit - 002074F 3-S $178.30 $89.15
47-197-1242 - PILOT MV NAT-B/PAK - 600525B - UPC - 840891002260 - 47-197-1242 1-P $182.42 $91.21
002458F - Ht Ex Tube 333/333a Pool- - 002458F 5-H $182.94 $91.47
002031F - Brnr Sp/Hldown 403/403a-K - 002031F 2-B $186.42 $93.21
004691F - Pro To Nat Standing Pilot - 004691F - $187.58 $93.79
002069F - Jacket Top 403/403a-Kit - 002069F 1-S $189.92 $94.96
002459F - Ht Ex Tube 403/403a Pool- - 002459F 5-H $206.18 $103.09
002075F - Door 263a-Kit - 002075F 3-S $209.64 $104.82
002076F - Door 333a-Kit - 002076F 3-S $214.30 $107.15
002077F - Door 403a-Kit - 002077F 3-S $236.26 $118.13
003783F - Convert Sgl To Dualstatst - 003783F - $238.58 $119.29
003711 - Stackless Top 185a Raypak - 003711 1-V $255.98 $127.99
47-197-1282 - THERMOSTAT 151 Cal III & Spa Pak, - 600827B - UPC - 840891000877 - 47-197-1282 3-C $260.68 $130.34
003713 - Stackless Top 335a Raypak - 003713 1-V $286.18 $143.09
003714 - Stackless Top 405a Raypak - 003714 1-V $347.28 $173.64
47-197-1390 - ELEC IGN W/LOCK-B/PAK - 004818B - UPC - 840891000976 - 47-197-1390 - $351.24 $175.62
001295F - Ref Block 183/183a-Kit - 001295F 1-R $372.84 $186.42
002024F - Tray/Man 183/183a W/O B-K - 002024F - $389.10 $194.55
003712 - Stackless Top 265a Raypak - RAY-151-5794 - STACKLESS TOP VERSA 265A/265B - 003712 1-V $248.86 $199.47
002025F - Tray/Man 263/263a W/O B-K - 002025F - $442.30 $221.15
001297F - Ref Block 333/333a-Kit - 001297F 1-R $453.90 $226.95
001298F - Ref Block 403/403a-Kit - 001298F 1-R $482.96 $241.48
003767F - Control Box 185a-405a Iid - 003767F 1-J $516.40 $258.20
47-197-1388 - ELEC IGN W/O LOCK-B/PAK - 004817B - UPC - 840891000556 - 47-197-1388 2-J $532.72 $266.36
47-197-1278 - GAS VALVE IID NAT POOL-KIT - 003900F - UPC - 840891000310 - 47-197-1278 - $536.92 $268.46
004307F - Control Box 185-405 Iid P - 004307F - $537.30 $268.65
47-197-1368 - GAS VALVE IID PRO POOL-KIT - 004306F - UPC - 840891000631 - 47-197-1368 - $546.84 $273.42
47-197-1210 - GAS VALVE MV NAT POOL-KIT - 003898F - UPC - 840891000587 - 47-197-1210 1-G $577.84 $288.92
47-197-1212 - GAS VALVE MV PRO POOL-KIT - 003899F - UPC - 840891000570 - 47-197-1212 - $577.84 $288.92
