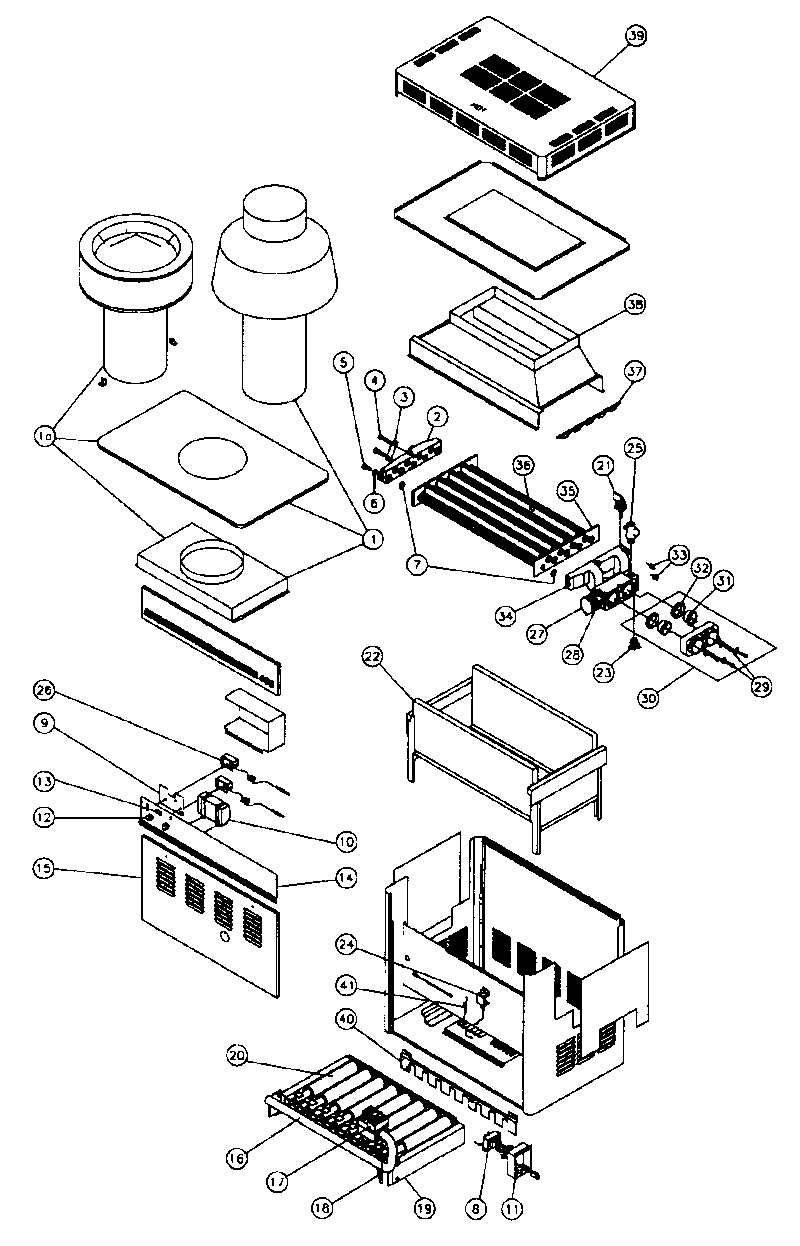

Purex MINIMAX XL

Purex MINIMAX XL

Item Key Retail Price Quantity
070551 - Bushing 1/2 - 070551 - $7.88 $3.94
070715 - Plastic Mounting Bracket - 070715 - $7.88 $3.94
073725 - Bolt 5/16 - 18 X 3/4 - 073725 - $7.88 $3.94
47-110-1474 - Therm. Knob Stopper - 470414 - UPC - 788379697488 - 47-110-1474 - $15.04 $7.52
47-110-1212 - Bushing, Heater Flange Gasket - 70544 - UPC - 788379696269 - 47-110-1212 32 $15.74 $7.87
47-110-1312 - GASKET FLOW VALVE MX - 74015 - UPC - 788379696368 - 47-110-1312 28 $17.14 $8.57
47-110-1214 - Sleeve, Heater Flange Gasket, 2 Inch - 71895 - UPC - 788379696160 - 47-110-1214 31 $30.78 $15.39
47-110-1506 - Switch Rocker, Single Pole & Double Throw - 470186 - UPC - 788379696276 - 47-110-1506 13 $33.02 $16.51
47-110-1472 - Thermostat Knob - 470184 - UPC - 788379696450 - 47-110-1472 12 $33.28 $16.64
47-110-1356 - Presslite Piezo Ignitor Assembly - 75459 - UPC - 788379696436 - 47-110-1356 24 $40.90 $20.45
47-110-1354 - Thermal Cutoff, Fusible Link - 75173 - UPC - 788379696078 - 47-110-1354 - $41.94 $20.97
47-110-1286 - Wire Kit, Millivolt - 75511 - UPC - 788379606664 - 47-110-1286 - $56.26 $28.13
47-110-1064 - HI LIMIT SAFETY SWITCH - 71017 - UPC - 788379696092 - 47-110-1064 33 $73.84 $36.92
47-110-1530 - BULB SENSOR THERM MMXPLS - 470180 - UPC - 788379696177 - 47-110-1530 - $73.86 $36.93
47-110-1378 - PILOT TUBE BENT 250/300I - 75192 - UPC - 788379606350 - 47-110-1378 18 $104.90 $52.45
47-110-1380 - PILOT TUBE BENT 350/400I - 75193 - UPC - 788379606367 - 47-110-1380 18 $104.90 $52.45
47-110-1360 - Electrode Assembly - 75461 - UPC - 788379696870 - 47-110-1360 41 $108.26 $54.13
47-110-1522 - SWITCH PRESSURE MMXPLS - 470190 - UPC - 788379696108 - 47-110-1522 21 $113.44 $56.72
47-110-1050 - TRANSFORMER W/CIRCUIT BKR, DUAL VOLTAGE - 471360 - UPC - 788379696115 - 47-110-1050 8 $115.54 $57.77
47-110-1340 - Power Element, Flow-Valve - 470178 - UPC - 788379696146 - 47-110-1340 - $116.26 $58.13
47-110-1020 - Pilot Generator - 71515 - UPC - 788379605506 - 47-110-1020 - $172.26 $86.13
47-110-1520 - Burner W/Pilot Bracket - 470550 - UPC - 788379696542 - 47-110-1520 20A $187.92 $93.96
47-110-1382 - Burner, Models 150,200,250,300,350,400 - 70230 - UPC - 788379604868 - 47-110-1382 20 $191.30 $95.65
073862 - Flue Collector - 073862 38 $198.84 $99.42
073863 - Flue Collector - 073863 38 $198.84 $99.42
47-110-1310 - FLOW VLV ASY MMX PLAS - 471424 - UPC - 788379603519 - 47-110-1310 27 $236.88 $118.44
47-110-1502 - Circuit Board Thermostat, IID Model - 470179 - UPC - 788379696122 - 47-110-1502 9 $330.32 $165.16
47-110-1046 - Module Natural Gas - 73584 - UPC - 788379696139 - 47-110-1046 10 $351.24 $175.62
47-110-1300 - HEAD RETURN MINI-MAX - 70994 - UPC - 788379696429 - 47-110-1300 2 $381.88 $190.94
47-110-1048 - Module Propane Gas - 73585 - UPC - 788379696283 - 47-110-1048 10 $526.48 $263.24
47-110-1225 - Gas Valve Propane, IID SUB WITH PART 47-110-1364 - Replaced By Part 47-110-1364 - 73999 - UPC - 788379696504 - 47-110-1225 17 $557.42 $278.71
47-110-1362 - Gas Valve Natural, IID - 73998 - UPC - 788379696221 - 47-110-1362 17 $576.22 $288.11
47-110-1368 - Gas Valve Propane,Millivolt, Model 150,400 - 75458 - UPC - 788379696603 - 47-110-1368 17 $709.18 $354.59
47-110-1366 - Gas Valve Natural, Millivolt, Model 150,400 - 75457 - UPC - 788379696313 - 47-110-1366 17 $740.66 $370.33
