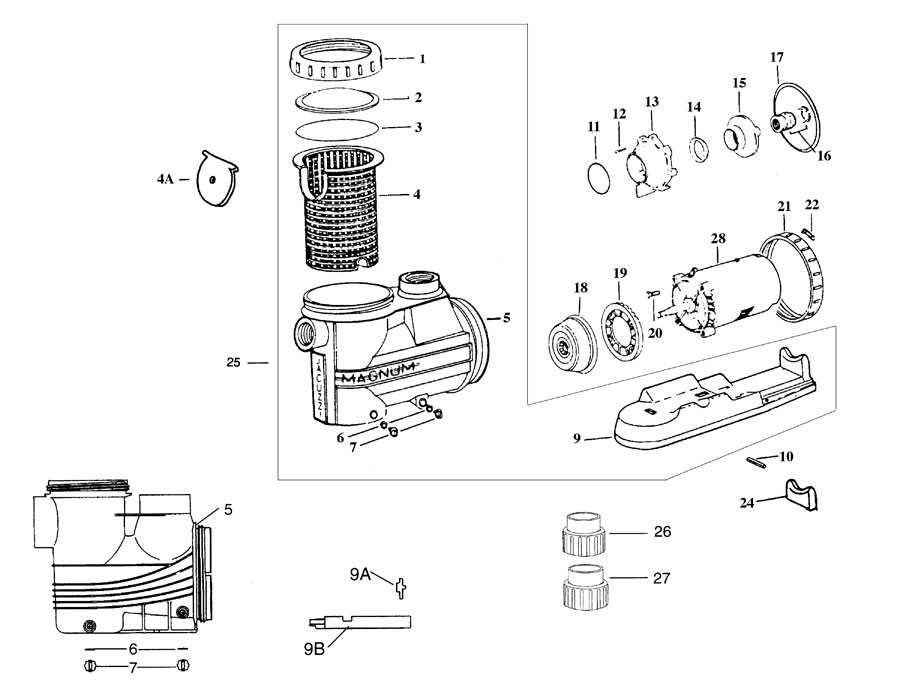

Pool/Spa Pump - Jacuzzi Magnum, Magnum Plus and Magnum Force
PLEASE NOTE: WE DO NOT STOCK JACUZZI PARTS. THEY ARE ALL SPECIAL ORDER, IF THEY ARE EVEN AVAILABLE. ALL JACUZZI ORDERS WILL TAKE 4-6 WEEKS FOR DELIVERY. YOU WILL BE NOTIFIED IF YOU ORDER A PART THAT IS OBSOLETE.
| Item | Key | Retail | Price | Quantity | |
| 17-105-1005 - O-Ring,1/4 Inch Plug (O-39) - 112 - 17-105-1005 | 6 | $3.54 | $1.77 |
|
|
| 35-105-1063 - O-Ring, Square, Diffuser, Magnum (O-462) - O-462 - 35-105-1063 | 11 | $4.36 | $2.18 |
|
|
| 35-105-1015 - O-Ring, Magnum Lid, Pre-89 (O-302) - 434-7470-10 - 35-105-1015 | 3 | $4.90 | $2.45 |
|
|
| 35-105-1140 - Motor Bolt 3/8-16x7/8 Inch (pkg of 4) - 14129324R4 - 35-105-1140 | 20 | $10.86 | $5.43 |
|
|
| 35-105-1360 - RC Series Diffuser Bolt 8-16x1-1/4 - 14420608R2 - 35-105-1360 | 12 | $11.20 | $5.60 |
|
|
| 35-105-1408 - DOWEL PIN 1/4 X 1-1/4 SS - 14423107R - 35-105-1408 | 10 | $11.34 | $5.67 |
|
|
| 35-105-1142 - 8498 MTG NUT RATCHET DRLN - 42286708R - 35-105-1142 | 22 | $11.50 | $5.75 |
|
|
| 35-105-1151 - MOT SUPPORT MAG FORCE - 12112405R - 35-105-1151 | 9A | $13.10 | $6.55 |
|
|
| 35-105-1120 - O-Ring, Seal Plate, Magnum(O-263) - 364-7470 - 35-105-1120 | 17 | $13.38 | $6.69 |
|
|
| 35-105-1010 - O-Ring, Strainer Lid (M,R,P)(O-336) - 358-7470-10 - 35-105-1010 | 3 | $13.56 | $6.78 |
|
|
| 35-105-1080 - Eye Seal, all HH, 1/2-1HP HF - 10146207R - 35-105-1080 | 14 | $22.14 | $11.07 |
|
|
| 35-105-1022 - Flapper Reverse Flow Magnum - 16113510R - 35-105-1022 | 4A | $24.06 | $12.03 |
|
|
| 35-105-1081 - Eye Seal 3HP HF - 10146413R - 35-105-1081 | 14 | $28.96 | $14.48 |
|
|
| 35-105-1153 - MOT BASE MAG FORCE - 12112603R - 35-105-1153 | 9B | $33.74 | $16.87 |
|
|
| 35-105-1005 - Strainer Cover, Clear (M,R,P) - 39257902R - 35-105-1005 | 2 | $46.20 | $23.10 |
|
|
| 35-105-1175 - Diffuser, 1.5HP FR HF - 06016307R - 35-105-1175 | 13 | $46.70 | $23.35 |
|
|
| 35-105-1065 - Diffuser, 1/2HP HH, 1/2-1HP HF - 06015705R - 35-105-1065 | 13 | $46.70 | $23.35 |
|
|
| 35-105-1075 - Diffuser, 3/4-1HP HH - 06016703R - 35-105-1075 | 13 | $46.70 | $23.35 |
|
|
| 35-105-1077 - DIFFUSER MAGNUM 5.53 FIT - 06000806R - 35-105-1077 | 13 | $46.70 | $23.35 |
|
|
| 35-105-1070 - Diffuser, 1.5-3HP HH - 06016517R - 35-105-1070 | 13 | $47.88 | $23.94 |
|
|
| 35-105-1229 - 9716 IMP 5*D W/WR GFN-3 - 05385208R - 35-105-1229 | 15 | $49.98 | $24.99 |
|
|
| 35-105-1085 - Impeller, 1/2HP HH - 05380001R - 35-105-1085 | 15 | $50.00 | $25.00 |
|
|
| 35-105-1090 - Impeller, 2HP HH - 05381801R - 35-105-1090 | 15 | $50.00 | $25.00 |
|
|
| 35-105-1095 - Impeller, 1.5HP HH - 05381900R - 35-105-1095 | 15 | $50.00 | $25.00 |
|
|
| 35-105-1100 - Impeller, 3HP HH - 05382007R - 35-105-1100 | 15 | $50.00 | $25.00 |
|
|
| 35-105-1105 - Impeller, 1HP HH - 05385406R - 35-105-1105 | 15 | $50.00 | $25.00 |
|
|
| 35-105-1110 - Impeller, 3/4HP HH - 05385505R - 35-105-1110 | 15 | $50.00 | $25.00 |
|
|
| 35-105-1112 - IMP 4UMF3 4.80 DIA - 05037304R - 35-105-1112 | 15 | $50.00 | $25.00 |
|
|
| 35-105-1113 - IMP 5UMF3 5.13 DIA - 05037106R - 35-105-1113 | 15 | $50.00 | $25.00 |
|
|
| 35-105-1205 - Impeller 3/4HP FR High Flow - 05380100R - 35-105-1205 | 15 | $50.00 | $25.00 |
|
|
| 35-105-1210 - Impeller 1HP FR High Flow-Kit(Impeller,Seal,Diffuser) - 05380209R - 35-105-1210 | 15 | $50.00 | $25.00 |
|
|
| 35-105-1215 - Impeller 1.5HP FR High Flow - 05380308R - 35-105-1215 | 15 | $50.00 | $25.00 |
|
|
| 35-105-1220 - Impeller 2HP FR High Flow Pre-90 - 05380407R - 35-105-1220 | 15 | $50.00 | $25.00 |
|
|
| 35-105-1225 - Impeller 3HP FR High Flow - 05380506R - 35-105-1225 | 15 | $50.00 | $25.00 |
|
|
| 35-105-1227 - 5URC IMPELLER 3-5/8 w/wr 9718 - 05380605R - 35-105-1227 | 15 | $50.00 | $25.00 |
|
|
| 89-105-1510 - Pump Unions, 1.5 Inch S, (pkg of 2) - 31175608R2 - 89-105-1510 | 26 | $54.74 | $27.37 |
|
|
| 35-105-1185 - Diffuser, 2HP FR, Inch New Inch HF - 06016604R - 35-105-1185 | 13 | $64.08 | $32.04 |
|
|
| 35-105-1135 - Magnum Motor Housing Bracket - 02136802R - 35-105-1135 | 19 | $68.36 | $34.18 |
|
|
| 35-105-1136 - Magnum Seal Plate Lok Nut - 42288605R - 35-105-1136 | 21 | $75.82 | $37.91 |
|
|
| 35-105-1130 - Magnum Seal Plate, 3/4-1HP - 02139301R - 35-105-1130 | 18 | $102.04 | $51.02 |
|
|
| 35-105-1125 - Magnum Seal Plate, 1.5-3HP - 02139202R - 35-105-1125 | 18 | $102.04 | $51.02 |
|
|
| 35-105-1126 - 5MP SEAL HSG 4-9/16FIT 9982 - 02136604R - 35-105-1126 | 18 | $152.16 | $76.08 |
|
|
| 35-105-1131 - SEAL HSG 1=1/2-3HP MAGN 9982 - 02136703R - 35-105-1131 | 18 | $152.16 | $76.08 |
|
|
| 35-105-1132 - SEAL HSG MAGN 2HP 5-5/32F 9982 - 02160901R - 35-105-1132 | 18 | $152.16 | $76.08 |
|
|
| 35-126-1415 - Motor C-Face Thd 1/2HP Sgl Spd 115/230V - B126 - UPC - 663001016984 - 35-126-1415 | 28 | $382.30 | $191.15 |
|
|
| 35-126-1417 - Motor C-Face Thd 3/4HP Sgl Spd 115/230V - B127 - UPC - 786674011886 - 35-126-1417 | 28 | $460.20 | $230.10 |
|
|
| 35-126-1419 - Motor C-Face Thd 1.0HP Sgl Spd 115/230V - B128 - 35-126-1419 | 28 | $506.80 | $273.40 |
|
|
| 35-126-1421 - Motor C-Face Thd 1.5HP Sgl Spd 115/230V - B129 - UPC - 663001404088 - 35-126-1421 | 28 | $642.20 | $321.10 |
|
|
| 35-126-1423 - Motor C-Face Thd 2.0HP Sgl Spd 115/230V - B836 - UPC - 663001194569 - 35-126-1423 | 28 | $827.22 | $413.61 |
|
|
| 35-126-1425 - Motor C-Face Thd 3.0HP Sgl Spd 230V - B131 - UPC - 663001192749 - 35-126-1425 | 27 | $1,150.38 | $575.19 |
|
