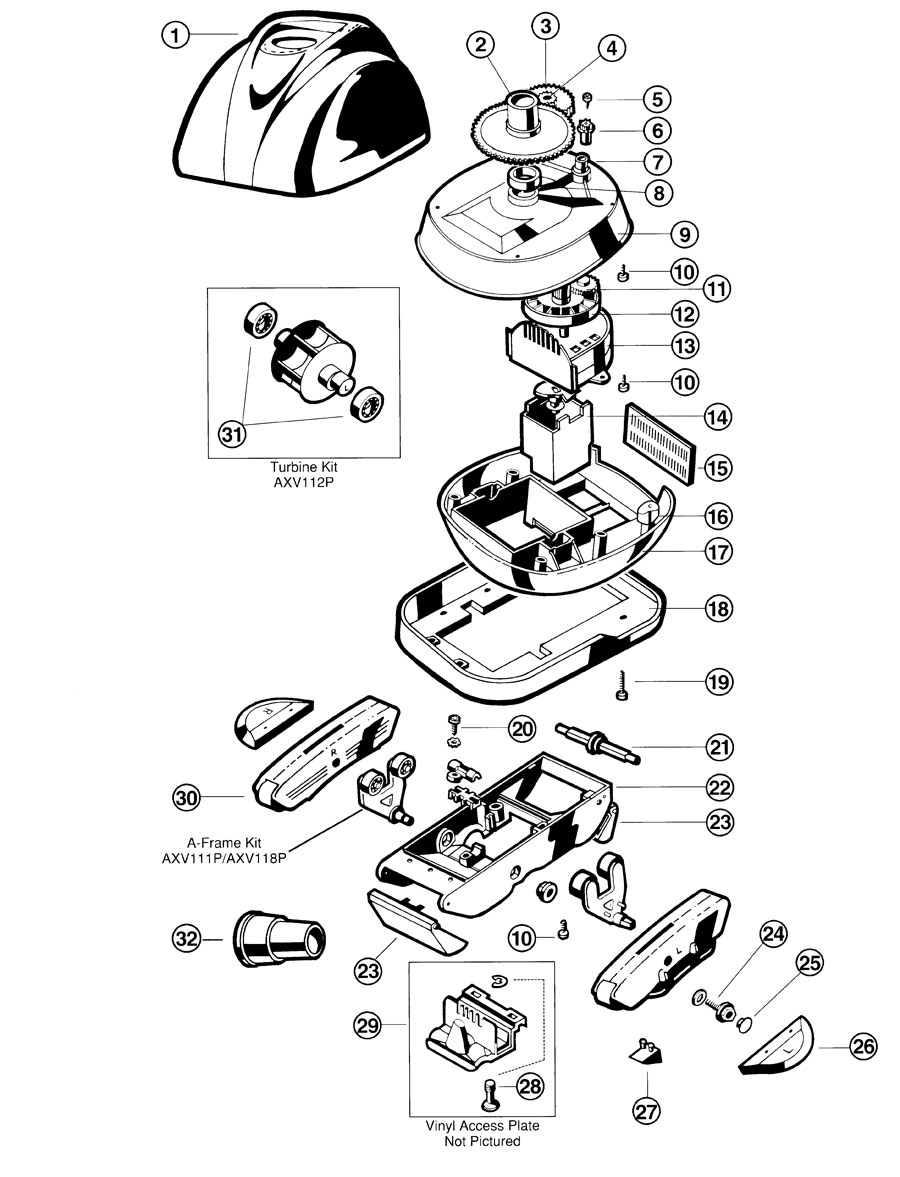

Pool Cleaner - Hayward Navigator Concrete, Desert & Vinyl Model Cleaners
| Item | Key | Retail | Price | Quantity | |
| 87-150-1108 - Screw, Spindle Gear - AXV068 - UPC - 610377212502 - 87-150-1108 | 5 | $4.50 | $2.25 |
|
|
| 87-150-1107 - Shaft, Intermediate Gear - AXV309 - UPC - 610377212922 - 87-150-1107 | 4 | $5.52 | $2.76 |
|
|
| 87-150-1141 - Captive Screw, W/ Clip - AXV314P - UPC - 610377212953 - 87-150-1141 | 28 | $13.20 | $6.60 |
|
|
| BAR32301 - Ranger '97 Hose Cuff - BAR32301 | $20.68 | $10.34 |
|
||
| 87-150-1127 - Screw, Lower Body - AXV313 - UPC - 610377212946 - 87-150-1127 | 20 | $24.10 | $12.05 |
|
|
| 87-150-1133 - Pod Screw Kit, (2 Hex Screws & 2 Washers) - AXV015P - UPC - 610377212229 - 87-150-1133 | 24 | $24.10 | $12.05 |
|
|
| 87-150-1134 - Pod Plug, (6 Pack) - AXV016P - UPC - 610377214483 - 87-150-1134 | 25 | $24.10 | $12.05 |
|
|
| 87-150-1119 - Rear Screen, Burgundy - AXV051ABG - UPC - 610377290852 - 87-150-1119 | 15 | $25.26 | $12.63 |
|
|
| 87-150-1118 - Rear Screen, Black - AXV051ABK - UPC - 610377212359 - 87-150-1118 | 15 | $25.26 | $12.63 |
|
|
| 87-150-1113 - Screw, Upper Body, (6 Pack) - AXV065P - UPC - 610377212472 - 87-150-1113 | 10 | $26.68 | $13.34 |
|
|
| 87-150-1106 - Intermediate Gear - AXV301 - UPC - 610377212854 - 87-150-1106 | 3 | $28.24 | $14.12 |
|
|
| 87-150-1109 - Spindle gear - AXV303 - UPC - 610377212861 - 87-150-1109 | 6 | $28.24 | $14.12 |
|
|
| 87-150-1111 - Cone Gear Bushing - AXV306 - UPC - 610377212885 - 87-150-1111 | 8 | $28.24 | $14.12 |
|
|
| 55-110-4212 - Barrell Assy,Cyclone Micro Dual Swirl,Emer.Cut,White - 965400 - 55-110-4212 | 19 | $28.65 | $14.32 |
|
|
| 87-150-1144 - Variable Throat Assy., White, Vinyl - AXV440 - 87-150-1144 | 29 | $29.04 | $14.52 |
|
|
| 87-150-1145 - Access Cover Assy., Concrete & Desert Models - AXV141 - UPC - 610377212748 - 87-150-1145 | 29 | $29.16 | $14.58 |
|
|
| 87-150-1128 - Flap Adjuster - AXV031B - UPC - 610377212274 - 87-150-1128 | 21 | $29.22 | $14.61 |
|
|
| 87-150-1150 - Skimmer Cone - AXV093CP - UPC - 610377218696 - 87-150-1150 | 32 | $29.76 | $14.88 |
|
|
| 87-150-1121 - Float, (2 Pack) - AXV054P - UPC - 610377212380 - 87-150-1121 | 16 | $30.14 | $15.07 |
|
|
| 87-150-1142 - Variable Throat Assy., White, Concrete - AXV441 - 87-150-1142 | 29 | $33.08 | $16.54 |
|
|
| 87-150-1110 - Bushing, Spindle Gear - AXV066A - UPC - 610377212489 - 87-150-1110 | 7 | $33.44 | $16.72 |
|
|
| 87-150-1114 - Medium Turbine Drive Gear - AXV064A - UPC - 610377290845 - 87-150-1114 | 11 | $33.44 | $16.72 |
|
|
| 87-150-1136 - Wing Kit, White (Right & left wings) - AXV604WHP - UPC - 610377744775 - 87-150-1136 | 26 | $33.48 | $16.74 |
|
|
| 87-150-1135 - Wing Kit, Black (Right & left wings) - AXV604BKP - UPC - 610377744768 - 87-150-1135 | 26 | $34.02 | $17.01 |
|
|
| 87-150-1143 - Variable Throat Assy., Black, Concrete - AXV441BK - 87-150-1143 | 29 | $34.09 | $17.05 |
|
|
| 87-150-1137 - Pod Shoes, Concrete, (4 Pack) - AXV414P - UPC - 610377230742 - 87-150-1137 | 27 | $35.90 | $17.95 |
|
|
| 87-150-1149 - Turbine Bearings, (2 pack) - AXV055P - UPC - 610377212397 - 87-150-1149 | 31 | $36.78 | $18.39 |
|
|
| 87-150-1125 - Bumper, Black - AXV605BKP - UPC - 610377744751 - 87-150-1125 | 18 | $37.54 | $18.77 |
|
|
| 87-150-1250 - Bumper, Light Gray - AXV605LGP - UPC - 610377744737 - 87-150-1250 | 18 | $39.38 | $19.69 |
|
|
| 87-150-1251 - Bumper, White - AXV605WHP - UPC - 610377744744 - 87-150-1251 | 18 | $39.38 | $19.69 |
|
|
| 87-150-1140 - Slotted Santoprene Shoes (4 Pack) - AXV014SP - UPC - 610377212212 - 87-150-1140 | 27 | $40.56 | $20.28 |
|
|
| 87-150-1138 - Pod Shoes, Vinyl, (4 Pack) - AXV413P - UPC - 610377230735 - 87-150-1138 | 27 | $41.44 | $20.72 |
|
|
| 87-150-1115 - Medium Turbine - AXV062C - UPC - 610377212458 - 87-150-1115 | 12 | $42.94 | $21.47 |
|
|
| 87-150-1139 - Pod Shoes, Ceramic, (4 Pack) - AXV014CP - UPC - 610377212175 - 87-150-1139 | 27 | $45.70 | $22.85 |
|
|
| 87-150-1131 - Flap Kit, Black (2 Flaps,Front & Rear Springs) - AXV434BKP - UPC - 610377230391 - 87-150-1131 | 23 | $46.50 | $23.25 |
|
|
| 87-150-1132 - Flap Kit, White (2 Flaps,Front & Rear Springs) - AXV434WHP - UPC - 610377230421 - 87-150-1132 | 23 | $46.50 | $23.25 |
|
|
| 87-150-1117 - Gear Box Assy. - AXV408P - UPC - 610377230377 - 87-150-1117 | 14 | $48.16 | $24.08 |
|
|
| 87-150-1006 - A-Frame Kit(2 A-Frame,Bushings,Saddle,Keeper,Hdwr) - AXV621D - UPC - 610377912594 - 87-150-1006 | $75.58 | $37.79 |
|
||
| 87-150-1130 - Lower Body, White - AXV230DWH - UPC - 610377242622 - 87-150-1130 | 22 | $76.40 | $38.20 |
|
|
| 87-150-1129 - Lower Body, Black - AXV230DBK - UPC - 610377242653 - 87-150-1129 | 22 | $77.26 | $38.63 |
|
|
| 87-150-1008 - Turbine Kit (Main Turbine & 2 Bearings) - AXV112P - UPC - 610377212663 - 87-150-1008 | 33 | $78.28 | $39.14 |
|
|
| 87-150-1004 - Medium Turbine/Spindle Gear Kit, Vinyl - AXV079VP - UPC - 610377212588 - 87-150-1004 | $80.34 | $40.17 |
|
||
| 87-150-1012 - Pod Kit - AXV417WHP - UPC - 610377230599 - 87-150-1012 | 30 | $80.72 | $40.36 |
|
|
| 87-150-1116 - Medium Turbine Case w/Axle - AXV009 - UPC - 610377213806 - 87-150-1116 | 13 | $81.04 | $40.52 |
|
|
| 87-150-1013 - Pod Kit,Black(Right & Left Pods,Plugs,Screws & Washers) - AXV417BKP - UPC - 610377230568 - 87-150-1013 | 30 | $93.30 | $46.65 |
|
|
| 87-150-1122 - Lower Middle Body, White - AXV050CWH - UPC - 610377212342 - 87-150-1122 | 17 | $132.92 | $66.46 |
|
|
| 87-150-1105 - Cone Gear, Clear - AXV070 - UPC - 610377510240 - 87-150-1105 | 2 | $147.36 | $73.68 |
|
|
| 87-150-1112 - Upper Middle Body, White - AXV060WH - UPC - 610377212441 - 87-150-1112 | 9 | $152.98 | $76.49 |
|
|
| 87-150-1103 - Top Cover, Navigator, Black, Vinyl - AXV416BK - 87-150-1103 | 1 | $446.82 | $223.41 |
|
|
| 87-150-1102 - Top Shell,Navigator,Concrete,Light Gray(Exchange Only) - AXV411LG - UPC - 610377230636 - 87-150-1102 | 1 | $461.90 | $230.95 |
|
|
| 87-150-1104 - Top Cover, Navigator, Burgundy, Vinyl - AXV416BG - 87-150-1104 | 1 | $465.86 | $232.93 |
|
